Phillips-head stepped screws with a cross drive and stepped shank for location, spacing and controlled assembly. The notes below focus on the features that need to be confirmed before a drawing is approved.
Stepped shank and cross recess

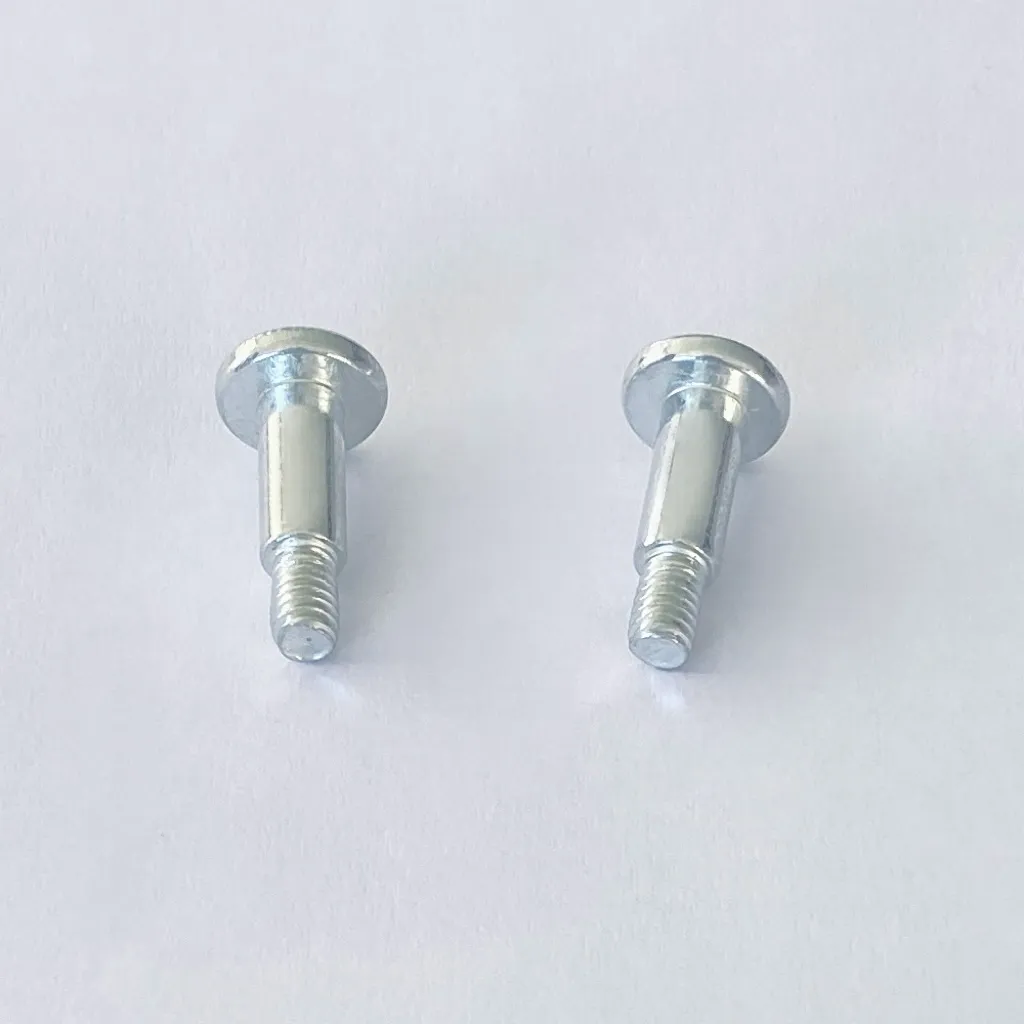

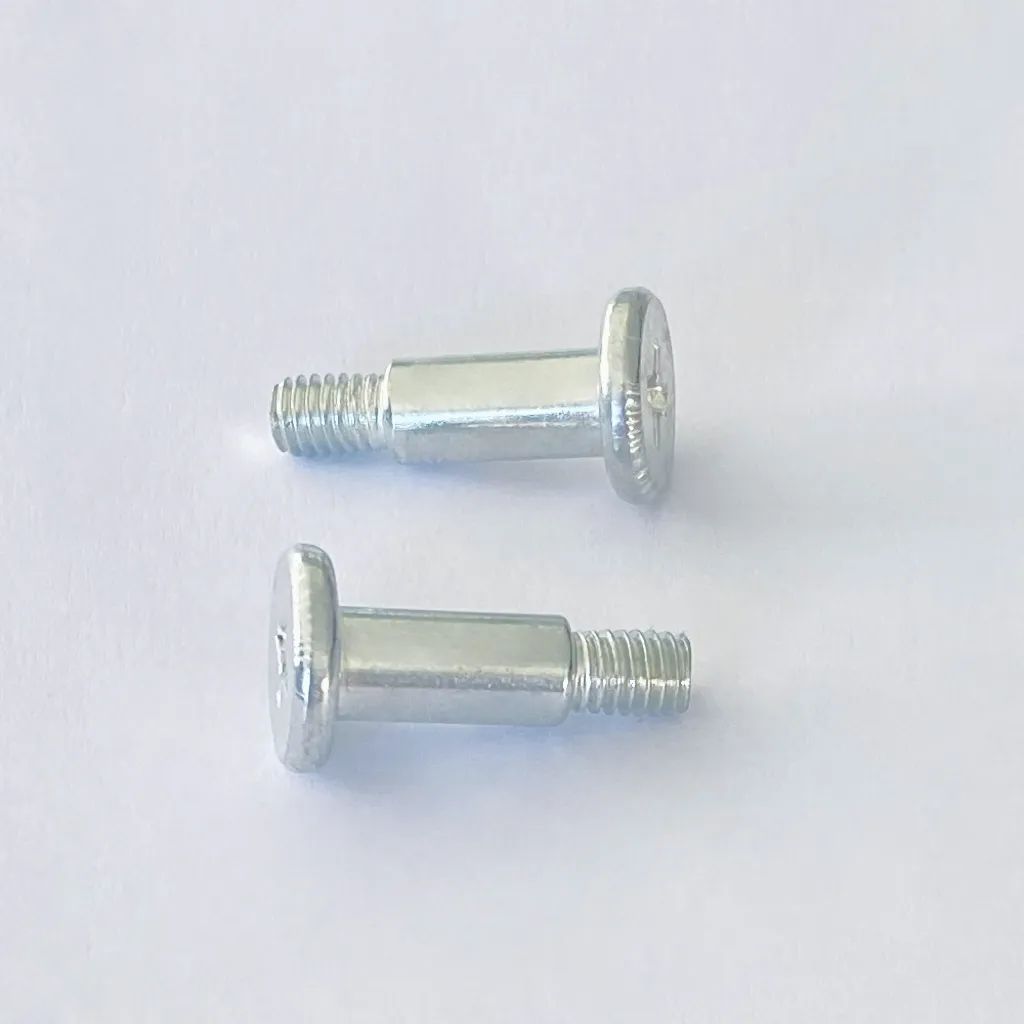

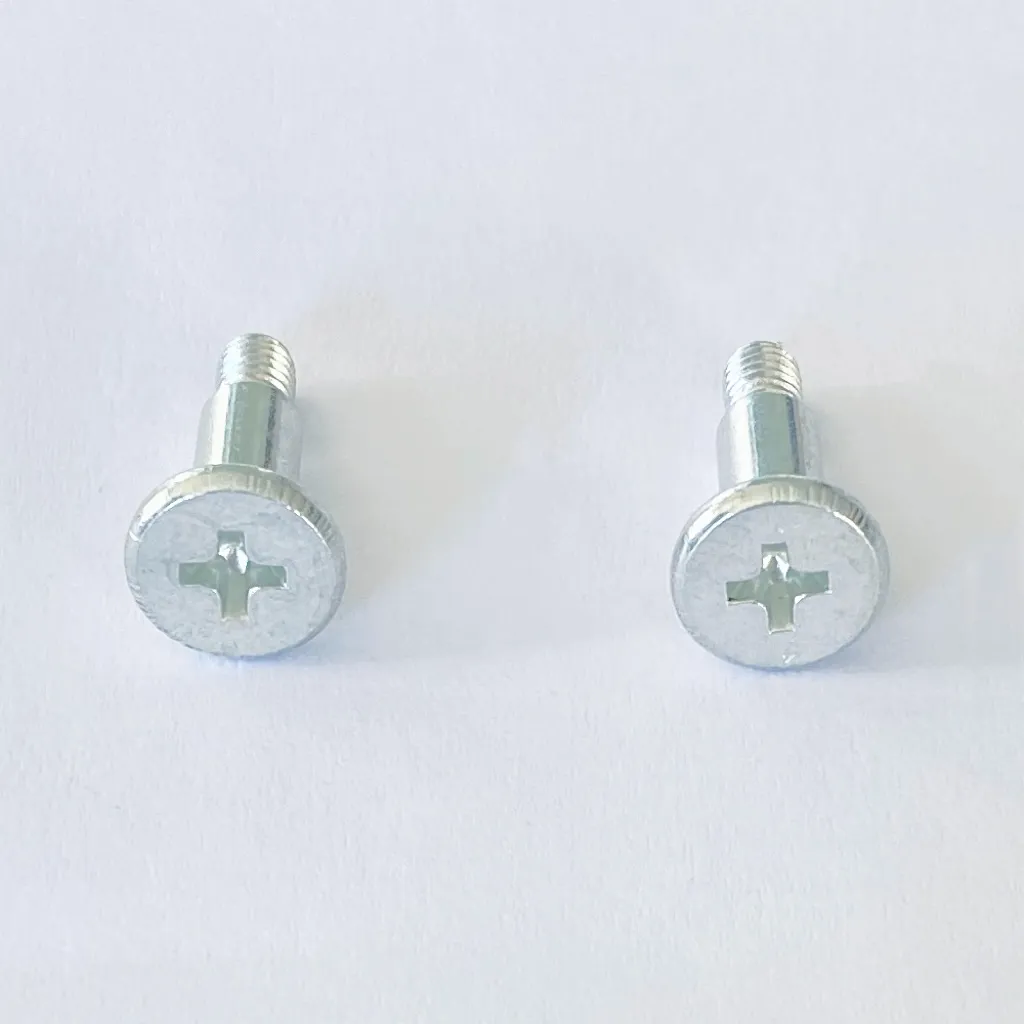

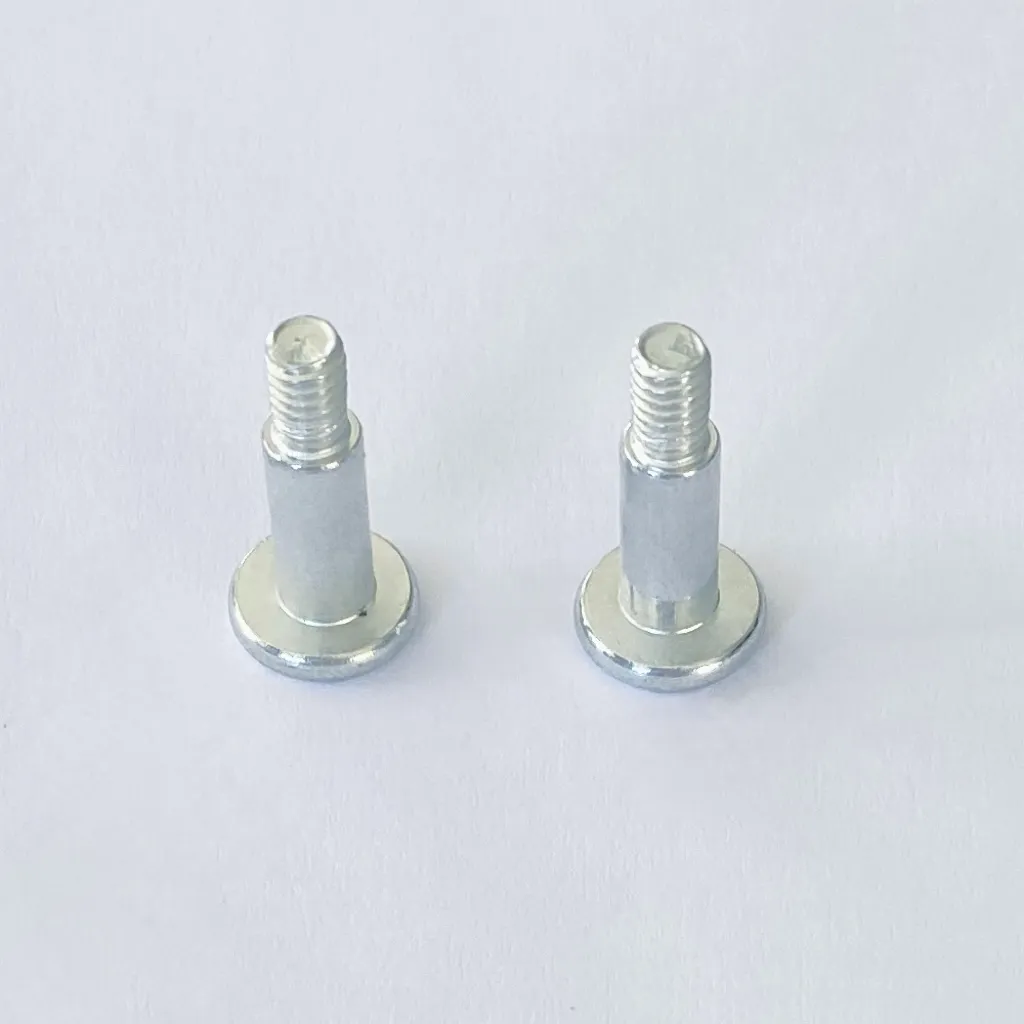

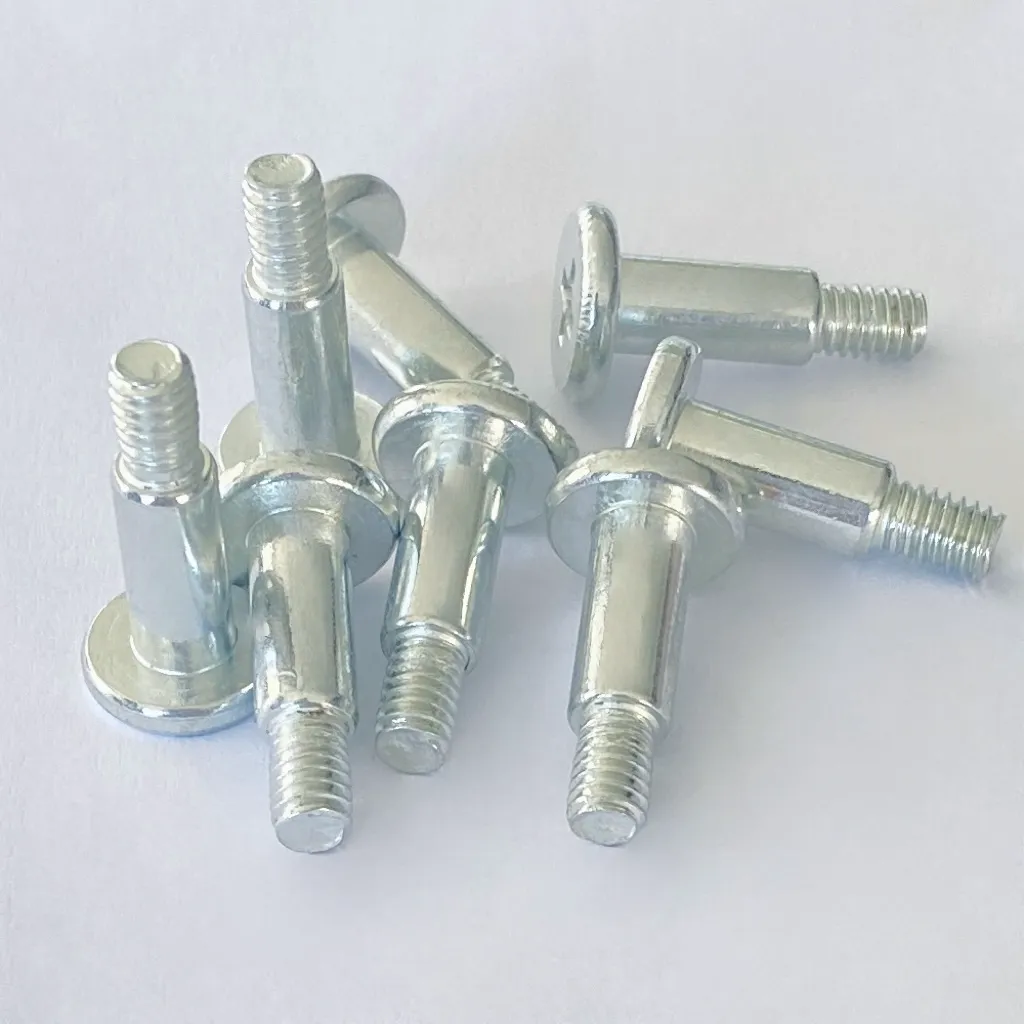

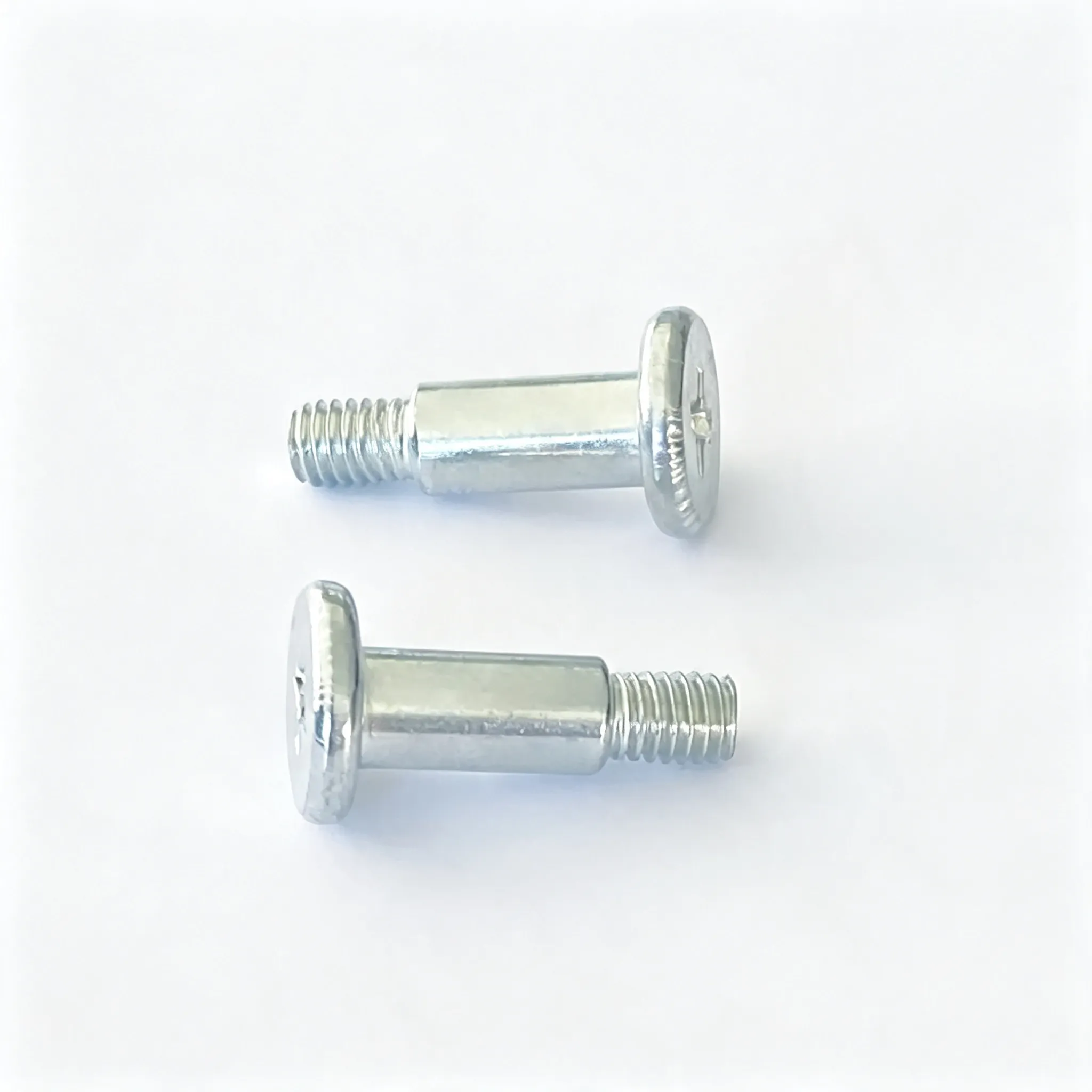

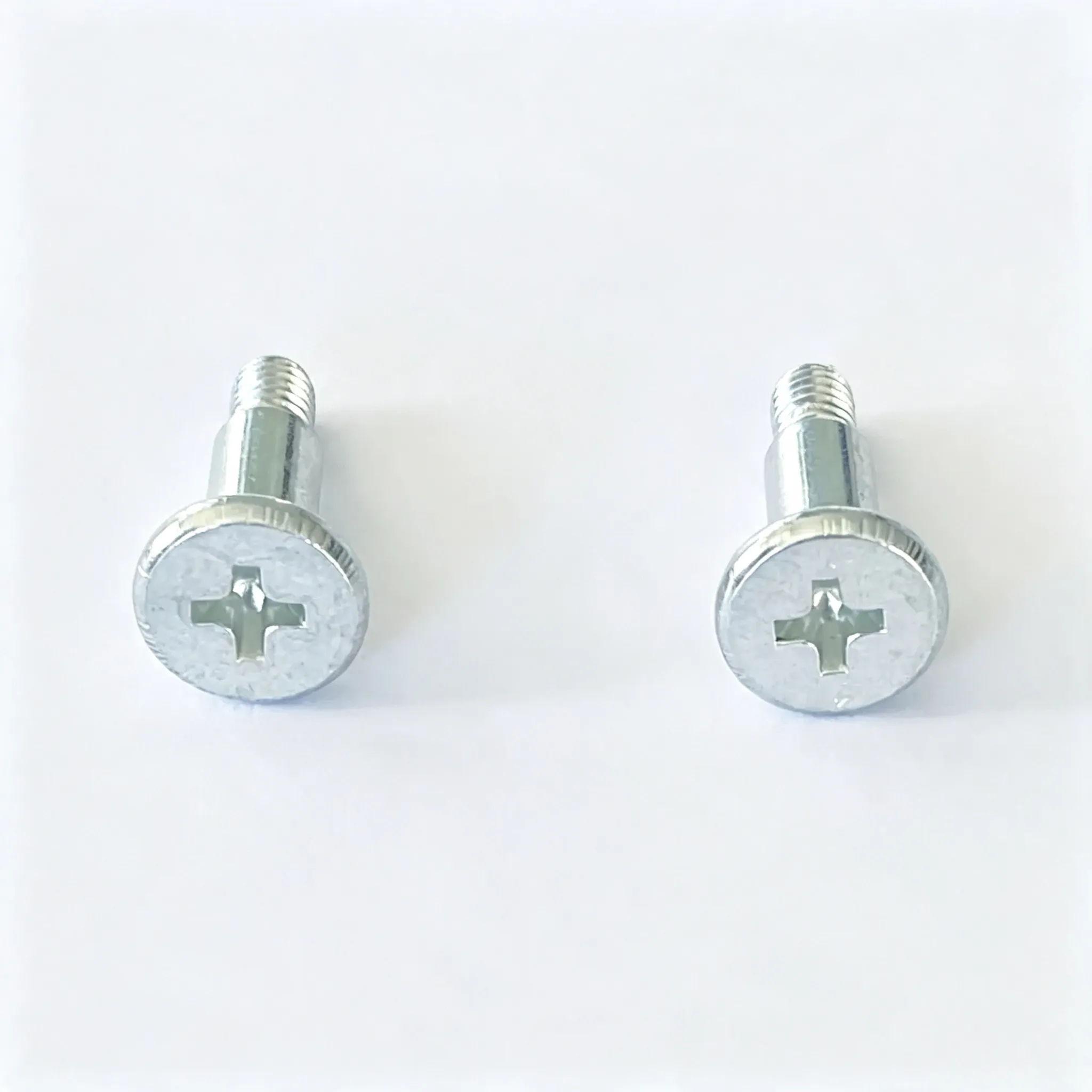

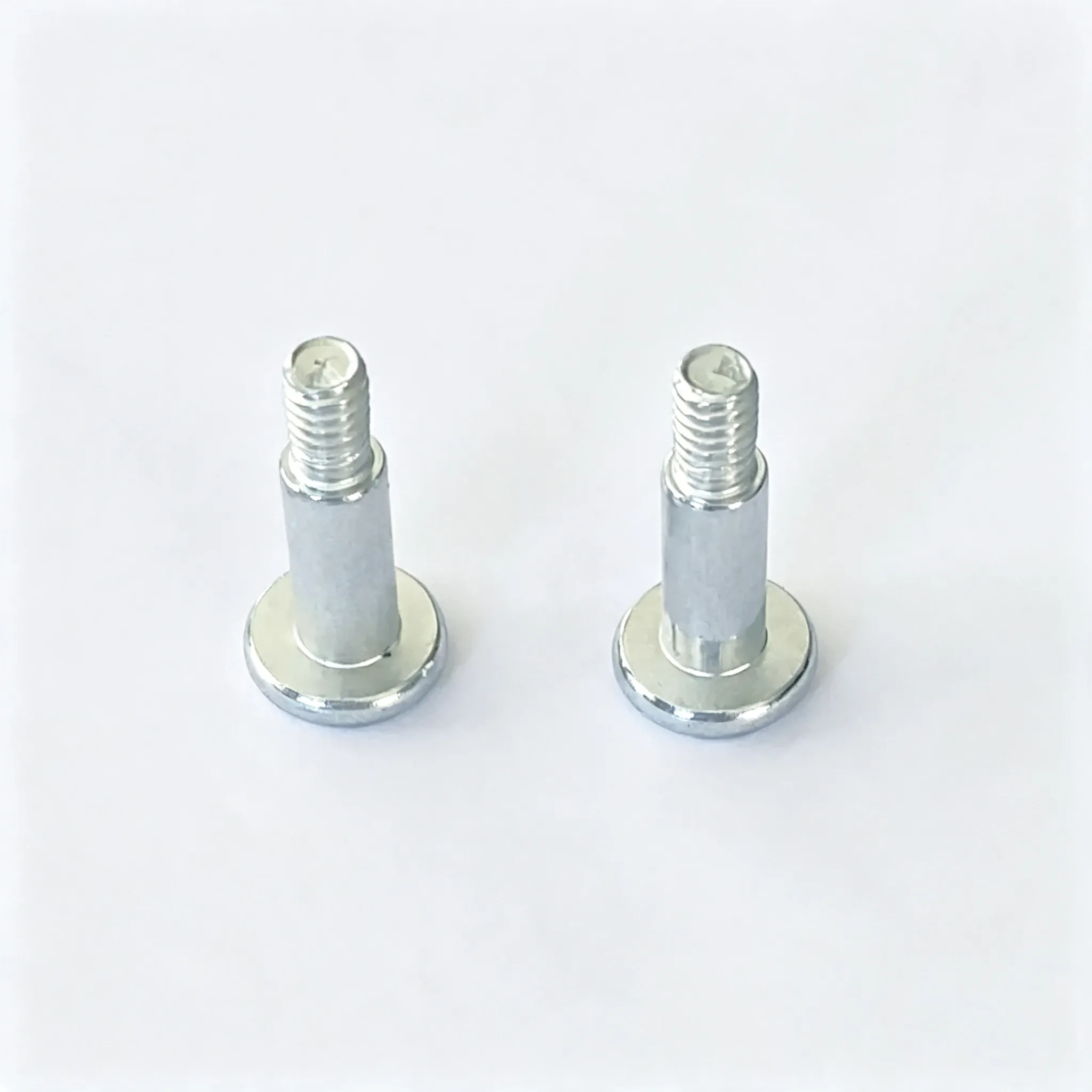

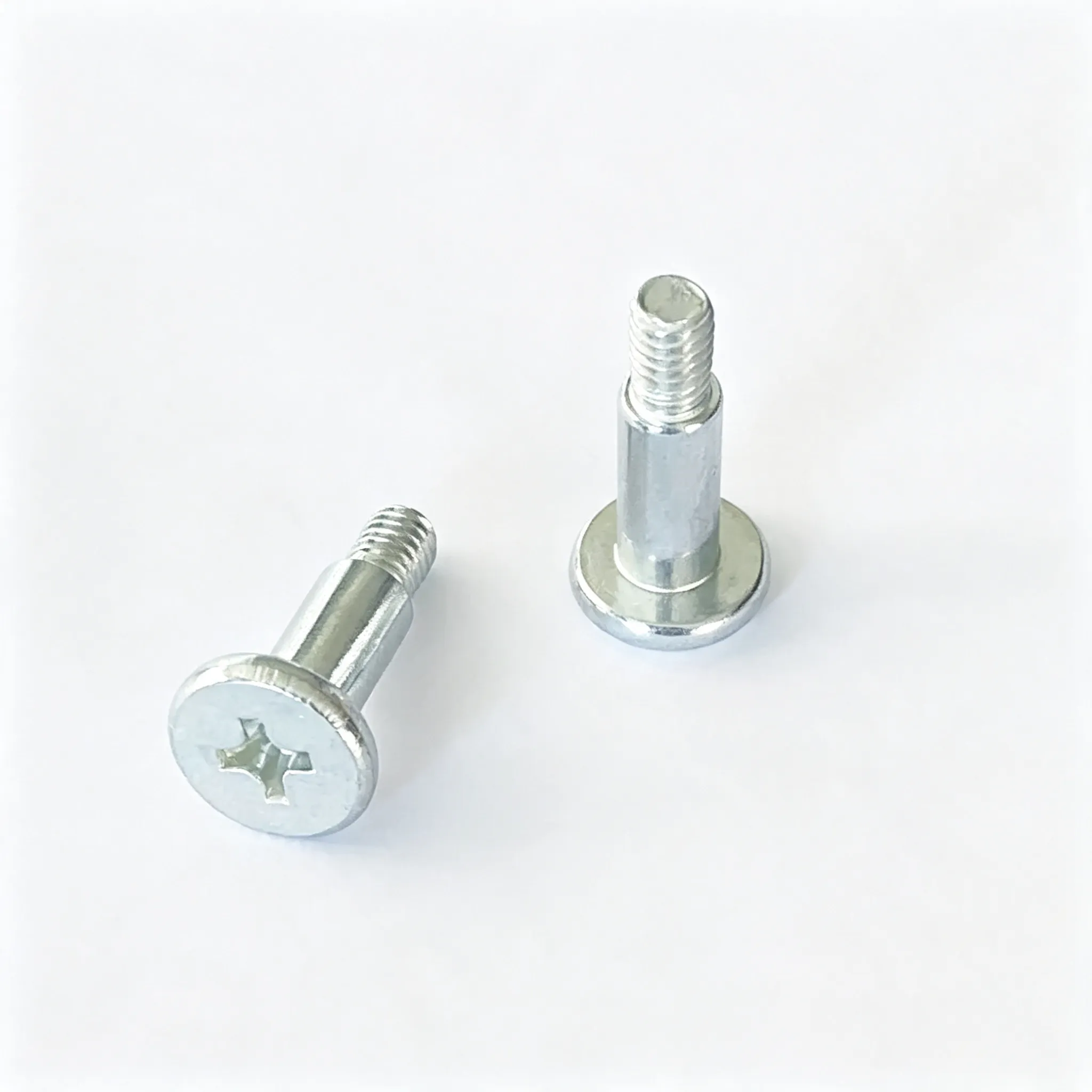

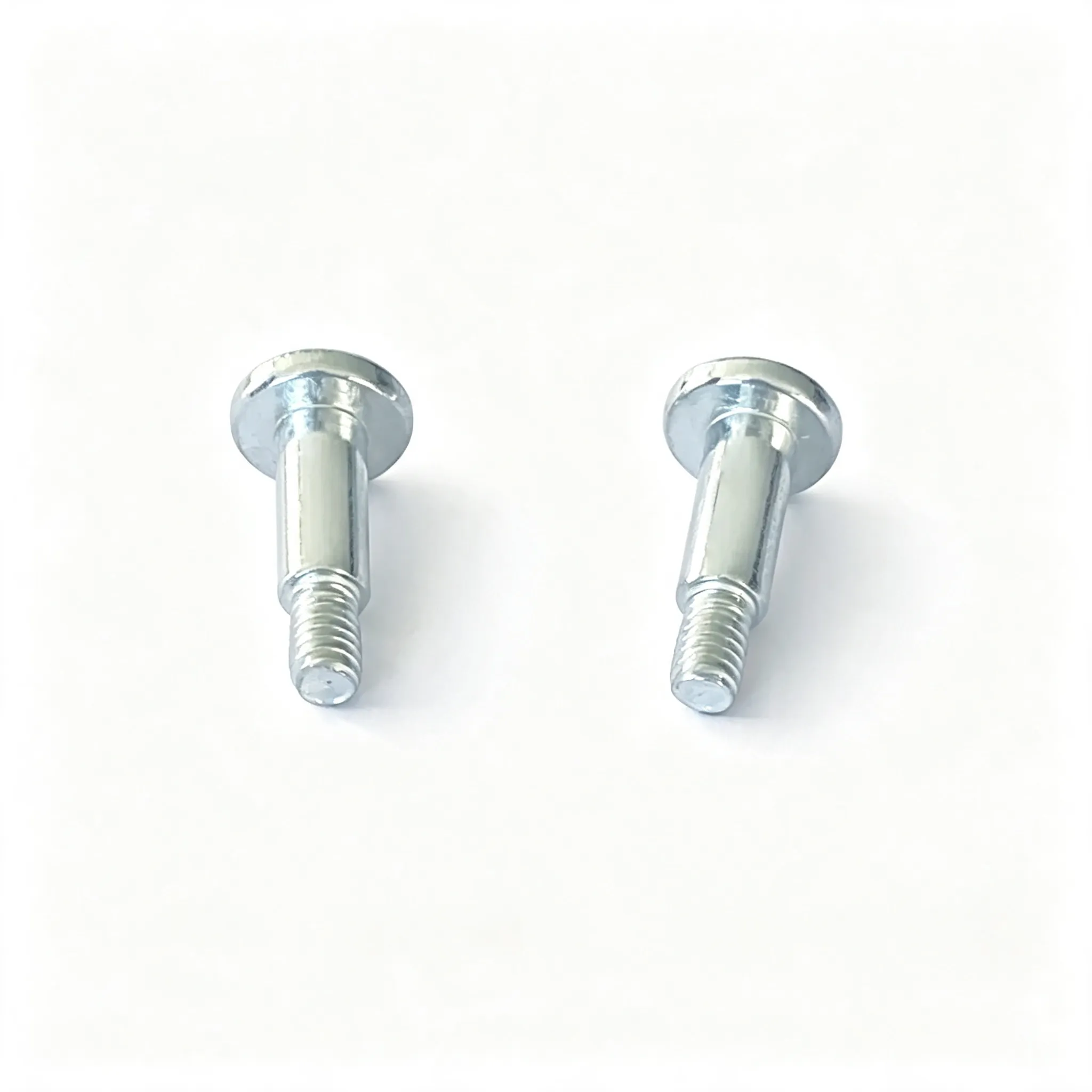

This Phillips-head stepped screw combines a cross recess with a stepped shank and threaded end. The step can locate or space a component, while the cross recess provides the installation drive.
For phillips-head stepped screw, use the photograph only to identify the family. Mark the features that must be measured, the ones that may be visually compared and the surfaces that must remain free of damage in the approved drawing.
Location or spacing
Confirm the step diameters and lengths, the thread and the cross-recess size. Identify whether each step is a locating fit, a clearance section or a bearing surface. The drawing should show the faces that limit travel and the method used to retain the screw.
At every change of section on phillips-head stepped screw, decide whether the transition is a clearance, a locating fit, a spring point or a stress-sensitive area. The radius, chamfer and undercut should then be specified to match that function.
Drive and access
Check that the driver can reach the recess and that the assembly has room to turn it. A stepped shank may hold the head away from the surrounding part, so the driver approach and the final head position should be checked together.
For a part that will be serviced, check that phillips-head stepped screw can be released without damaging the mating component. A recessed drive, adhesive patch or locking feature can make removal harder than installation and should be reviewed at the same time.
Material and finish
State the material, finish and any wear or appearance requirement. A bright or dark surface is not a strength or precision grade. If a functional step is plated, confirm that the coating does not change its fit.
Compare finish changes for phillips-head stepped screw against the approved sample under the agreed viewing condition. Record the surfaces where coating build-up, color variation, marks or edge coverage are acceptable, and keep that reference with the drawing revision.
Trial fit
Trial the screw in the actual assembly. Check that each step enters as intended, the thread engages and the head or shoulder seats. Confirm that the component is located or spaced correctly and that no step bottoms prematurely.
After the trial, protect the approved sample of phillips-head stepped screw from handling damage and keep it with the current drawing. Any process, material or finish change should be compared with that reference before the lot is released.
FAQ
Is every stepped screw adjustable?
No. A step is a change in diameter; adjustment requires a defined offset or movable geometry.
Can the step be used as a bearing surface?
Only when the drawing defines the contact face and the intended load. Do not infer it from the outline.
What should be checked before approval?
Check the step diameters, lengths, thread, seating face and tool access.
