Specifications

MaterialPer drawing / sample
Size RangePer drawing / sample
Head TypePer drawing / sample
Thread or ShankPlain or stepped shaft with threaded end
FinishPer drawing / sample
TolerancePer drawing / sample
Made to DrawingYes

Frequently asked questions

Can this part be produced to a drawing or sample?

Yes. A dimensioned drawing or stable sample provides the head, shank or thread, material and finish details reviewed before quotation.

What drawing information should be provided?

Show the functional dimensions, material, surface finish, quantity and any assembly or inspection requirement. Photos can support the review, but a dimensioned drawing or stable sample is preferred.

How are sample requirements handled?

Any prototype or sample requirement is confirmed during quotation after the drawing or sample has been reviewed.

How is the surface finish selected?

The finish is reviewed against the material, application, appearance and corrosion requirement shown on the drawing or sample.

Shaft Screws / Machine Screws

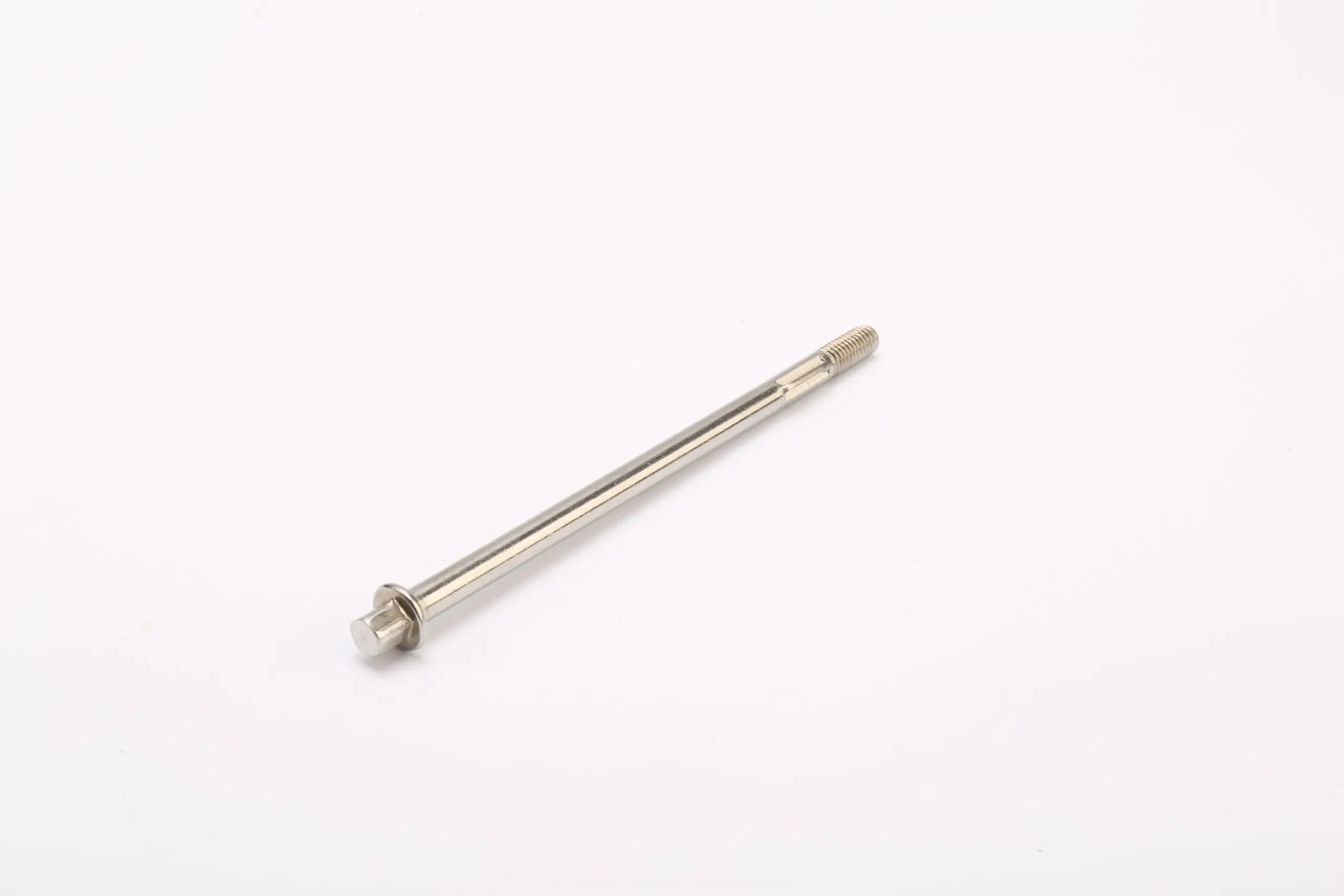

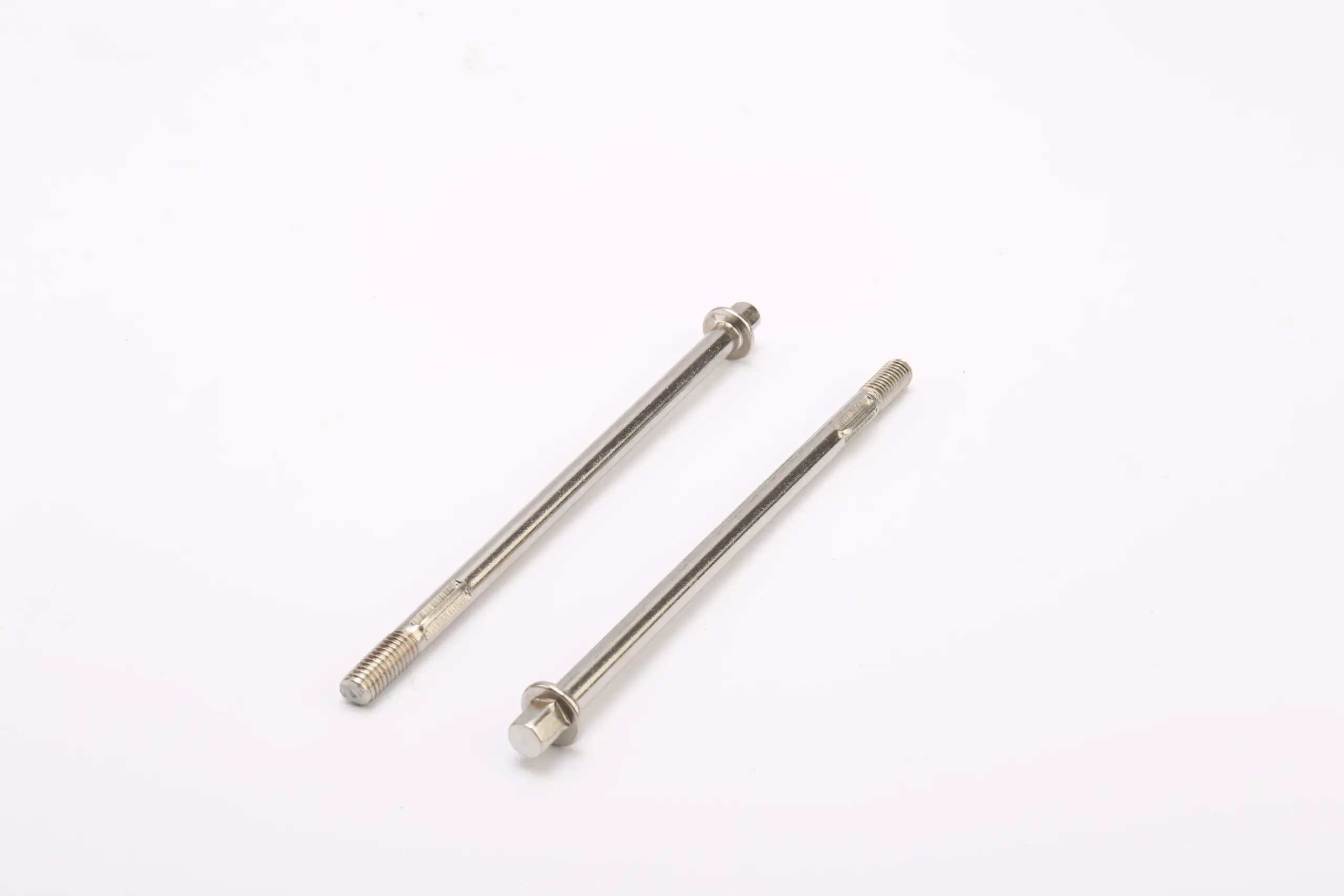

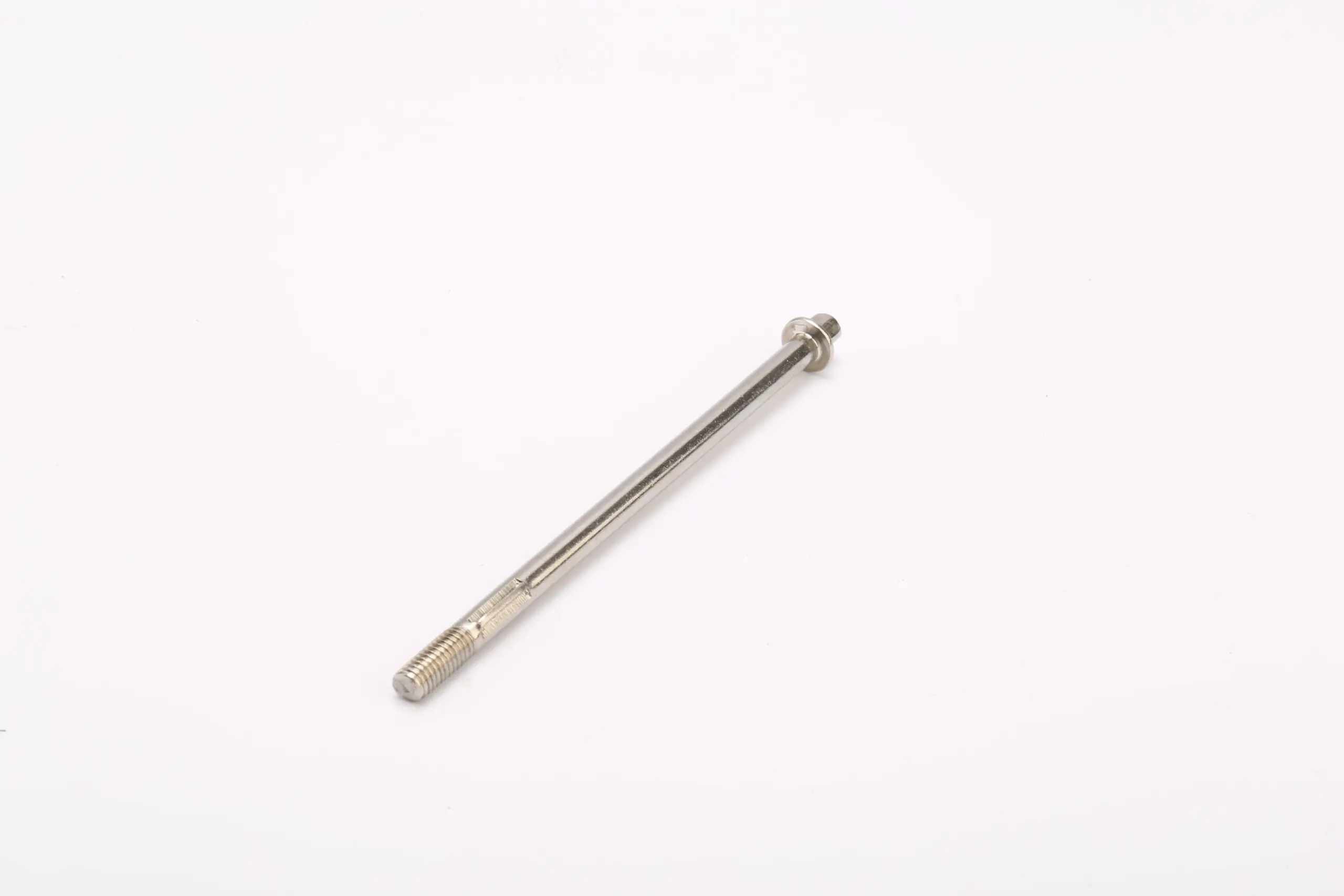

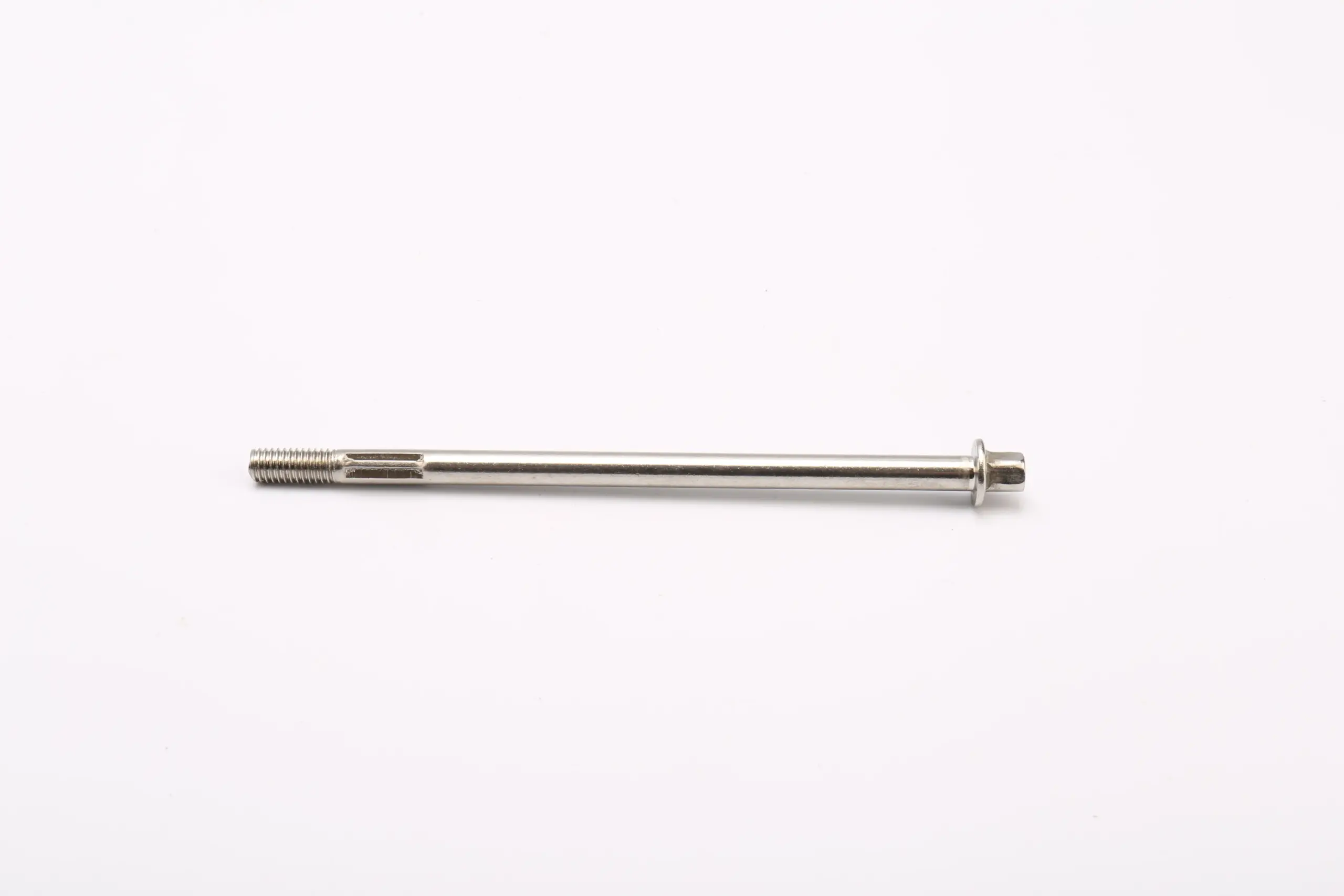

Shaft screws and machine screws with a plain or stepped shaft and threaded end for pivot and adjustment applications. Produced to drawing or sample.

Product Description

Shaft screws and machine screws with a plain or stepped shaft and threaded end for pivot and adjustment applications. Produced to drawing or sample. The notes below focus on the features that need to be confirmed before a drawing is approved.

Shaft and threaded end

This shaft screw or machine screw combines a plain or stepped shaft with a threaded end. The shaft can locate or pivot a component while the thread provides attachment, so the drawing must define which surface carries the load.

For shaft screws / machine screws, use the photograph only to identify the family. Mark the features that must be measured, the ones that may be visually compared and the surfaces that must remain free of damage in the approved drawing.

Locating surface

Show the shaft diameter and length, any step or shoulder and the thread size and length. Identify the surface that centers or pivots the component and the face that limits axial movement. A smooth appearance does not establish a precision fit.

At every change of section on shaft screws / machine screws, decide whether the transition is a clearance, a locating fit, a spring point or a stress-sensitive area. The radius, chamfer and undercut should then be specified to match that function.

Thread and seating

Confirm the thread, pitch and engaged length, then check that the shaft can enter its mating bore without forcing. Define the installation direction and any tool access. The threaded end should not bottom before the intended face seats.

For a part that will be serviced, check that shaft screws / machine screws can be released without damaging the mating component. A recessed drive, adhesive patch or locking feature can make removal harder than installation and should be reviewed at the same time.

Material and finish

State the material, finish and any wear requirement. A dark or bright surface is not a grade. If the shaft runs in a bore or against another component, review the contact pair and the allowable wear or marks.

Compare finish changes for shaft screws / machine screws against the approved sample under the agreed viewing condition. Record the surfaces where coating build-up, color variation, marks or edge coverage are acceptable, and keep that reference with the drawing revision.

Installation check

Trial the part in the actual assembly and check that the shaft locates, the thread engages and the intended face seats. Confirm that the component moves or remains fixed as required. Inspect the shaft for bending or damage.

After the trial, protect the approved sample of shaft screws / machine screws from handling damage and keep it with the current drawing. Any process, material or finish change should be compared with that reference before the lot is released.

FAQ

Is a shaft screw the same as a shoulder screw?

The terms can overlap, but the drawing must define the shaft, shoulder and thread. Do not rely on the name alone.

Can the shaft be used as a pivot?

Only when the mating bore, clearance, retention and wear requirements are defined.

What should be checked first?

Check shaft fit, seating, thread engagement and the intended movement.
