Hex socket screws with an internal hex drive for compact, controlled tightening in machinery and equipment. The notes below focus on the features that need to be confirmed before a drawing is approved.
Compact socket body

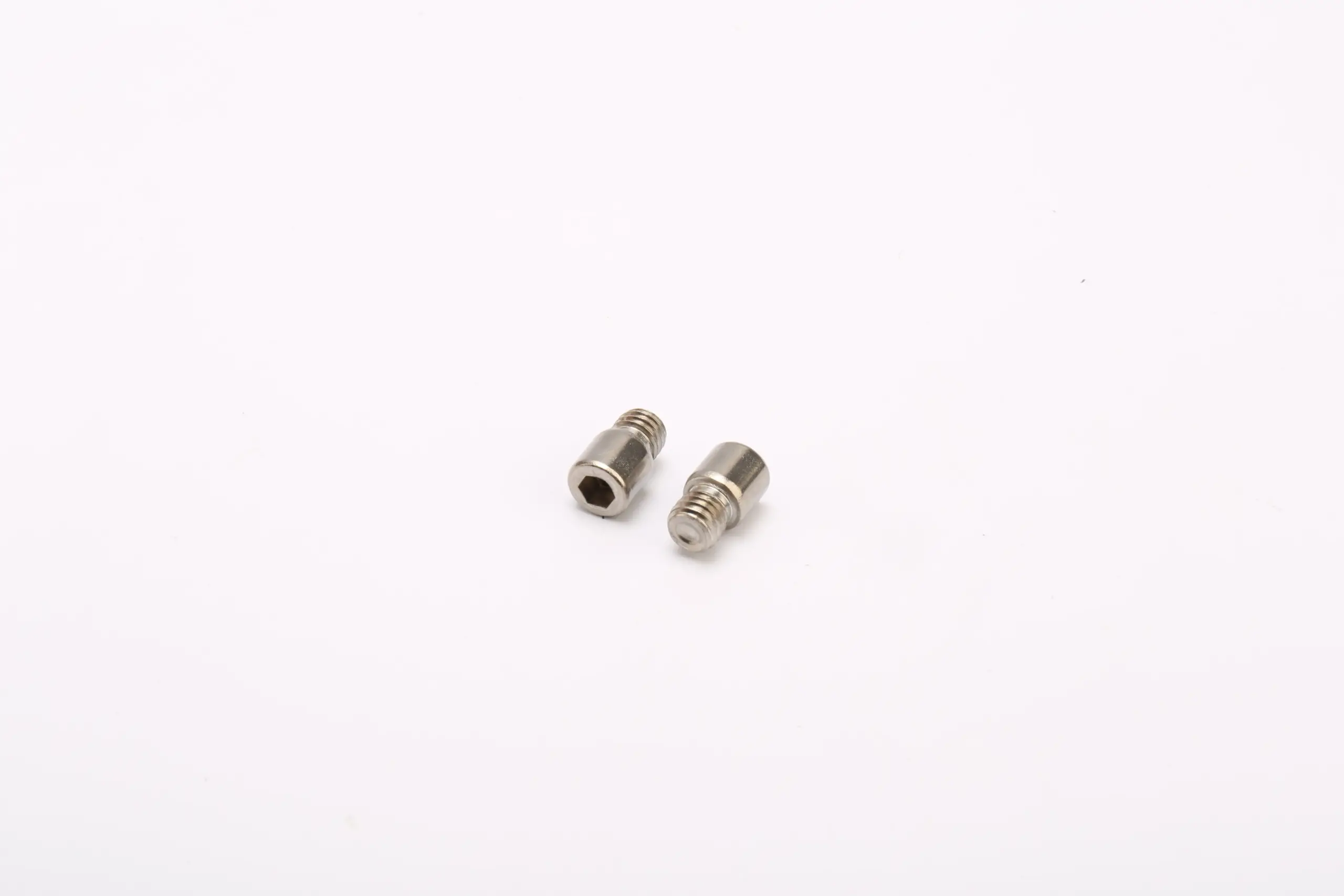

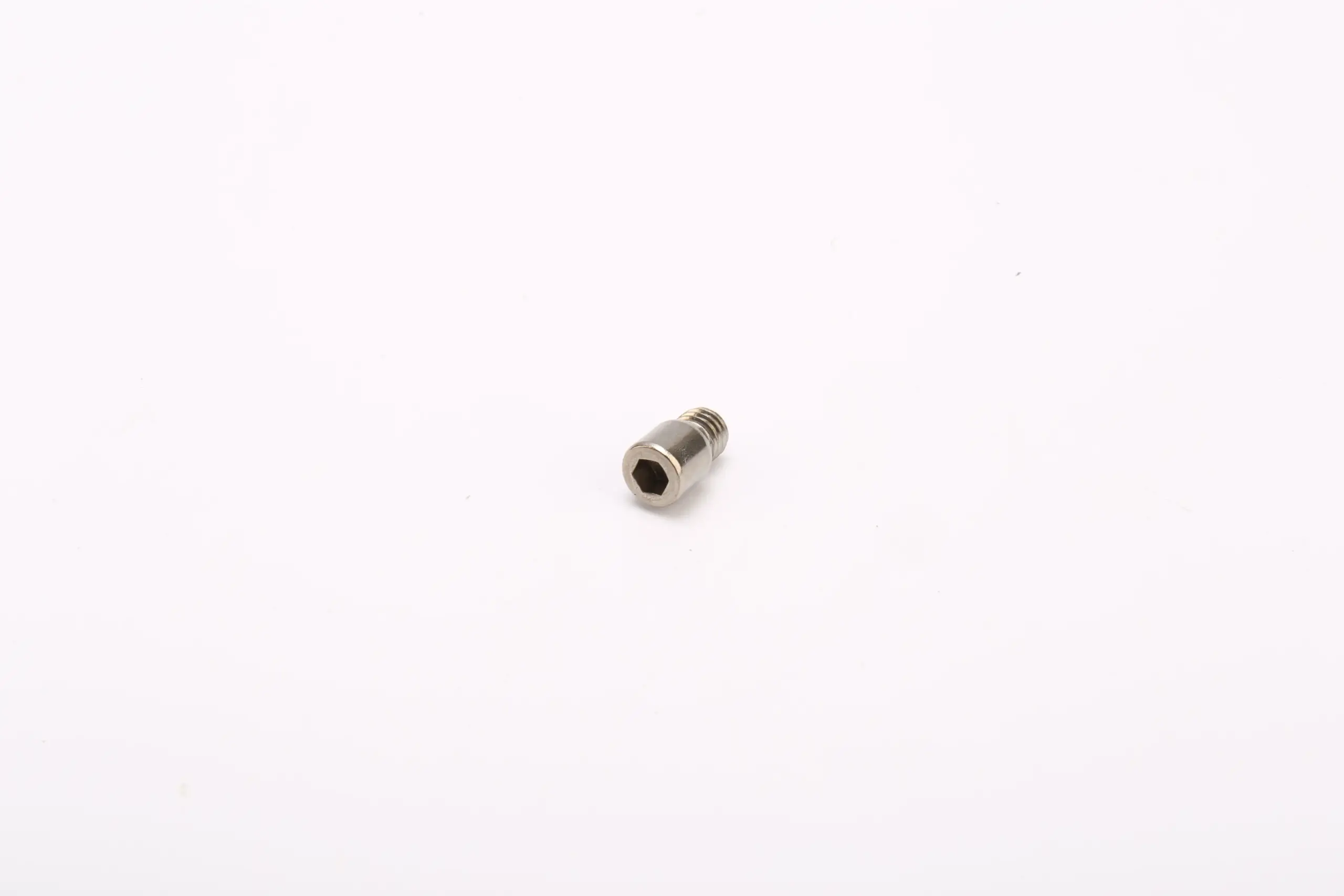

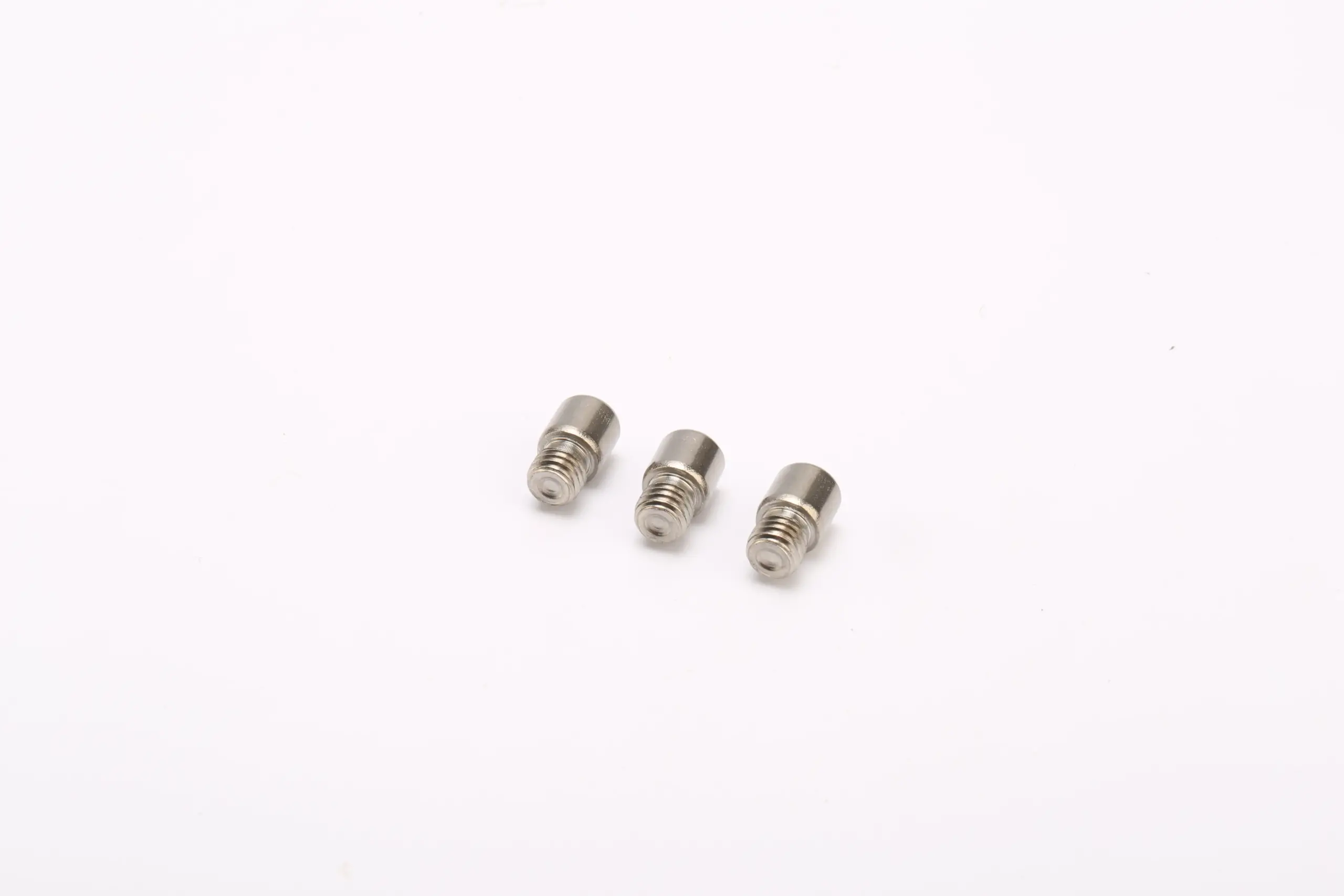

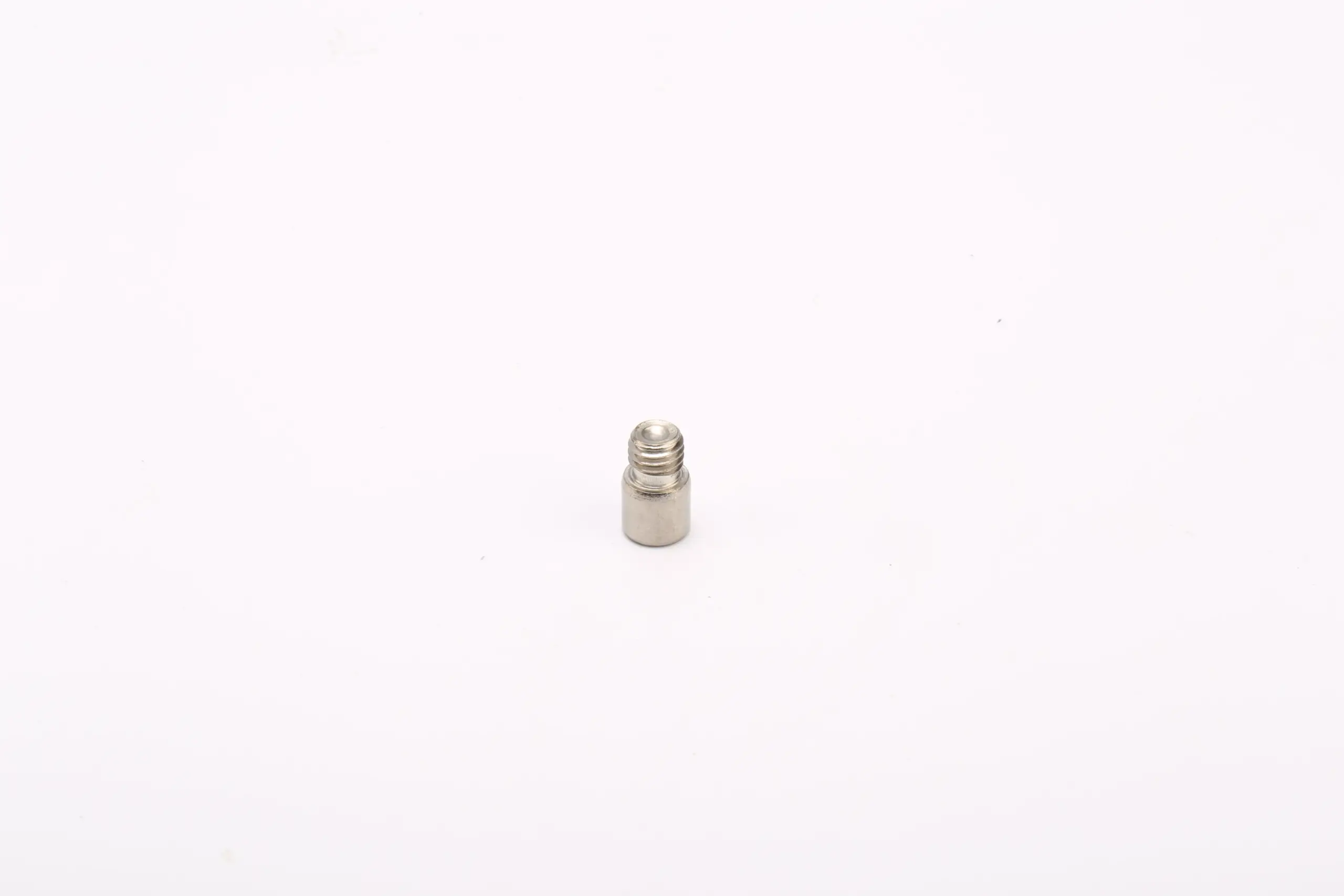

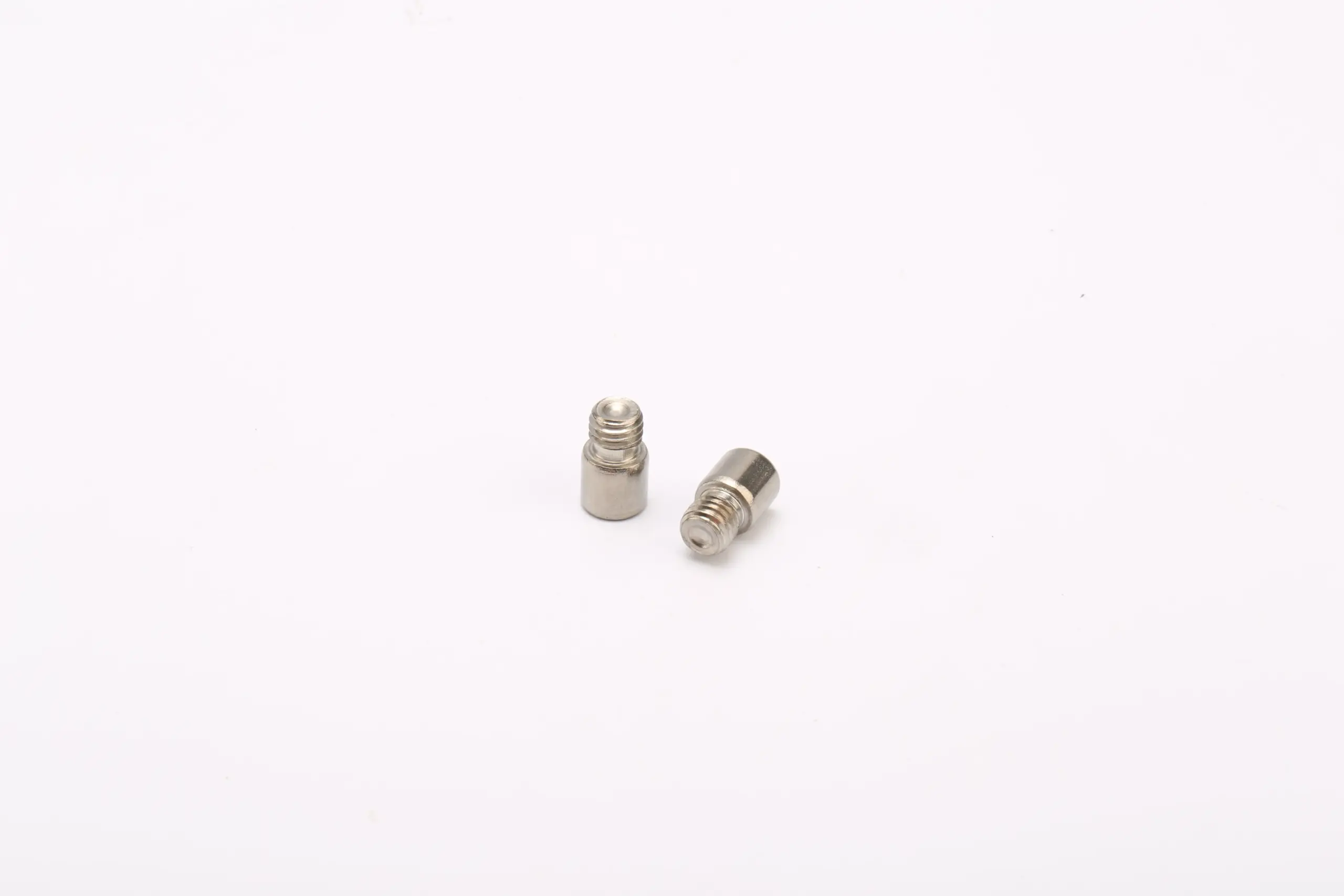

This hex socket screw has a compact body intended for a recessed or space-limited joint. The internal drive lets the tool approach from the screw axis, but the compact outline does not by itself establish the thread, head or seating function.
For hex socket screw, the inspection datum should follow the functional feature. A locating diameter is checked from its own axis; a seating face is checked for squareness and contact. Cosmetic limits should be recorded separately.
Thread and seating
Confirm the thread size, pitch and usable length, then identify the head or shoulder that limits travel. Check the transition from the head to the thread and the clearance around the mating hole. A compact body can leave less material at the bearing face.
Trace the insertion path of hex socket screw from the first engaged feature to the final seat. Any shoulder, undercut or reduced section along that path should be dimensioned because it can change alignment or contact even when the overall size is correct.
Recessed assembly access
In a recessed assembly, the key may be harder to start than the screw. Check the approach angle, the socket depth and the space for the operator. A magnetic or retaining key may help with handling, but it does not replace proper engagement.
Review the tool path for hex socket screw with the surrounding parts installed. The operator needs room to engage the drive, turn it and withdraw the tool. A driver that fits a bare sample can still be blocked by a cover, cable or adjacent component.
Material and finish
State the base material, finish and any hardness or thread treatment. A bright or dark surface is not a grade. If the screw contacts a dissimilar metal, review corrosion and galling at the thread and bearing face.
Keep the material, finish and thread treatment for hex socket screw as separate acceptance items. The base material controls the substrate, the finish controls the surface, and a thread treatment changes the engagement or locking behavior. One does not establish the others.
Trial assembly
Trial the screw in the actual recess. Confirm that it starts without cross-threading, reaches the intended seat and leaves enough socket depth for the key. Inspect the socket and head for damage after tightening.
Use the first sample of hex socket screw to check what a dimensional report cannot show: access, alignment, seating and unintended contact. Record the assembly sequence and the tools used so the result can be repeated.
FAQ
Does a compact body increase strength?
No. Compactness is a geometry choice, not a strength rating. Review material, thread and joint design.
Can a compact socket be turned with a short key?
Only if the key engages fully and the surrounding space allows a safe approach.
What should be checked first?
Check socket access, thread engagement, seating face and clearance around the compact body.
