Specifications

MaterialPer drawing / sample
Size RangePer drawing / sample
Head TypePer drawing / sample
Thread or ShankThreaded shank
FinishPer drawing / sample
TolerancePer drawing / sample
Made to DrawingYes

Frequently asked questions

Can this part be produced to a drawing or sample?

Yes. A dimensioned drawing or stable sample provides the head, shank or thread, material and finish details reviewed before quotation.

What drawing information should be provided?

Show the functional dimensions, material, surface finish, quantity and any assembly or inspection requirement. Photos can support the review, but a dimensioned drawing or stable sample is preferred.

How are sample requirements handled?

Any prototype or sample requirement is confirmed during quotation after the drawing or sample has been reviewed.

How is the surface finish selected?

The finish is reviewed against the material, application, appearance and corrosion requirement shown on the drawing or sample.

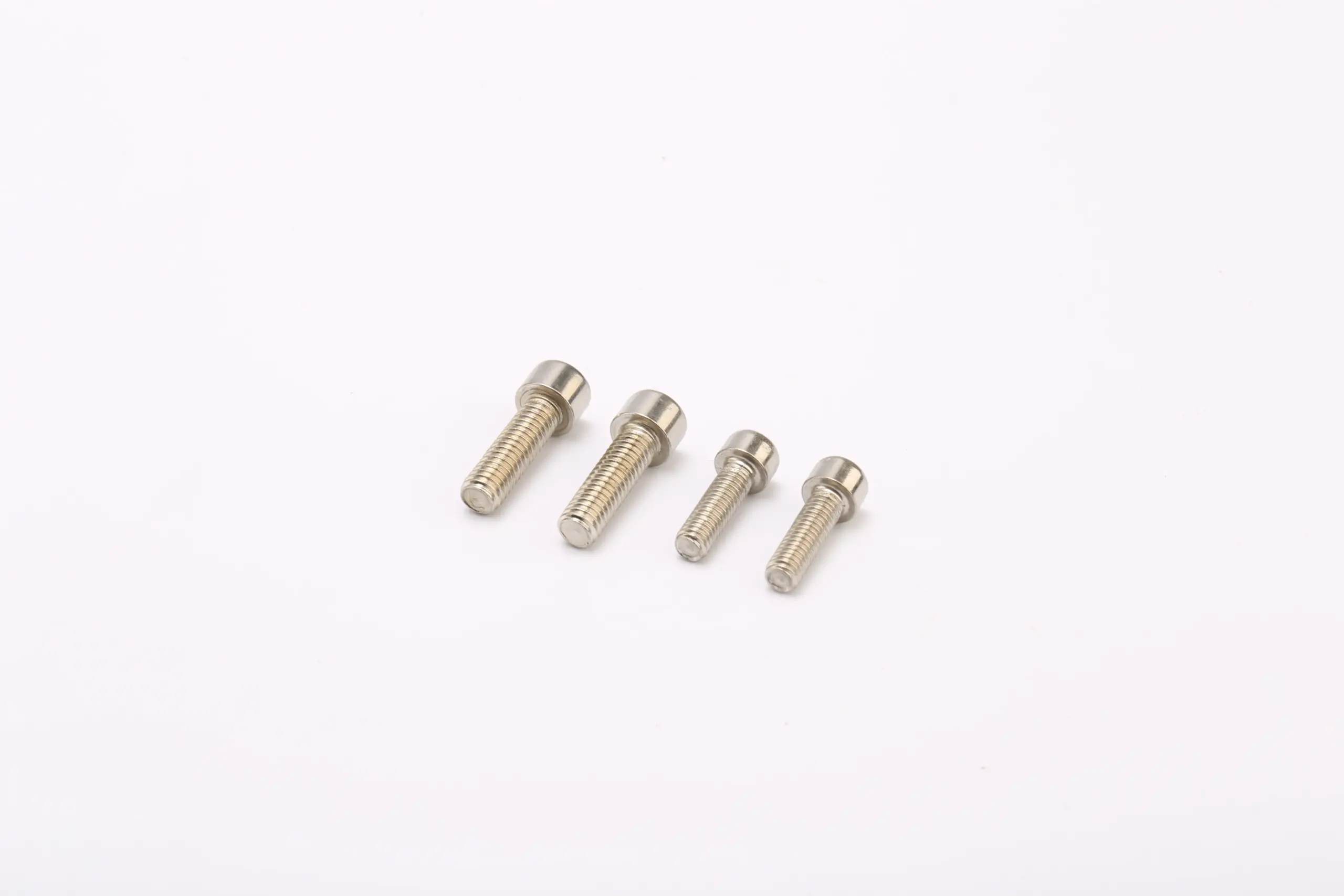

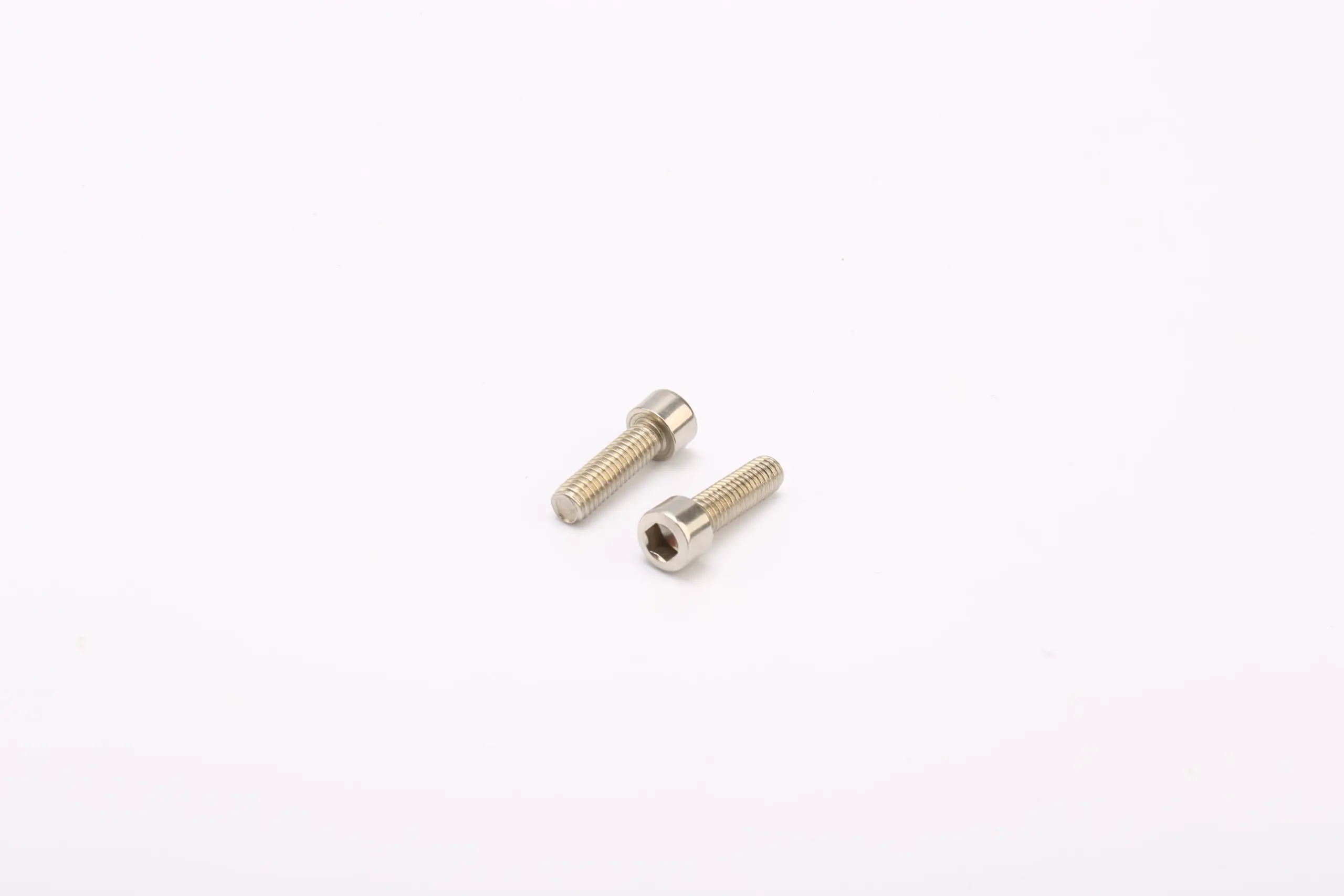

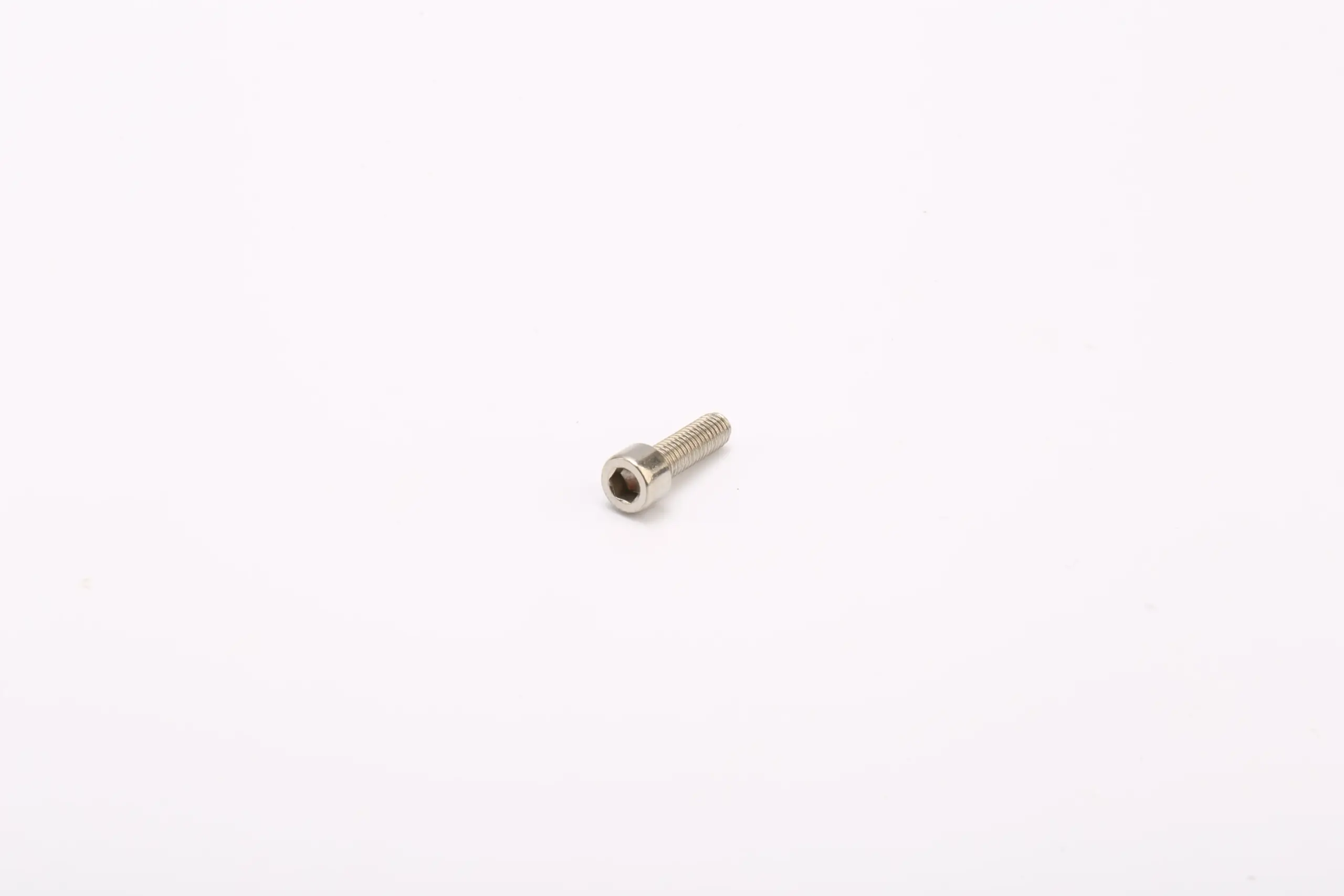

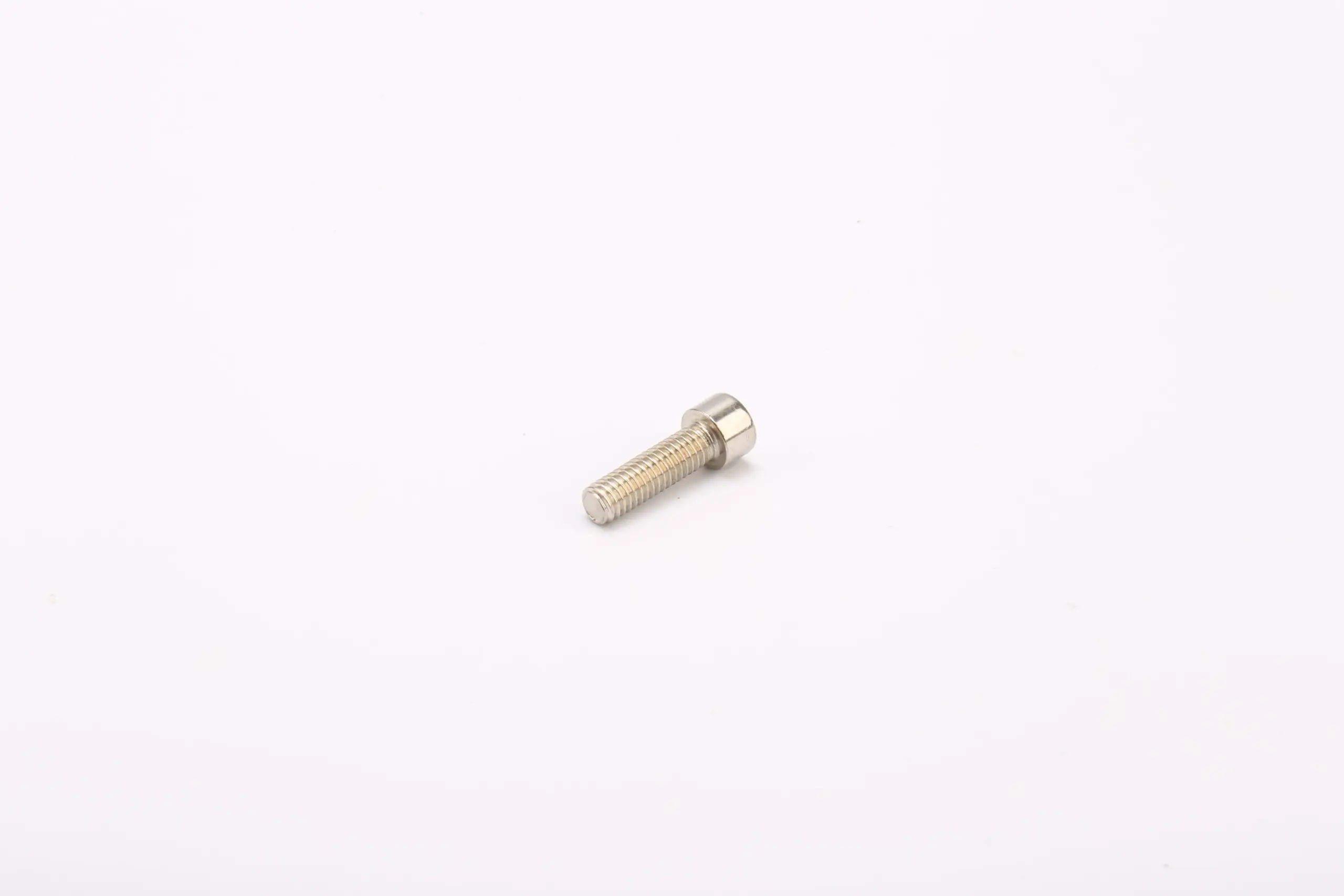

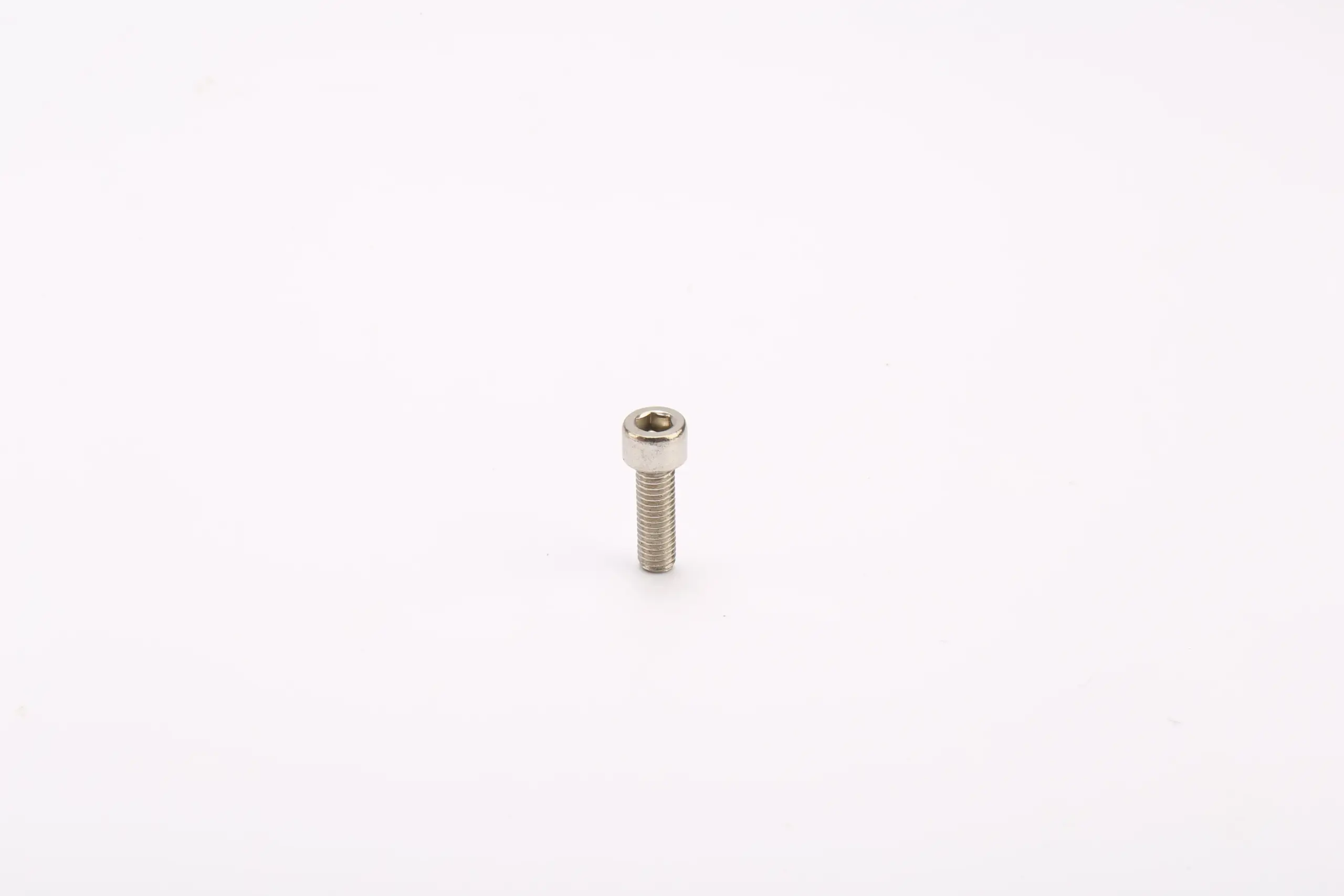

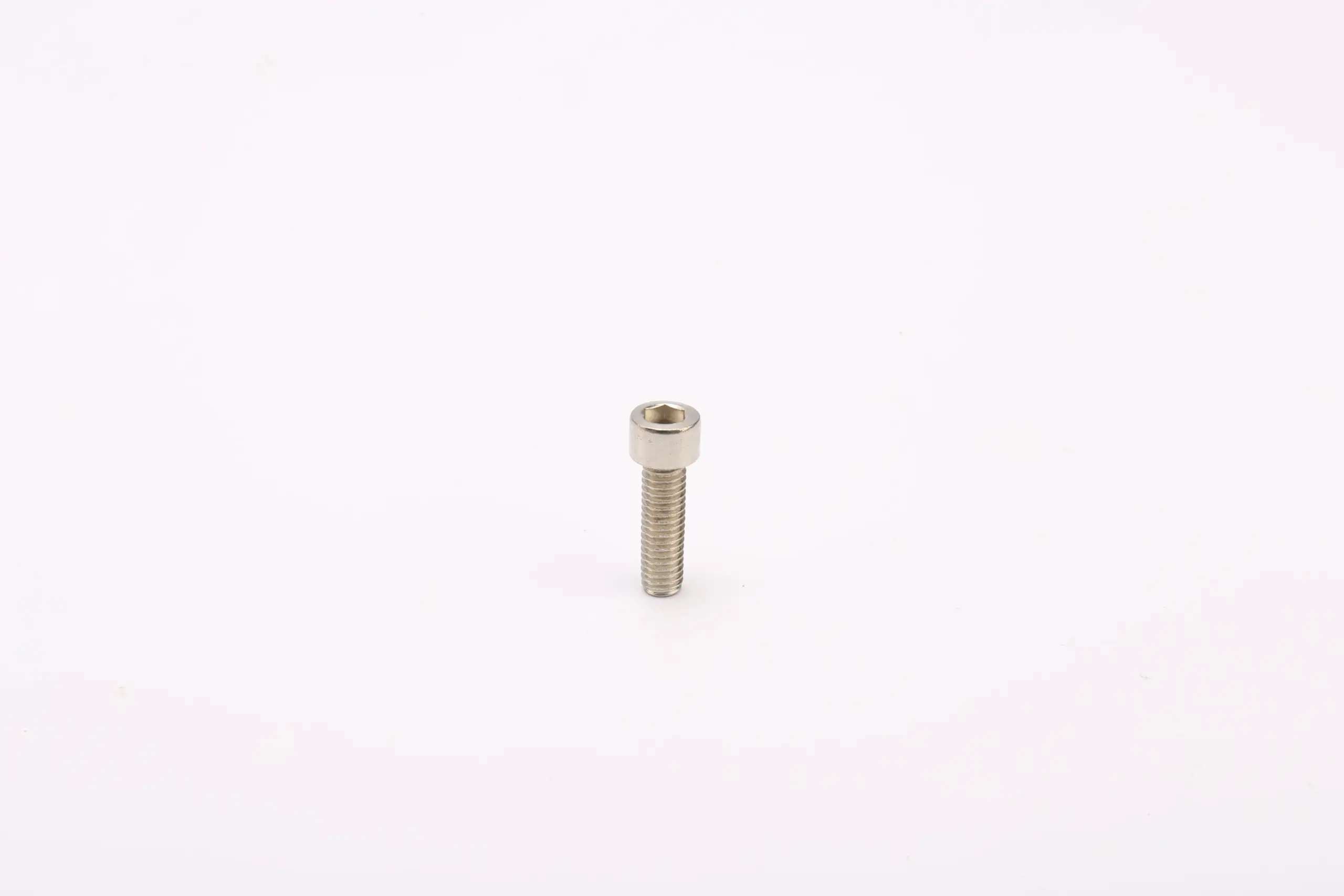

Hex Socket Screws

Hex socket screws with an internal hex drive for controlled tightening in mechanical and equipment assemblies. Produced to custom specifications.

Product Description

Hex socket screws with an internal hex drive for controlled tightening in mechanical and equipment assemblies. Produced to custom specifications. The notes below focus on the features that need to be confirmed before a drawing is approved.

Socket drive and head envelope

This hex socket screw uses an internal drive to keep the outside envelope compact and to let the tool approach along the screw axis. The socket size, socket depth and head clearance should be checked as a single installation system.

For hex socket screws, the inspection datum should follow the functional feature. A locating diameter is checked from its own axis; a seating face is checked for squareness and contact. Cosmetic limits should be recorded separately.

Thread and bearing face

The internal drive does not define the thread or the bearing face. Confirm the thread size, pitch and engaged length, then identify the head underside or shoulder that contacts the mating part. Check the clearance at the thread run-out and around any washer.

Trace the insertion path of hex socket screws from the first engaged feature to the final seat. Any shoulder, undercut or reduced section along that path should be dimensioned because it can change alignment or contact even when the overall size is correct.

Key access in service

A socket screw needs a straight, fully engaged key. Check the key length, the available rotation and the space for the driver body after nearby parts are installed. A ball-end key may help with alignment, but it should not be assumed to provide the same contact as a full-length key.

Review the tool path for hex socket screws with the surrounding parts installed. The operator needs room to engage the drive, turn it and withdraw the tool. A driver that fits a bare sample can still be blocked by a cover, cable or adjacent component.

Material and finish

State the base material, finish and any hardness or thread treatment. A bright or dark surface is not a grade. If the screw contacts a different metal, review corrosion and galling at the thread and bearing face.

Keep the material, finish and thread treatment for hex socket screws as separate acceptance items. The base material controls the substrate, the finish controls the surface, and a thread treatment changes the engagement or locking behavior. One does not establish the others.

Installation and inspection

Trial the screw with the actual key and mating part. Confirm that it starts by hand, seats at the intended face and can be tightened without damaging the socket. Inspect the head underside and the socket for interference or burrs.

Use the first sample of hex socket screws to check what a dimensional report cannot show: access, alignment, seating and unintended contact. Record the assembly sequence and the tools used so the result can be repeated.

FAQ

Is a hex socket screw stronger because of its drive?

No. The drive does not establish strength. Material, geometry and the joint control the applicable performance.

Can a ball-end key be used for final tightening?

Use the key and engagement method specified for the assembly. A ball-end key may not provide full contact.

What is the key dimensional check?

Confirm socket size, depth and condition, then verify that the selected key engages without play or damage.
