Specifications

MaterialPer drawing / sample
Size RangePer drawing / sample
Head TypePer drawing / sample
Thread or ShankThreaded shank
FinishPer drawing / sample
TolerancePer drawing / sample
Made to DrawingYes

Frequently asked questions

Can this part be produced to a drawing or sample?

Yes. A dimensioned drawing or stable sample provides the head, shank or thread, material and finish details reviewed before quotation.

What drawing information should be provided?

Show the functional dimensions, material, surface finish, quantity and any assembly or inspection requirement. Photos can support the review, but a dimensioned drawing or stable sample is preferred.

How are sample requirements handled?

Any prototype or sample requirement is confirmed during quotation after the drawing or sample has been reviewed.

How is the surface finish selected?

The finish is reviewed against the material, application, appearance and corrosion requirement shown on the drawing or sample.

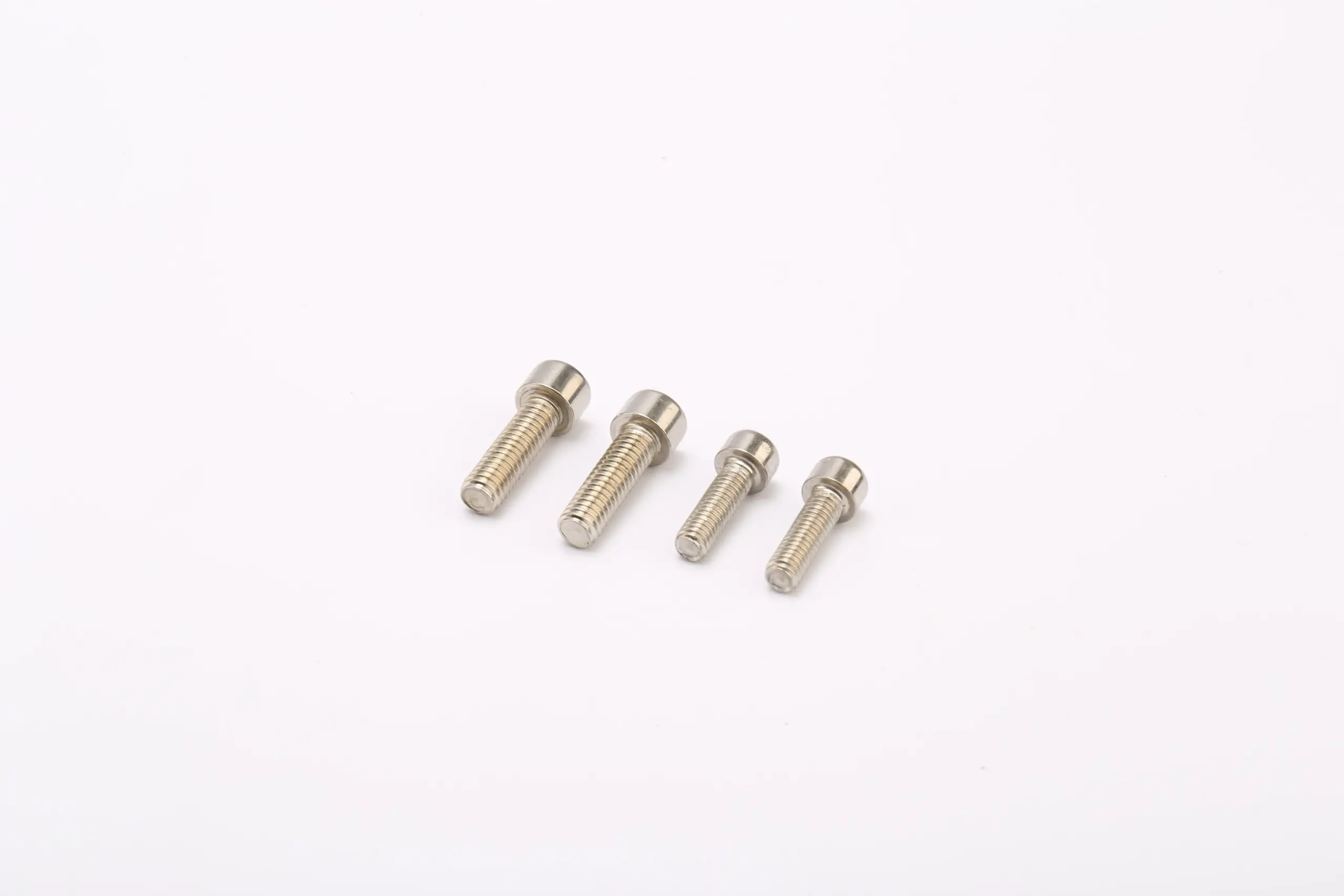

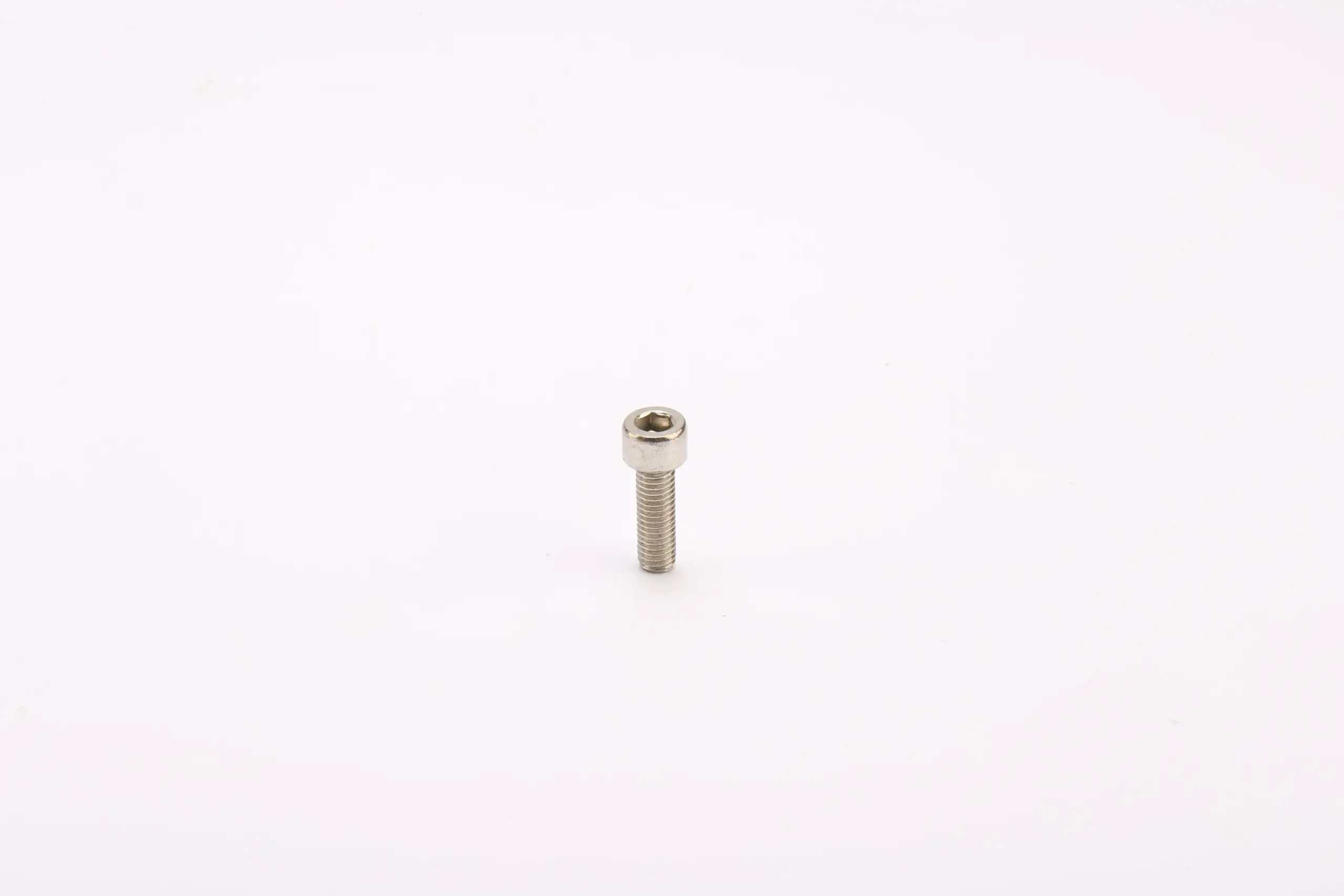

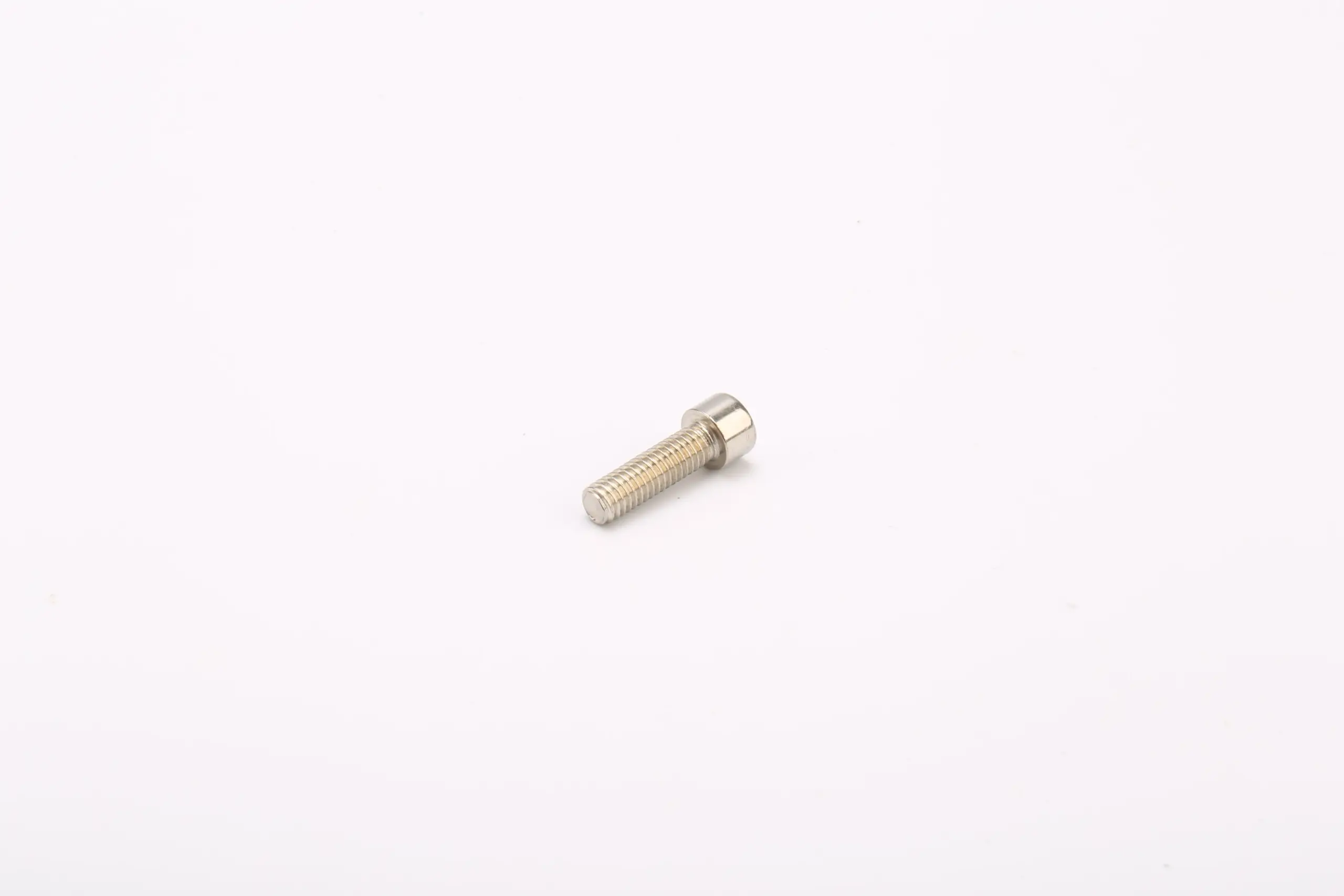

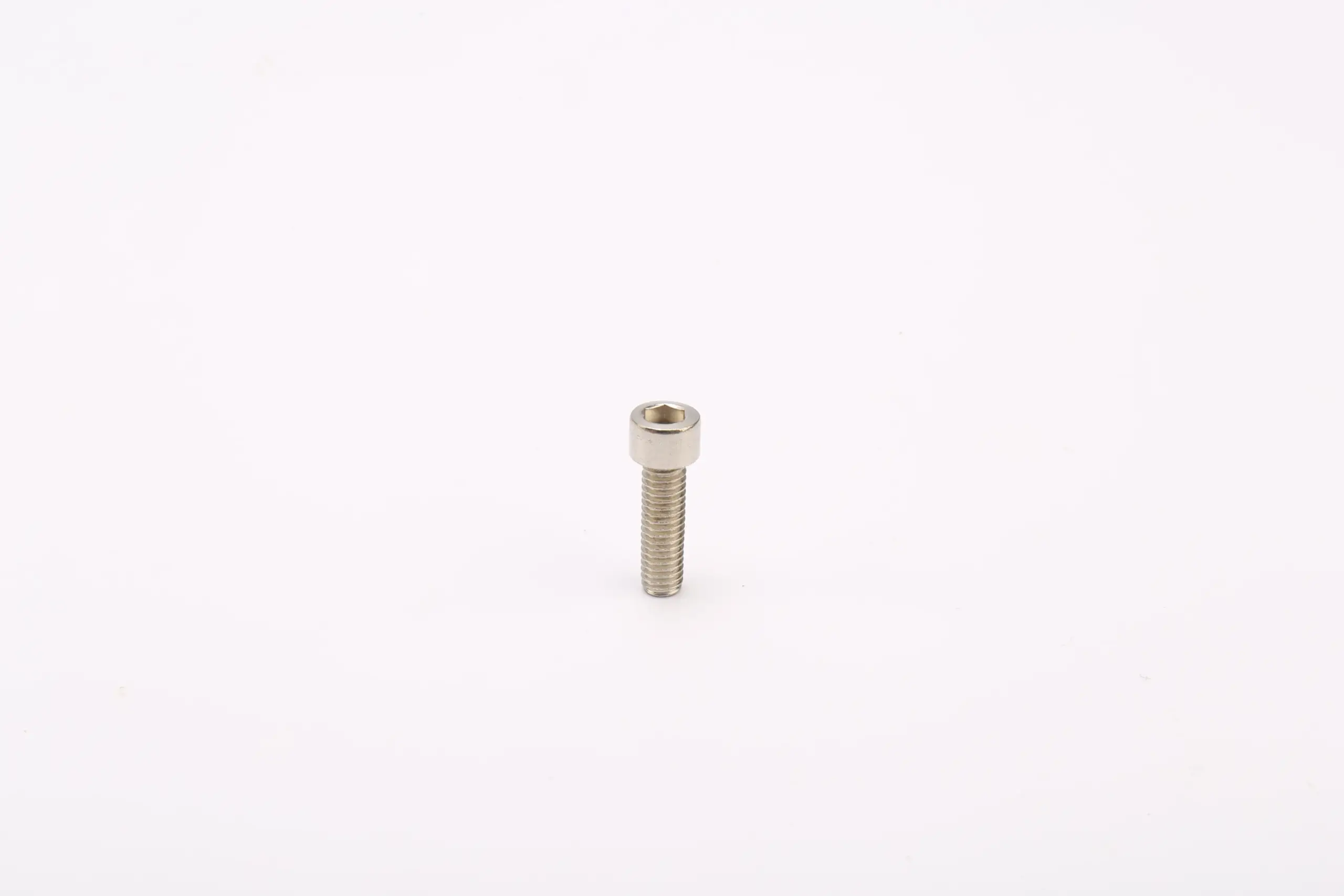

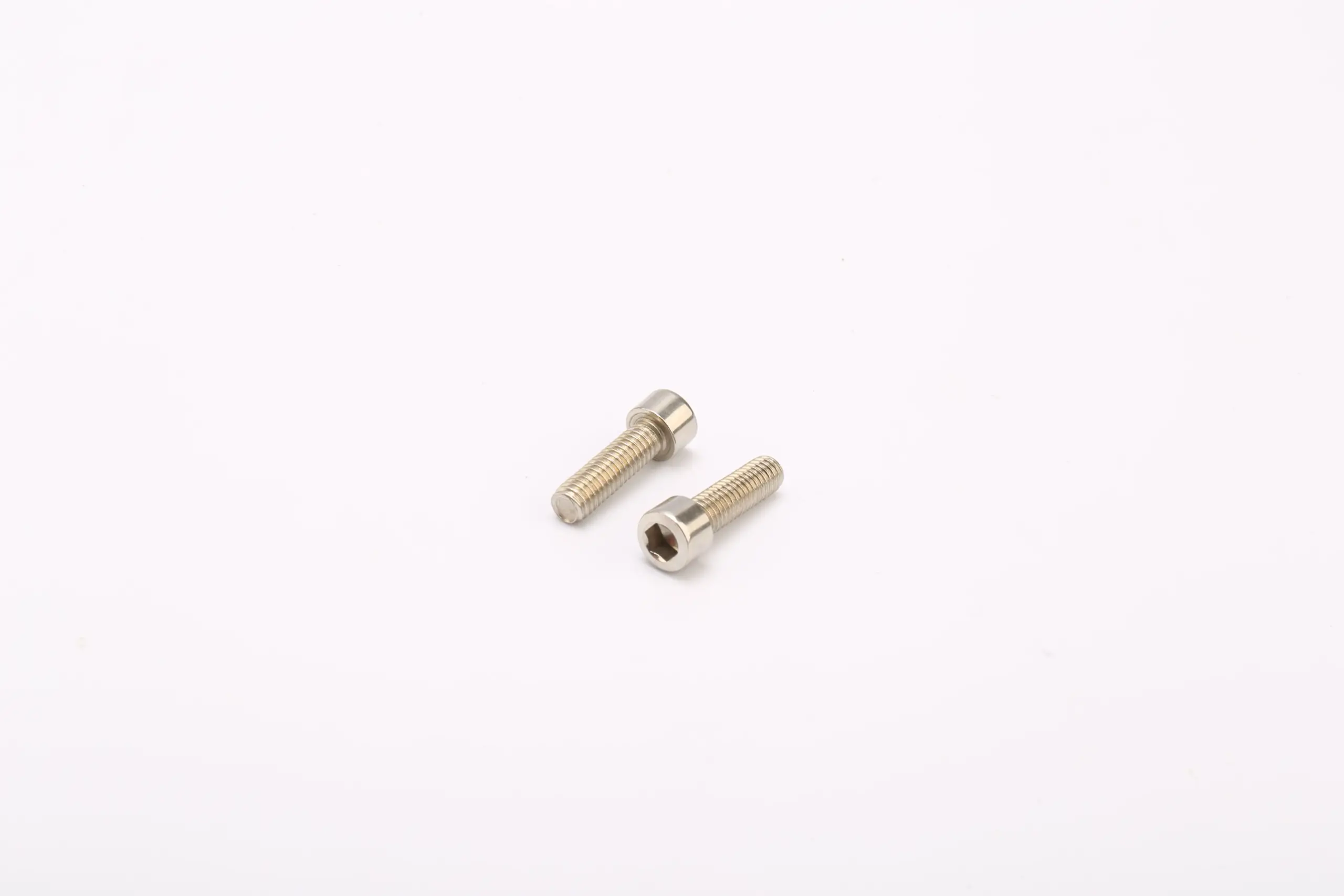

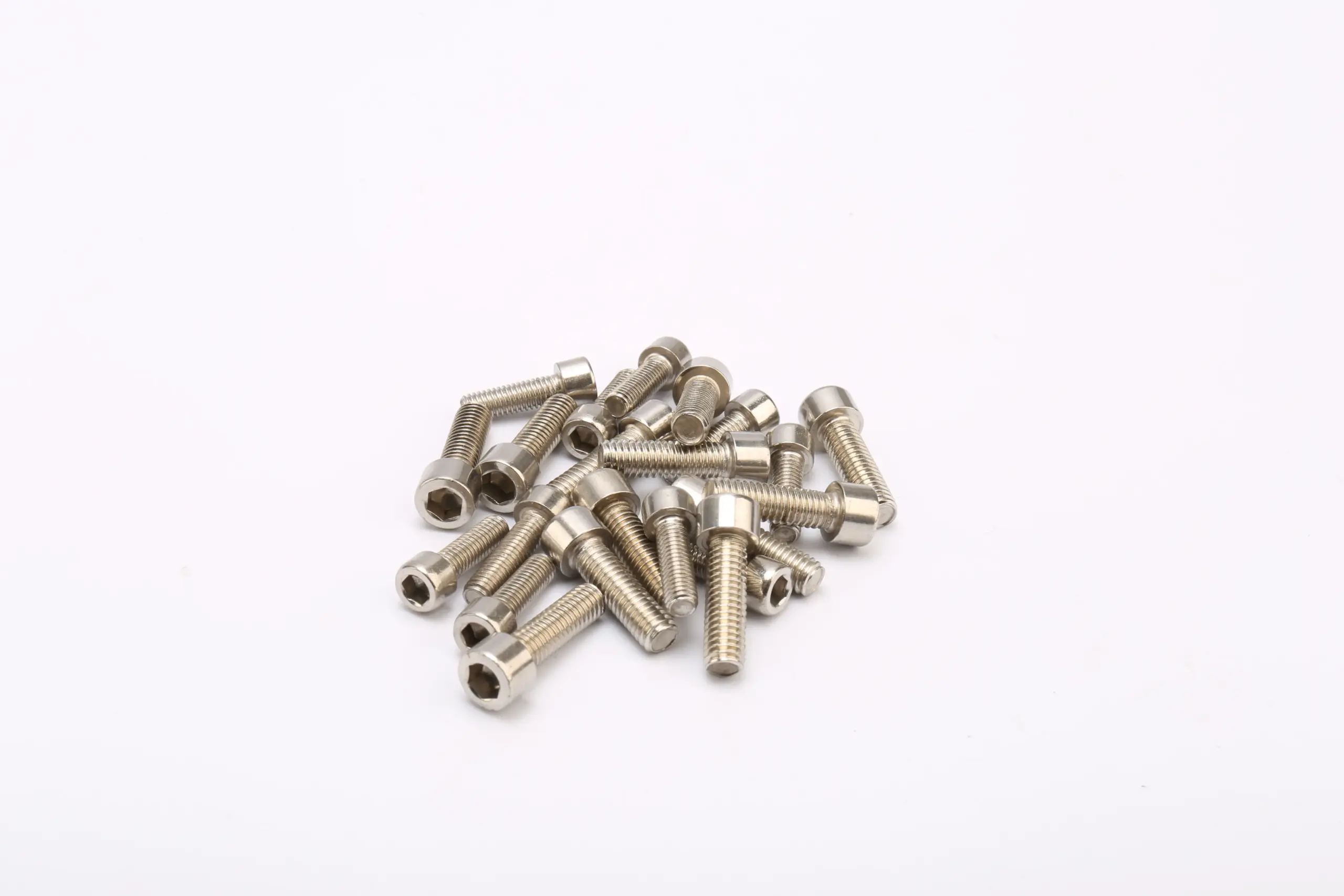

Custom hexagon socket screw

Customized hexagon socket screws with an internal hex drive produced to drawing or sample for equipment assemblies.

Product Description

Customized hexagon socket screws with an internal hex drive produced to drawing or sample for equipment assemblies. The notes below focus on the features that need to be confirmed before a drawing is approved.

Drawing-defined socket geometry

This customized hexagon socket screw uses an internal hex drive with a head, shank and thread defined by the drawing. Custom geometry can change the socket depth, bearing area or thread length, so the title alone is not enough to establish interchangeability.

Begin with the interface that receives customized hexagon socket screw manufacturer. The mating bore, panel or bracket establishes which surfaces locate and which clear. A dimension that is correct on the screw can still fail at that interface.

Thread and bearing face

Show the socket size and depth, the head or shoulder that seats, and the full thread length on the drawing. If the custom body includes a step or reduced section, identify how it affects insertion and load transfer. Do not infer a standard envelope from the socket drive.

Use functional lengths for customized hexagon socket screw manufacturer rather than overall length wherever possible. The distance from the seating face to the first thread, the length of a locating step and the depth of a bore all describe how the part behaves in the assembly.

Tool access

Check that the key can reach the socket and turn without touching nearby parts. A custom head may be deeper, wider or closer to a cover than a standard part. Confirm the installation direction and the clearance for the driver body.

Define the assembly orientation for customized hexagon socket screw manufacturer and the surfaces that must remain accessible. If the part can be installed in more than one direction, say how the correct orientation is recognized and whether the thread or a keyed feature prevents reversal.

Material and finish

State the base material, finish and any hardness or thread treatment. A custom finish or color is not a material grade. If the screw contacts a dissimilar metal, review corrosion and galling at the functional surfaces.

When customized hexagon socket screw manufacturer will see moisture, cleaning agents or a different metal, state the exposure rather than selecting a finish from color alone. Functional surfaces such as threads, bores and locating diameters may need different protection from cosmetic surfaces.

Trial assembly

Trial the custom screw in the actual assembly. Check that it starts by hand, seats at the intended face and can be tightened without damaging the socket. Keep the approved drawing and first sample together for production comparison.

Production inspection of customized hexagon socket screw manufacturer should follow the functions that control assembly. Check the locating features, the thread or bore and the seating face, then add the visible edge and surface checks that matter for the finished part.

FAQ

Can a customized socket screw replace a standard screw?

Only after the socket, head, thread, seating face and material are compared. The drive shape alone does not establish interchangeability.

Which dimensions control the fit?

The socket, bearing face, thread and any custom step or shoulder should be defined from clear datums.

What should be checked before production?

Check the drawing, first sample, key engagement, seating and thread fit in the real assembly.
