Specifications

MaterialStainless steel
Size RangePer drawing / sample
Head TypePer drawing / sample
Thread or ShankKnurled pin shank
FinishPer drawing / sample
TolerancePer drawing / sample
Made to DrawingYes

Frequently asked questions

Can this part be produced to a drawing or sample?

Yes. A dimensioned drawing or stable sample provides the head, shank or thread, material and finish details reviewed before quotation.

What drawing information should be provided?

Show the functional dimensions, material, surface finish, quantity and any assembly or inspection requirement. Photos can support the review, but a dimensioned drawing or stable sample is preferred.

How are sample requirements handled?

Any prototype or sample requirement is confirmed during quotation after the drawing or sample has been reviewed.

How is the surface finish selected?

The finish is reviewed against the material, application, appearance and corrosion requirement shown on the drawing or sample.

Short Stainless Steel Knurled Pins

Short stainless steel knurled pins with a compact knurled section for location, grip and small hardware assemblies.

Product Description

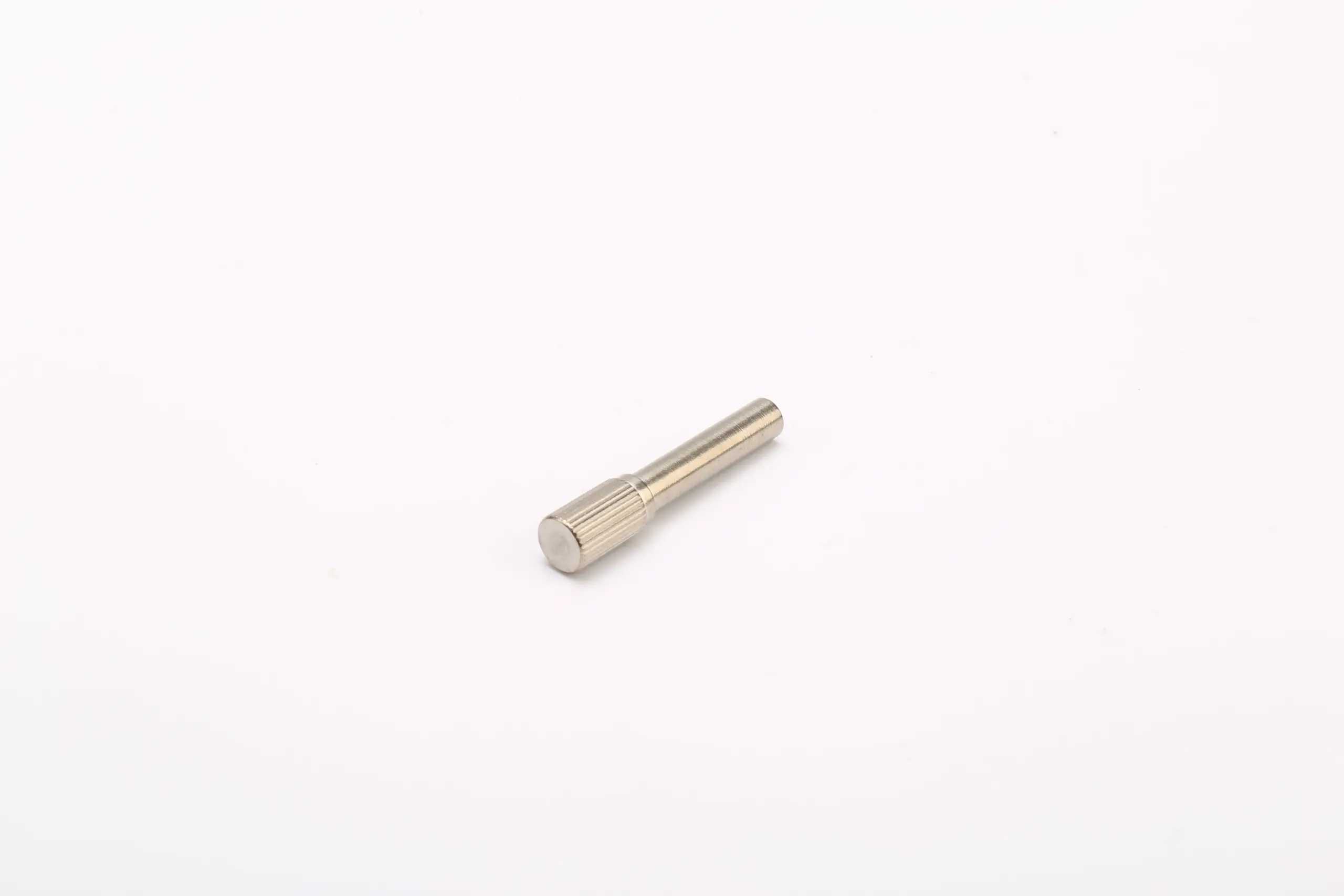

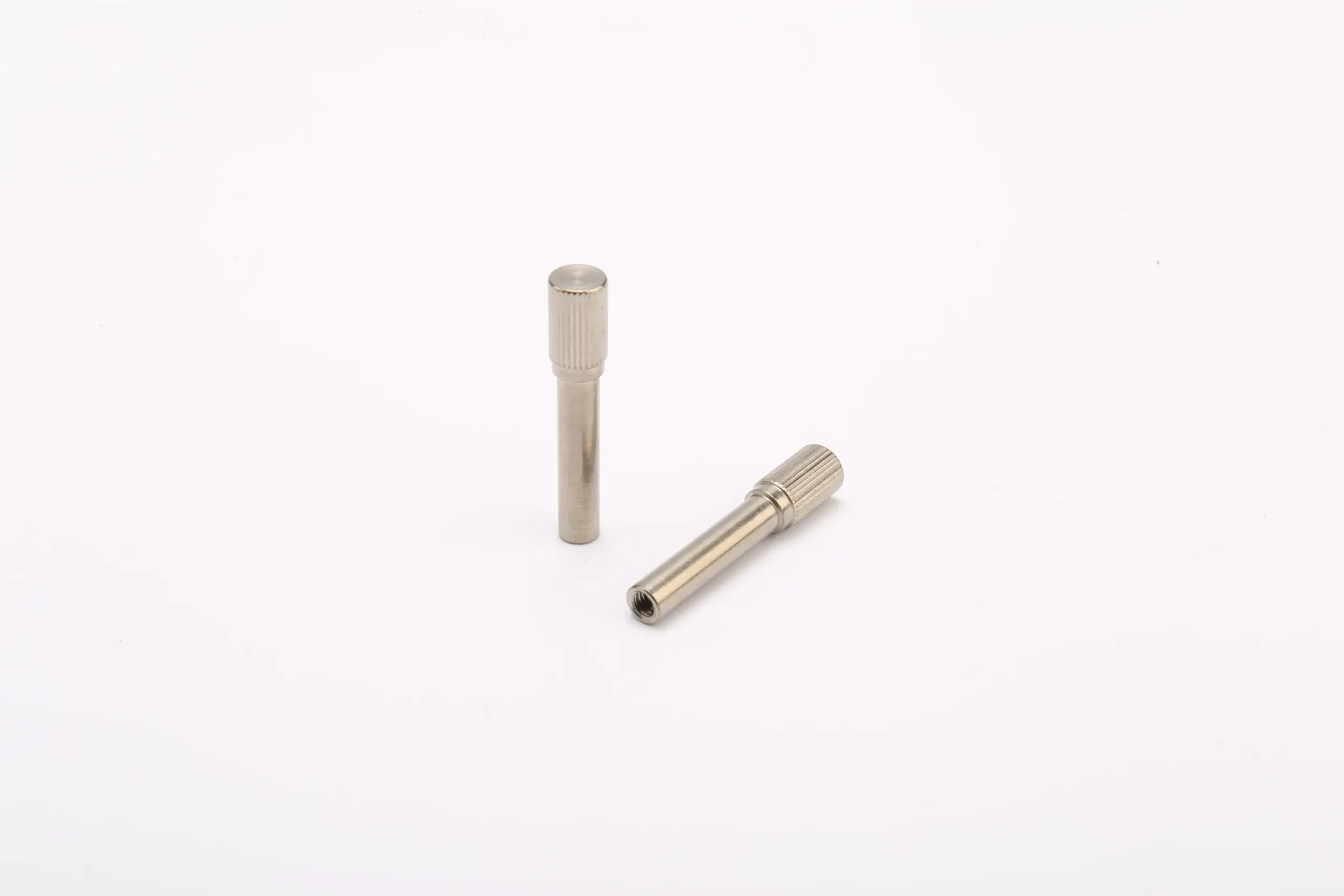

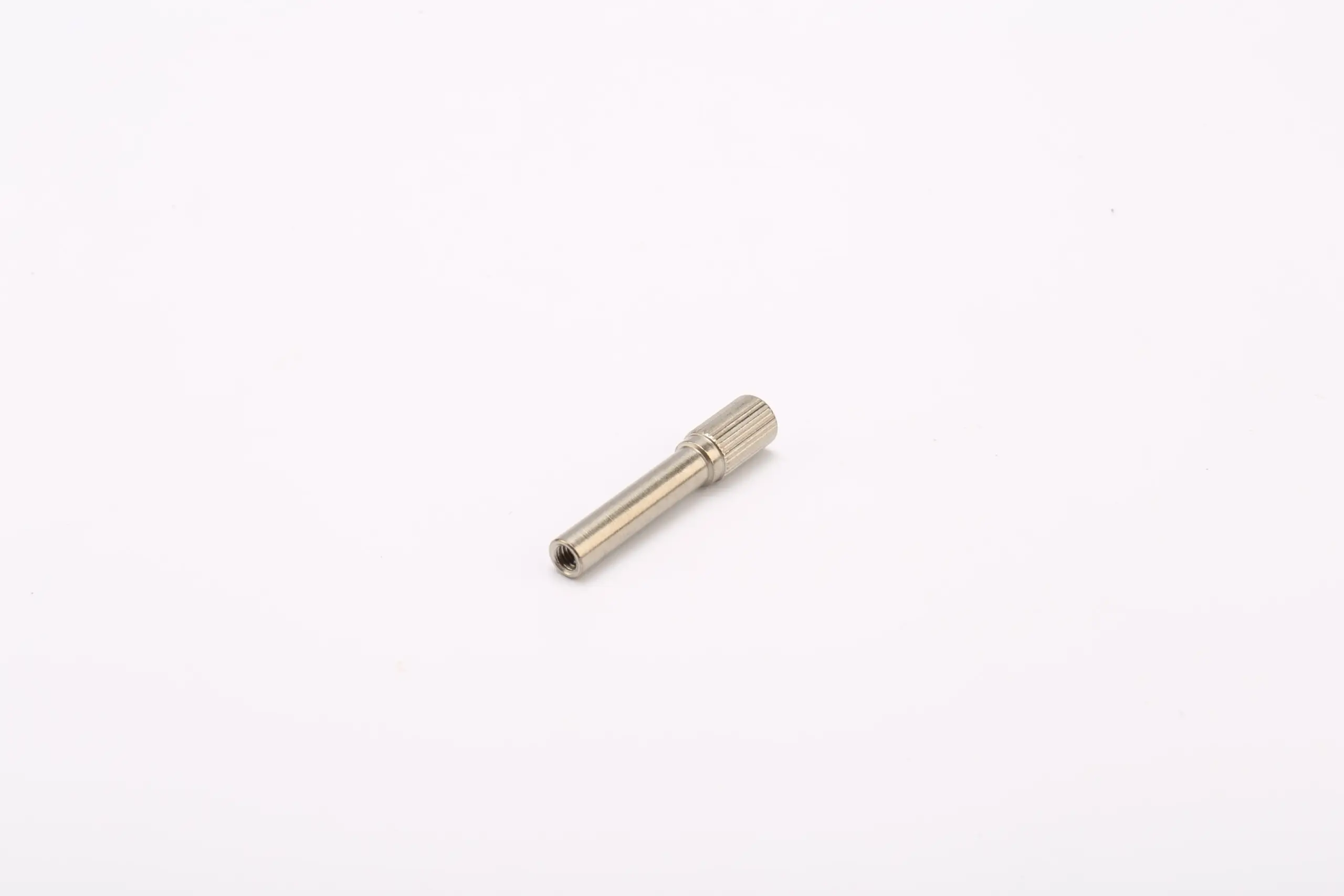

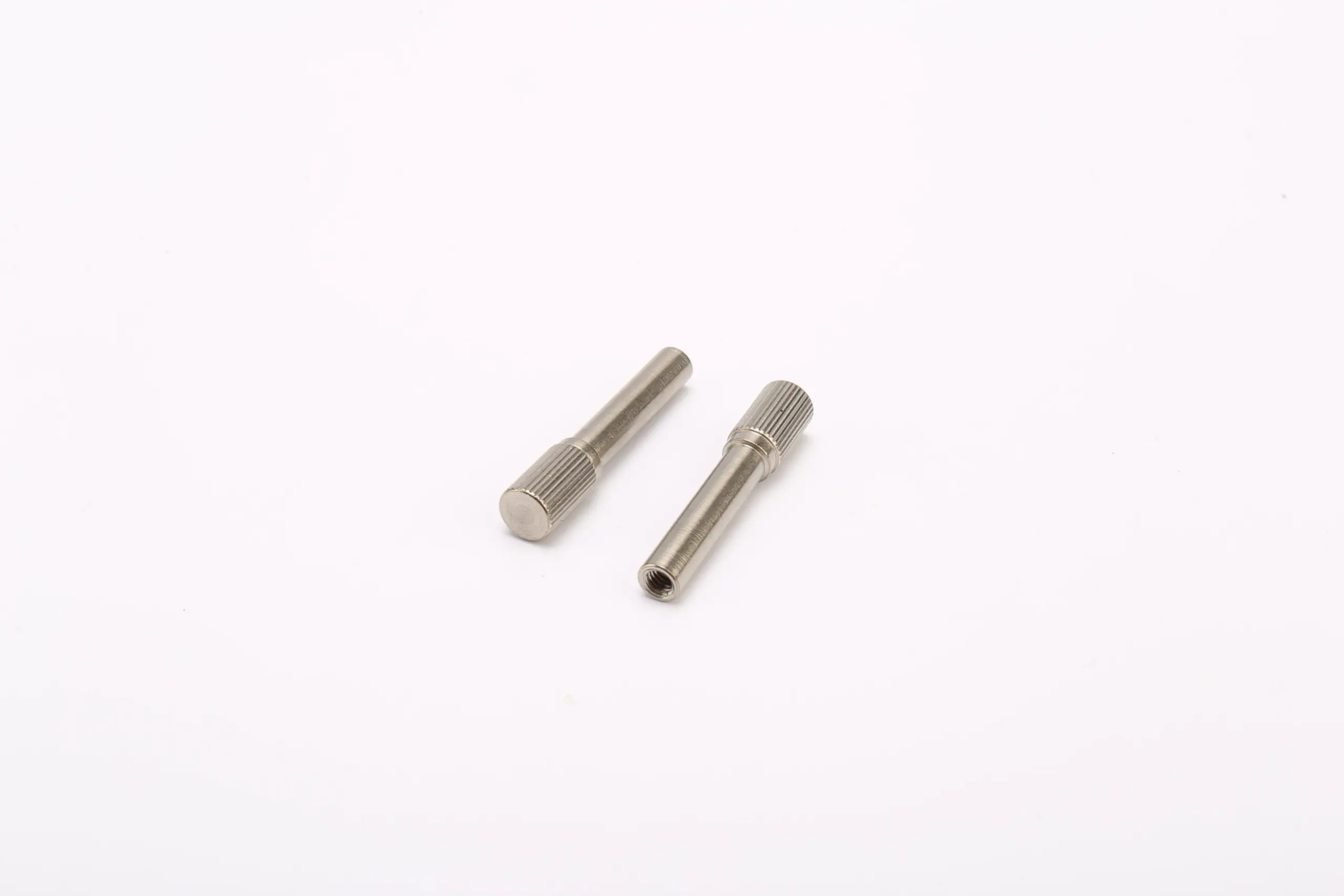

Short stainless steel knurled pins use a compact cylindrical body with a short straight-knurled band. They are intended for small assemblies where a long pin would add unnecessary reach or where the knurl must sit close to the end of the part.

Compact knurled section

The short body leaves little room between the knurl and the ends. The band position, length and edge condition should therefore be dimensioned clearly. A chamfer at the lead end can help insertion, but it must not cut into the functional knurl. The drawing should identify which end enters the mating part first.

Small hardware and assembly use

These pins can be considered for small hinges, compact linkages, instrument hardware and miniature equipment. Check the hole depth and the space available for the knurled section. A short pin may be easy to start but difficult to remove if the knurl is fully engaged, so the service method should be considered.

Short and long pins are not interchangeable

The short form should not be assumed to be the same SKU as a long stainless knurled pin. The two have different proportions, reach and handling envelopes. Similar photographs of a knurled band do not establish that the parts are identical. Confirm the length and knurl position for the actual assembly.

Specification inputs

  • Define the shaft diameter and short overall length.
  • Show the knurl band position, width and end clearance.
  • State the mating hole, insertion depth and removal method.
  • Provide material, finish, quantity and inspection points.

Fit and inspection

Check the short body for bending and the knurl for torn edges. Trial-fit the pin in the intended hole and verify that the band engages at the required depth without damaging the bore. Stainless steel is named by the title, but the grade and surface condition still need confirmation.

Because the pin is short, the available insertion and removal space should be checked early. Confirm that the knurled band engages the intended depth without being buried below the bore edge, and provide a removal method if service access is limited. Inspect the short body for bending and the knurl ends for burrs. Keep short pins in a controlled tray so that they are not mixed with visually similar long pins.

FAQ

Is the short pin a press-fit part?

Not automatically. The fit depends on the hole, material and intended retention, which must be specified.

Can the knurl band be shortened?

Yes, if the new band length and position are shown on the drawing or approved sample.

Is it the same SKU as a long knurled pin?

No such assumption should be made from appearance. Confirm the part number and dimensions.

Browse the stainless steel knurled pin category, or compare single head straight knurled pins and textured knurled nuts.
