Ball head screws with a longer shank and polished spherical head for linkages, pivots and adjustable mechanisms. The notes below focus on the features that need to be confirmed before a drawing is approved.
Ball head and long shank
This long-shank ball head screw pairs a spherical head with an extended shank. The ball can provide a rounded contact or a grip point, while the longer shank reaches through a deeper stack.

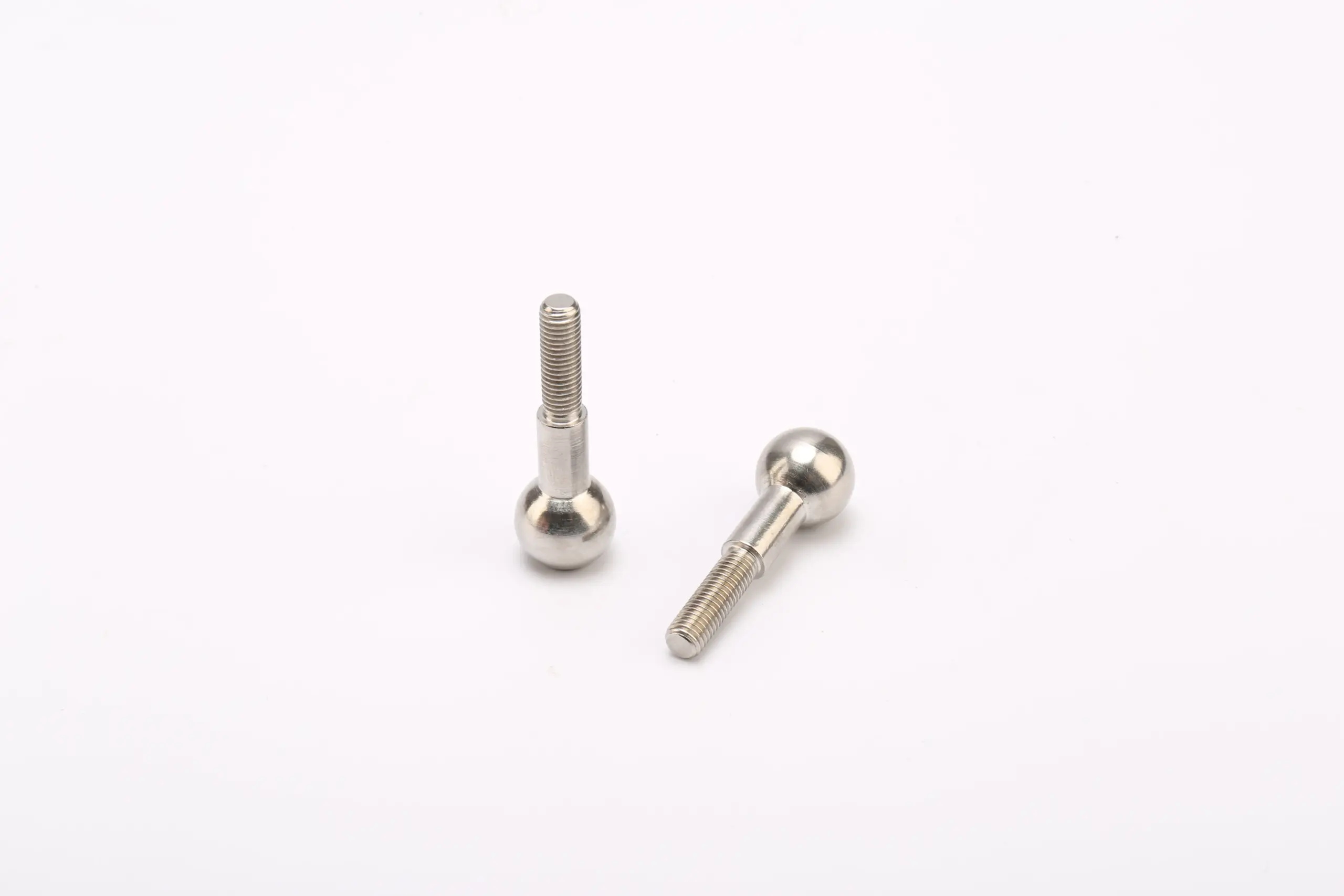

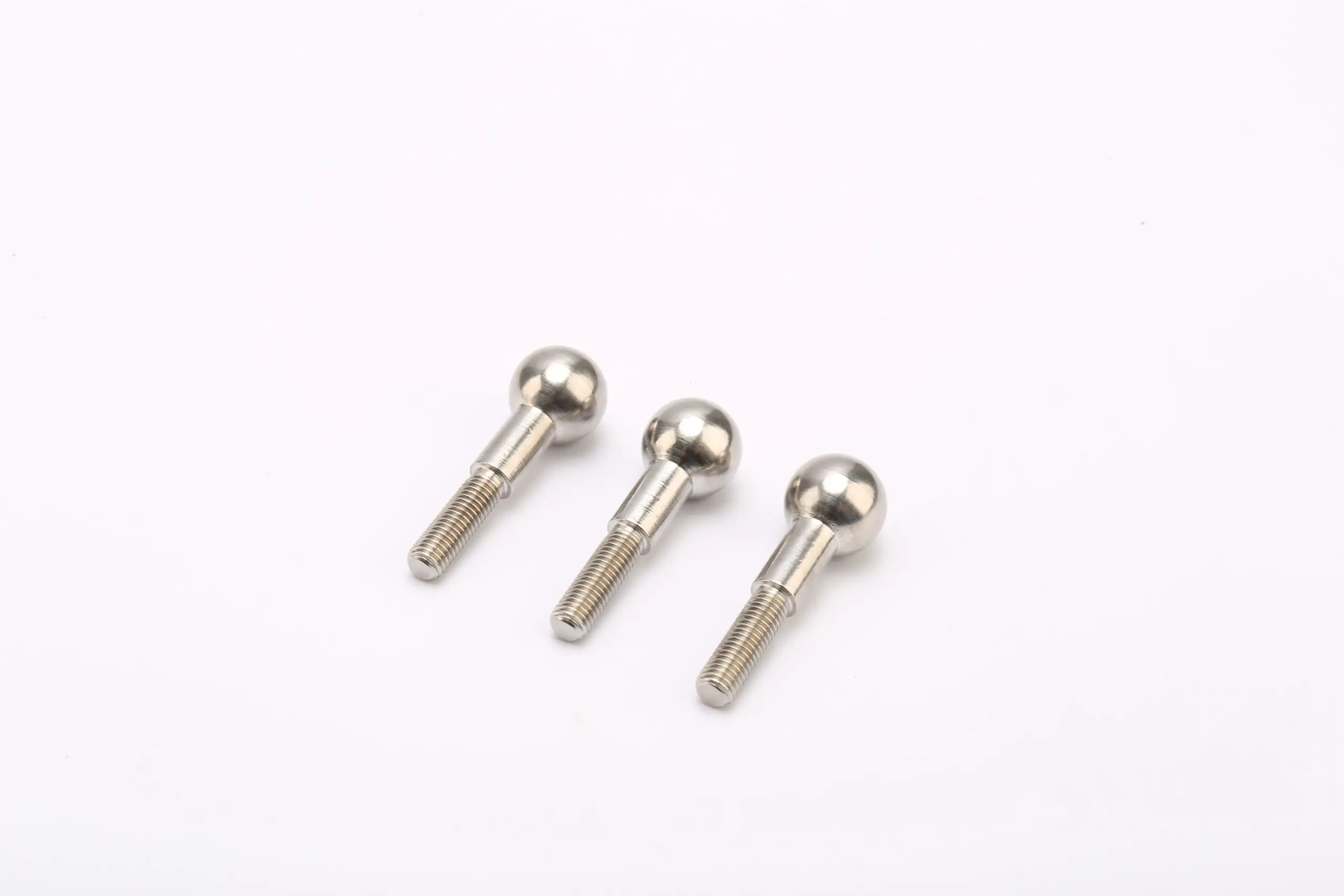

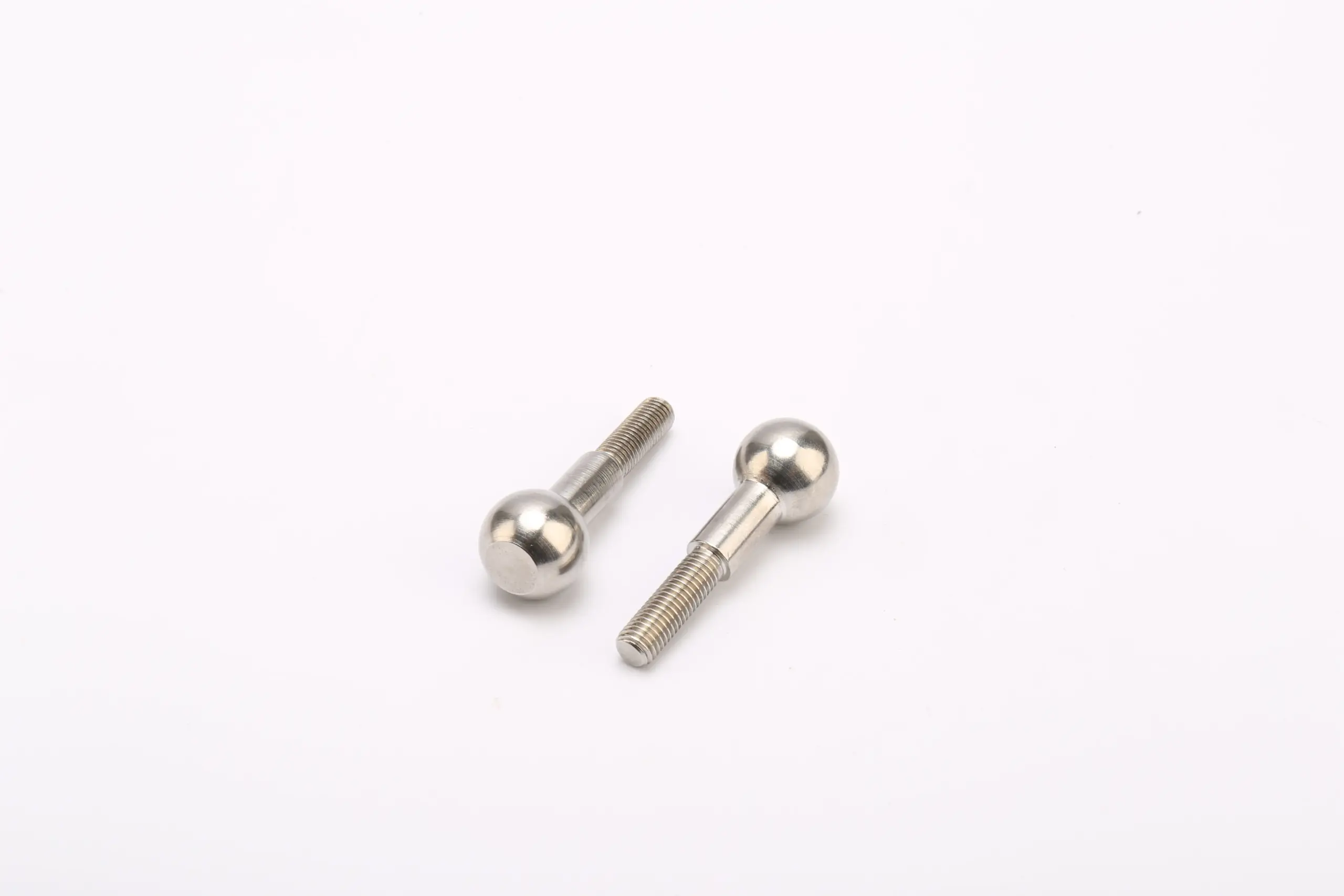

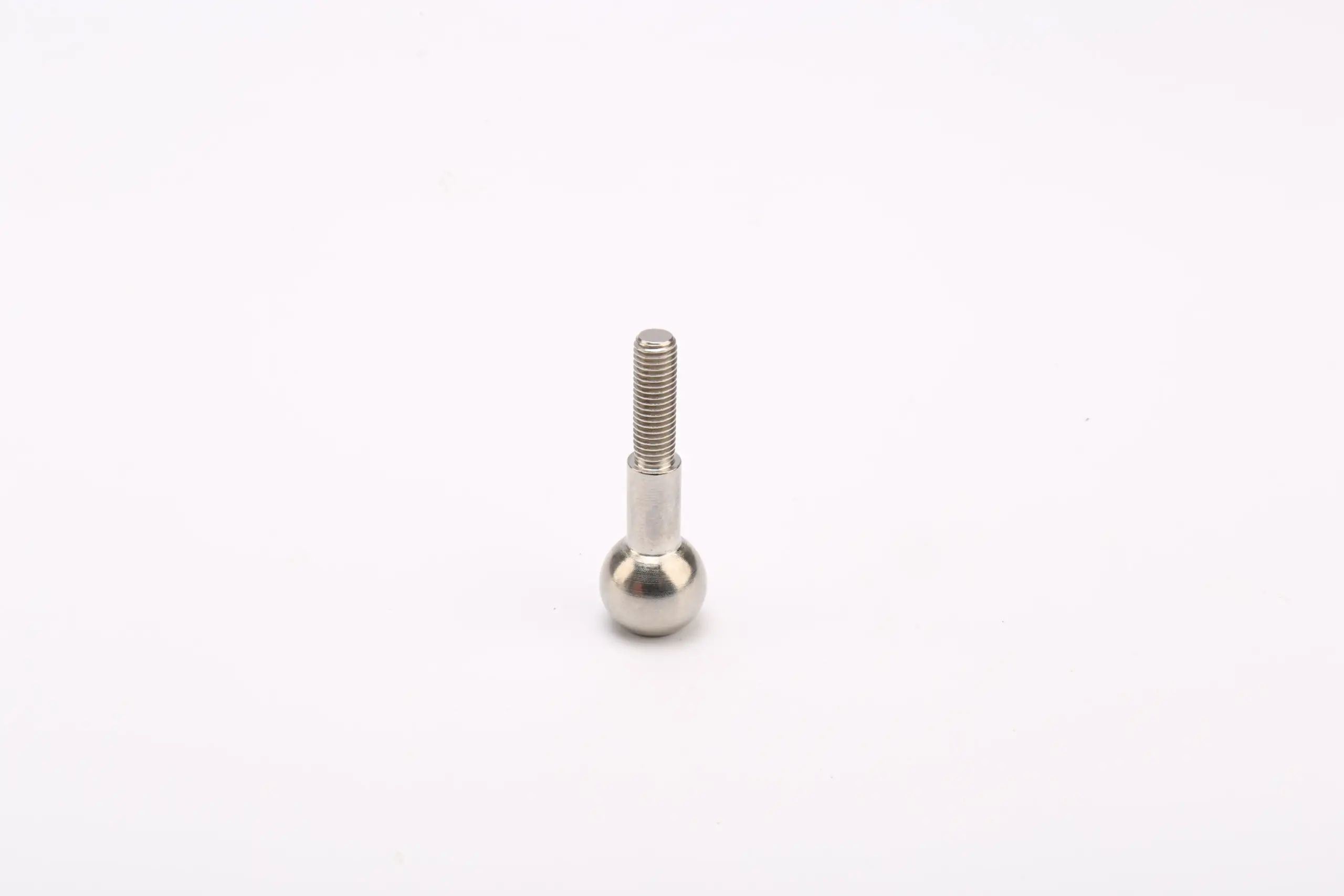

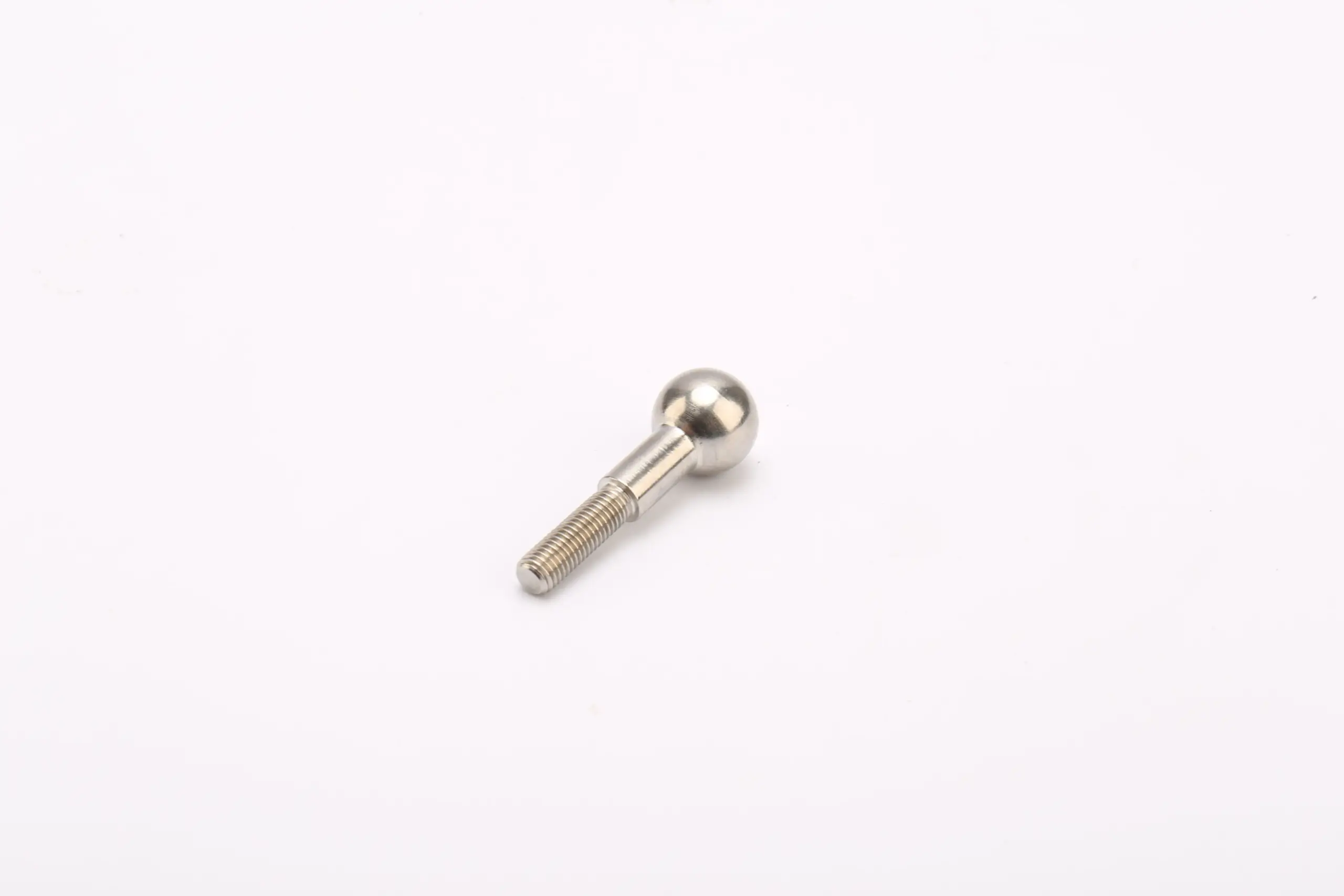

For long-shank ball head screws, use the photograph only to identify the family. Mark the features that must be measured, the ones that may be visually compared and the surfaces that must remain free of damage in the approved drawing.
Linkage and pivot use
Check the ball diameter, spherical form and the transition to the shank. The drawing should show whether the ball is a contact surface, a tool interface or only a decorative feature. A polished appearance does not establish the material or hardness.
At every change of section on long-shank ball head screws, decide whether the transition is a clearance, a locating fit, a spring point or a stress-sensitive area. The radius, chamfer and undercut should then be specified to match that function.
Thread and seating
Confirm thread size, pitch and usable length, plus any plain or stepped section. Identify the surface that seats and whether the joint should move or remain fixed. A ball head does not by itself create a pivot or a locking function.
For a part that will be serviced, check that long-shank ball head screws can be released without damaging the mating component. A recessed drive, adhesive patch or locking feature can make removal harder than installation and should be reviewed at the same time.
Finish and appearance
State the material, finish and surface condition of the ball. If the ball runs in a socket or against another component, define the contact pair and the allowable wear or marks. Avoid inferring hardness or coating from color.
Compare finish changes for long-shank ball head screws against the approved sample under the agreed viewing condition. Record the surfaces where coating build-up, color variation, marks or edge coverage are acceptable, and keep that reference with the drawing revision.
Trial movement check
Assemble the screw with the mating linkage and check the intended movement through its full range. Confirm that the ball does not bind, the thread does not bottom and the head remains accessible for adjustment or removal.
After the trial, protect the approved sample of long-shank ball head screws from handling damage and keep it with the current drawing. Any process, material or finish change should be compared with that reference before the lot is released.
FAQ
Does a ball head make the screw self-aligning?
Not automatically. Alignment depends on the mating socket, clearance and the complete linkage design.
Can the ball be used as a driver?
Only if the drawing specifies a suitable drive or grip. A smooth ball may not provide a reliable tool interface.
What should be checked for a moving joint?
Check clearance, contact, retention and the full range of movement in the actual assembly.
