Specifications

MaterialPer drawing / sample
Size RangePer drawing / sample
Head TypePer drawing / sample
Thread or ShankThreaded sections at both ends
FinishPer drawing / sample
TolerancePer drawing / sample
Made to DrawingYes

Frequently asked questions

Can this part be produced to a drawing or sample?

Yes. A dimensioned drawing or stable sample provides the head, shank or thread, material and finish details reviewed before quotation.

What drawing information should be provided?

Show the functional dimensions, material, surface finish, quantity and any assembly or inspection requirement. Photos can support the review, but a dimensioned drawing or stable sample is preferred.

How are sample requirements handled?

Any prototype or sample requirement is confirmed during quotation after the drawing or sample has been reviewed.

How is the surface finish selected?

The finish is reviewed against the material, application, appearance and corrosion requirement shown on the drawing or sample.

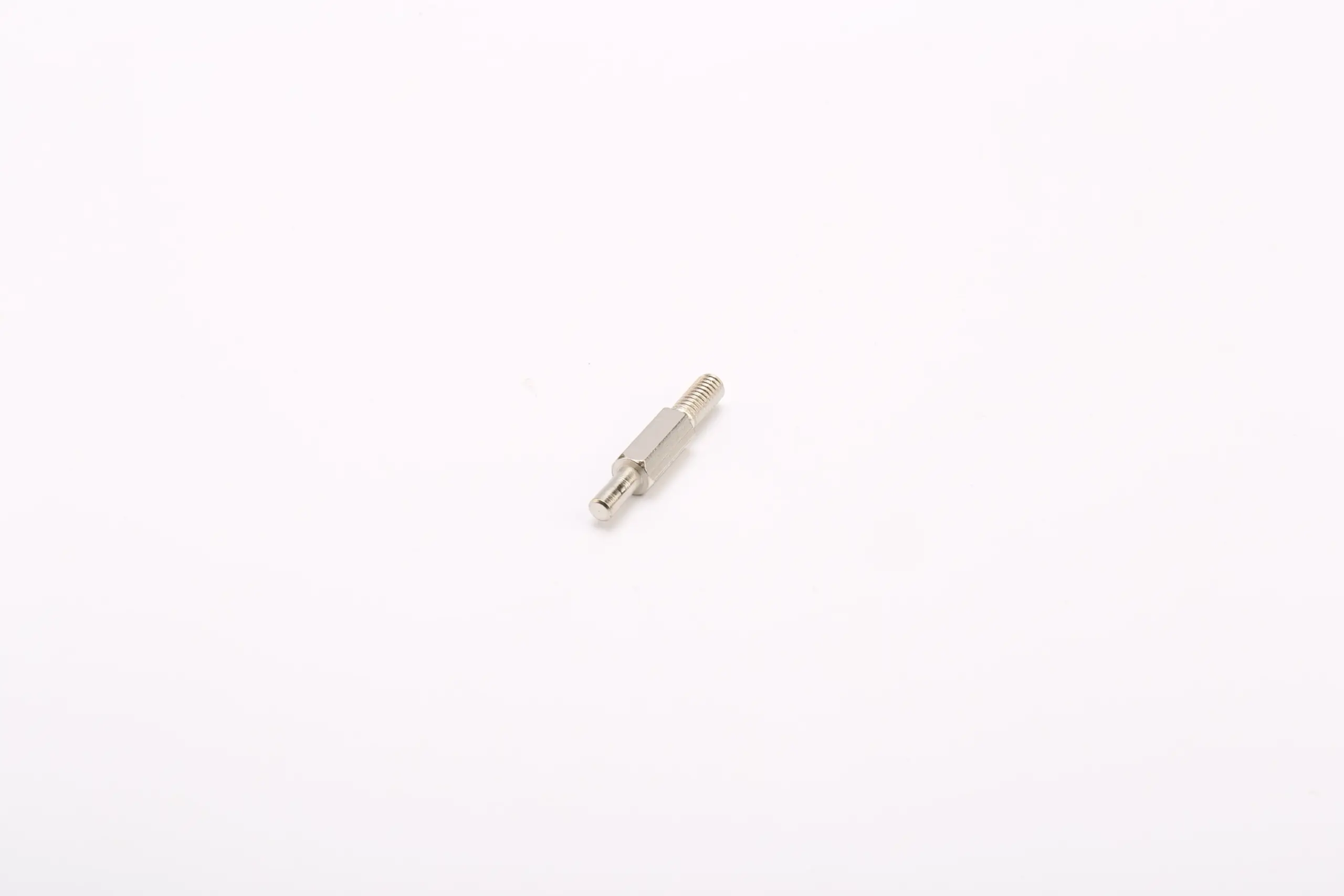

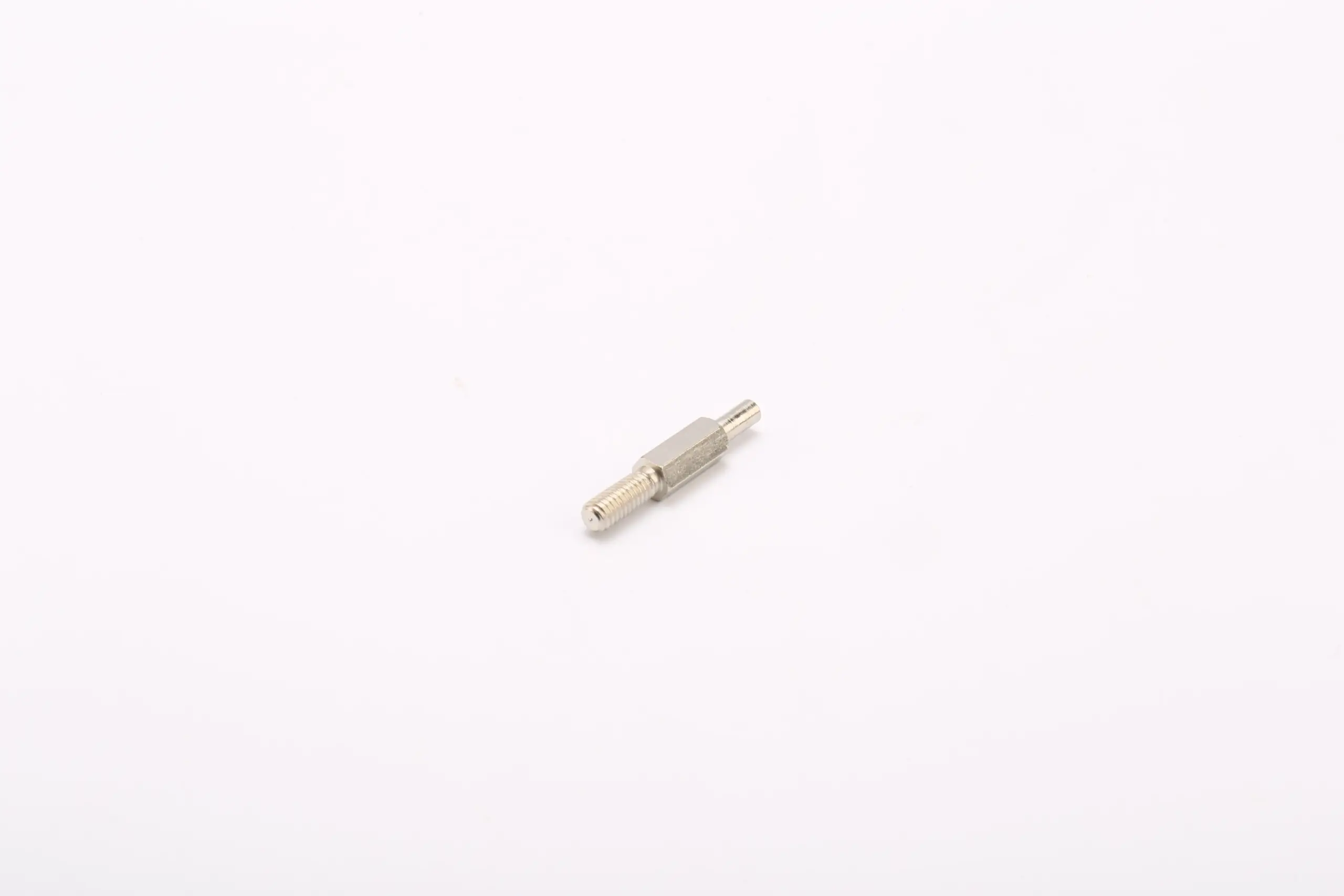

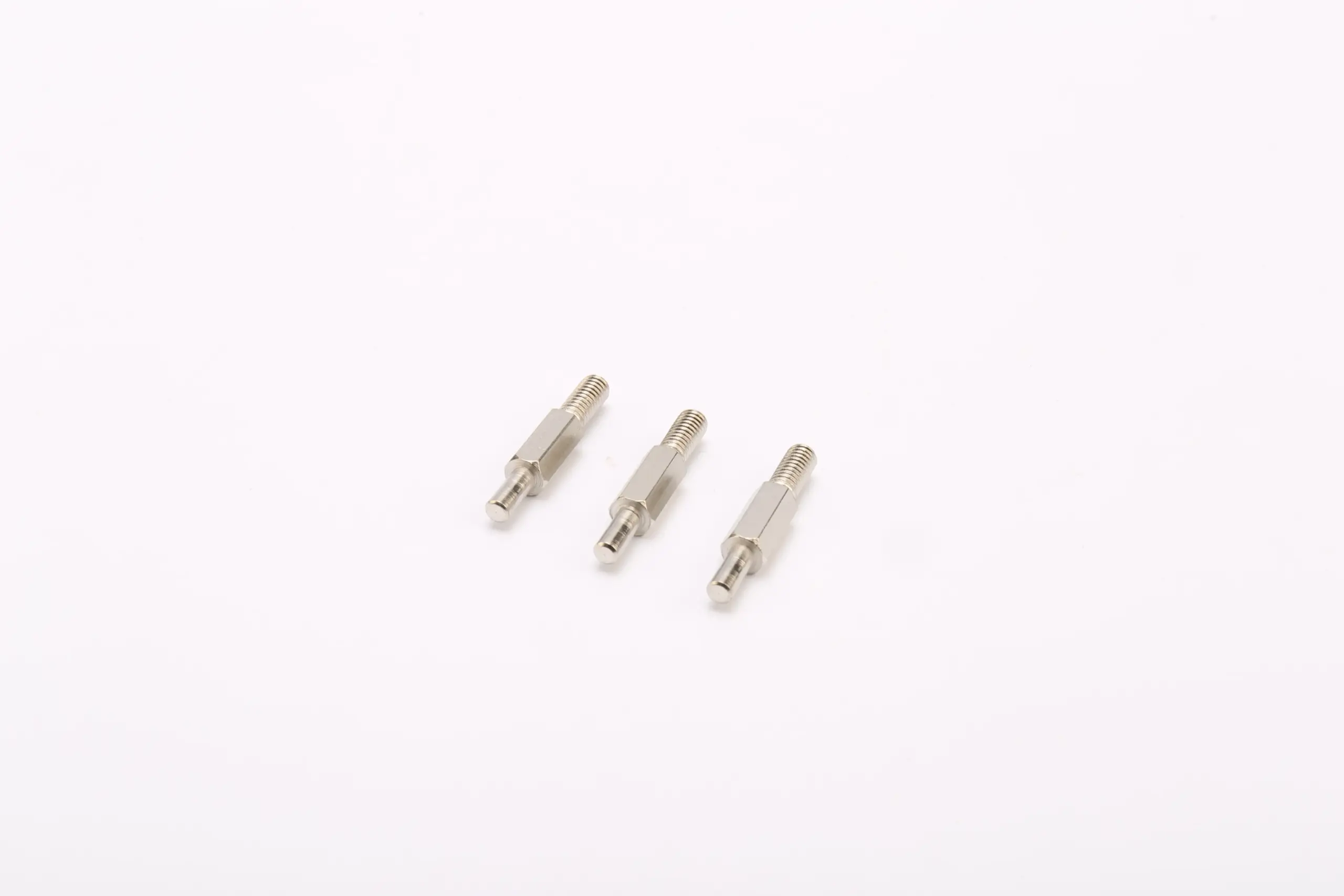

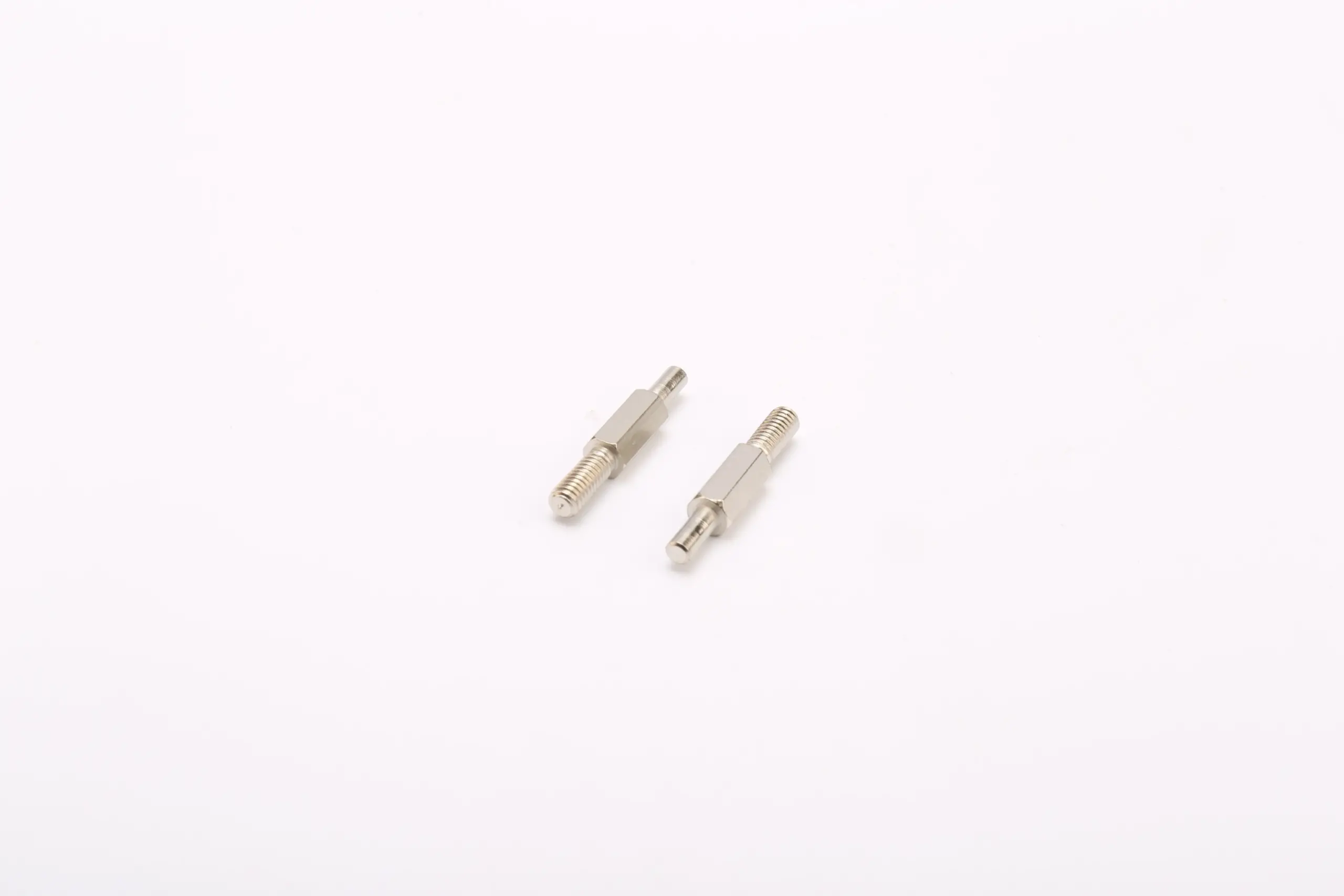

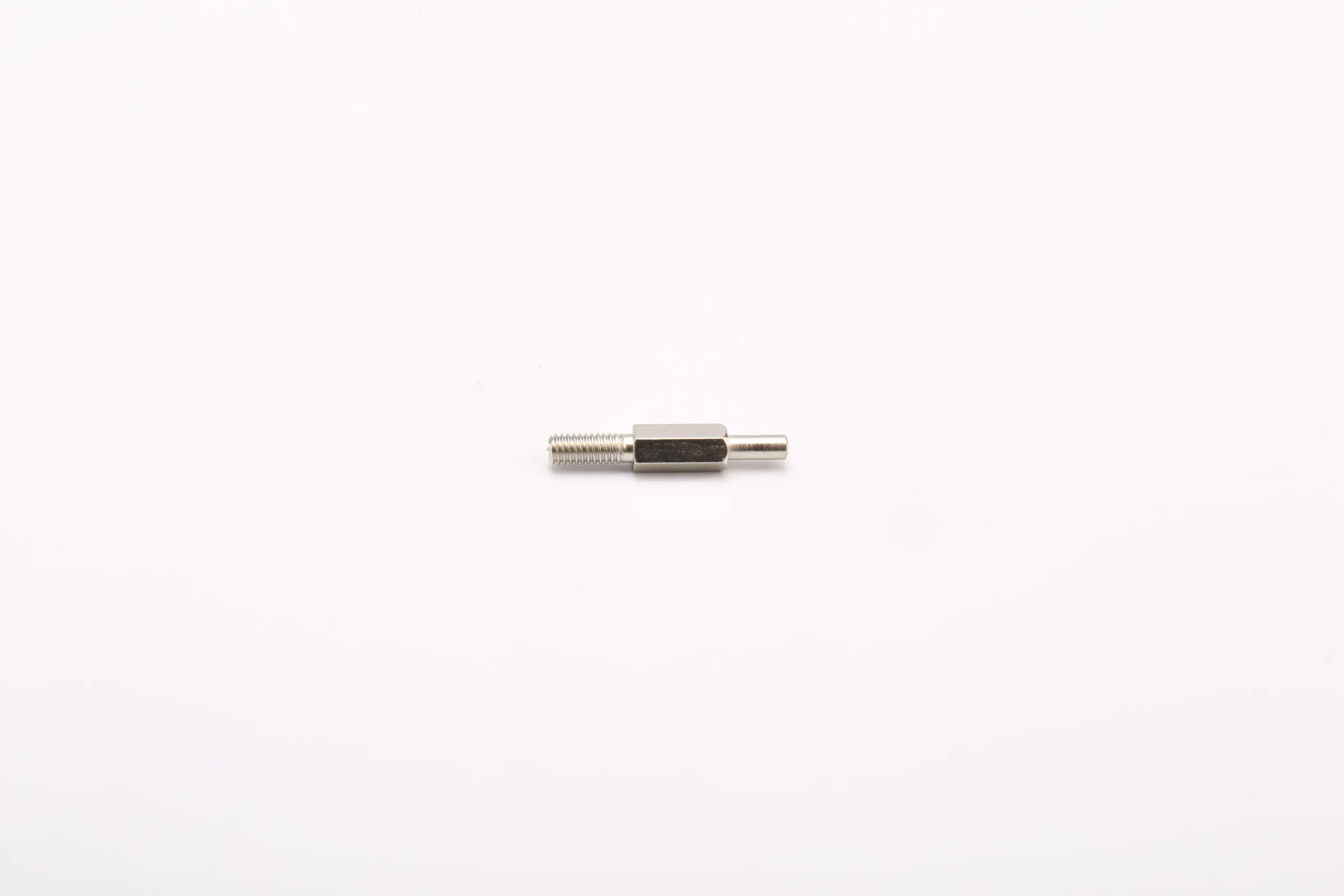

Double-end Screws / Studs

Double-end screws and studs with threaded sections at both ends for connecting or spacing components. Manufactured to custom thread and length requirements.

Product Description

Double-end screws and studs with threaded sections at both ends for connecting or spacing components. Manufactured to custom thread and length requirements. The notes below focus on the features that need to be confirmed before a drawing is approved.

Two threaded ends

This double-end screw or stud has threaded sections at both ends. The two ends may engage different components, so their thread, length and direction should be specified separately rather than inferred from the overall size.

For double-end screws / studs, the inspection datum should follow the functional feature. A locating diameter is checked from its own axis; a seating face is checked for squareness and contact. Cosmetic limits should be recorded separately.

Length and engagement

Confirm the thread size, pitch and direction at each end. Show the plain shaft, step or shoulder and identify the seating face. For a long part, straightness and end squareness can matter as much as the nominal length.

Trace the insertion path of double-end screws / studs from the first engaged feature to the final seat. Any shoulder, undercut or reduced section along that path should be dimensioned because it can change alignment or contact even when the overall size is correct.

Alignment and seating

Check that the part can be aligned with both mating features without forcing. One end may need to be engaged first and the other adjusted; define the installation direction and any access for a tool.

Review the tool path for double-end screws / studs with the surrounding parts installed. The operator needs room to engage the drive, turn it and withdraw the tool. A driver that fits a bare sample can still be blocked by a cover, cable or adjacent component.

Material and finish

State the material, finish and any thread treatment. A dark or bright appearance is not a grade. If the part connects dissimilar materials, review corrosion and the contact surfaces with the assembly designer.

Keep the material, finish and thread treatment for double-end screws / studs as separate acceptance items. The base material controls the substrate, the finish controls the surface, and a thread treatment changes the engagement or locking behavior. One does not establish the others.

Installation check

Trial the part in the actual assembly and check engagement at both ends. Confirm that the intended face seats and that the part does not bottom prematurely. Inspect the threads after removal.

Use the first sample of double-end screws / studs to check what a dimensional report cannot show: access, alignment, seating and unintended contact. Record the assembly sequence and the tools used so the result can be repeated.

FAQ

Can both ends have different threads?

Yes, if the drawing defines each thread and the orientation. Do not assume that the ends are identical.

Is overall length enough to specify the part?

No. The functional thread and shaft lengths, steps and seating faces also need dimensions.

What should be checked during trial assembly?

Check engagement, alignment, seating and the absence of bottoming or interference.
