Specifications

MaterialPer drawing / sample
Size RangePer drawing / sample
Head TypePer drawing / sample
Thread or ShankThreaded set-screw body
FinishLight finish
TolerancePer drawing / sample
Made to DrawingYes

Frequently asked questions

Can this part be produced to a drawing or sample?

Yes. A dimensioned drawing or stable sample provides the head, shank or thread, material and finish details reviewed before quotation.

What drawing information should be provided?

Show the functional dimensions, material, surface finish, quantity and any assembly or inspection requirement. Photos can support the review, but a dimensioned drawing or stable sample is preferred.

How are sample requirements handled?

Any prototype or sample requirement is confirmed during quotation after the drawing or sample has been reviewed.

How is the surface finish selected?

The finish is reviewed against the material, application, appearance and corrosion requirement shown on the drawing or sample.

Light-Finish Set Screws

Light-finish set screws with a compact threaded body for shaft locking, adjustment and precision positioning.

Product Description

Light-finish set screws with a compact threaded body for shaft locking, adjustment and precision positioning. The notes below focus on the features that need to be confirmed before a drawing is approved.

Compact body and light finish

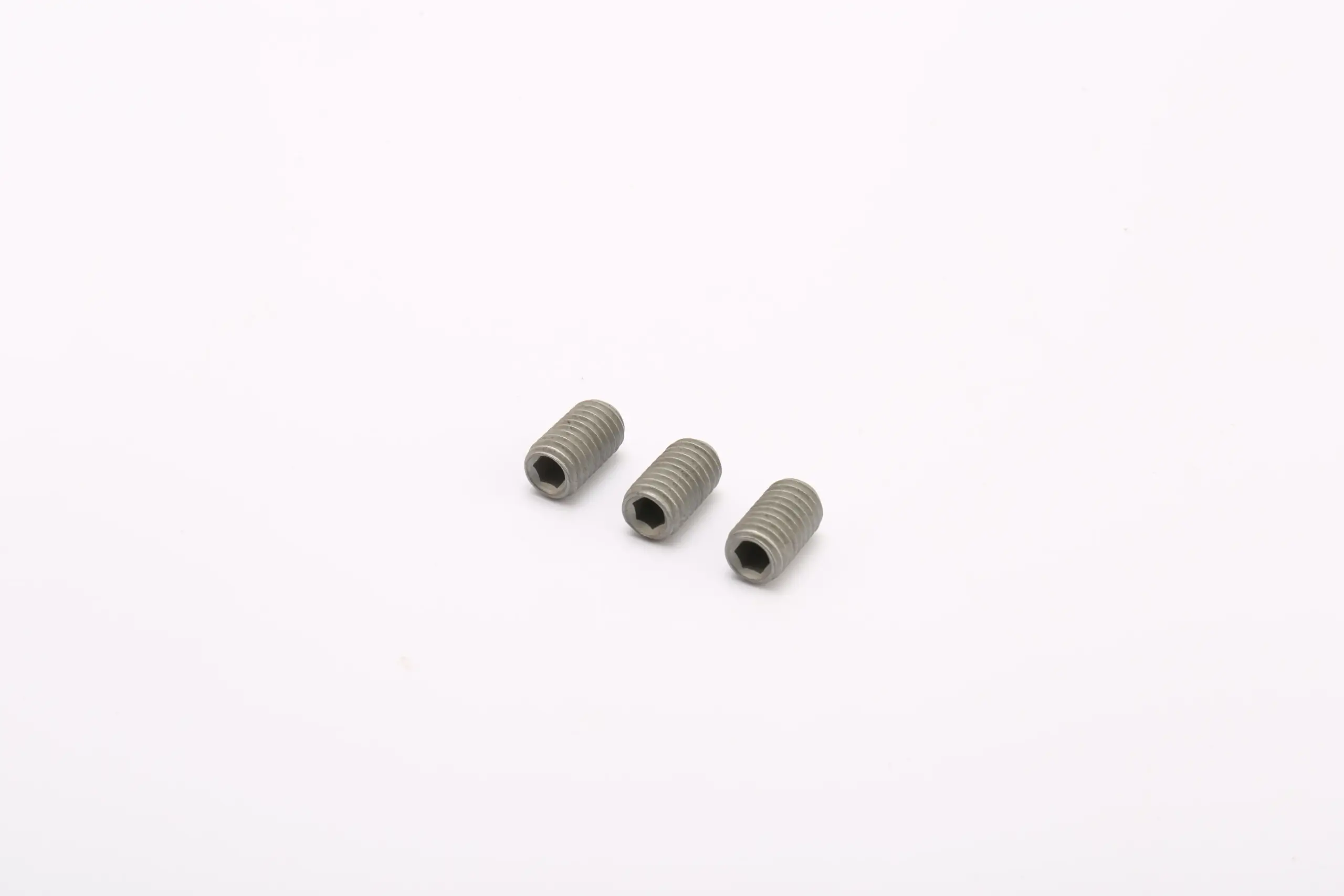

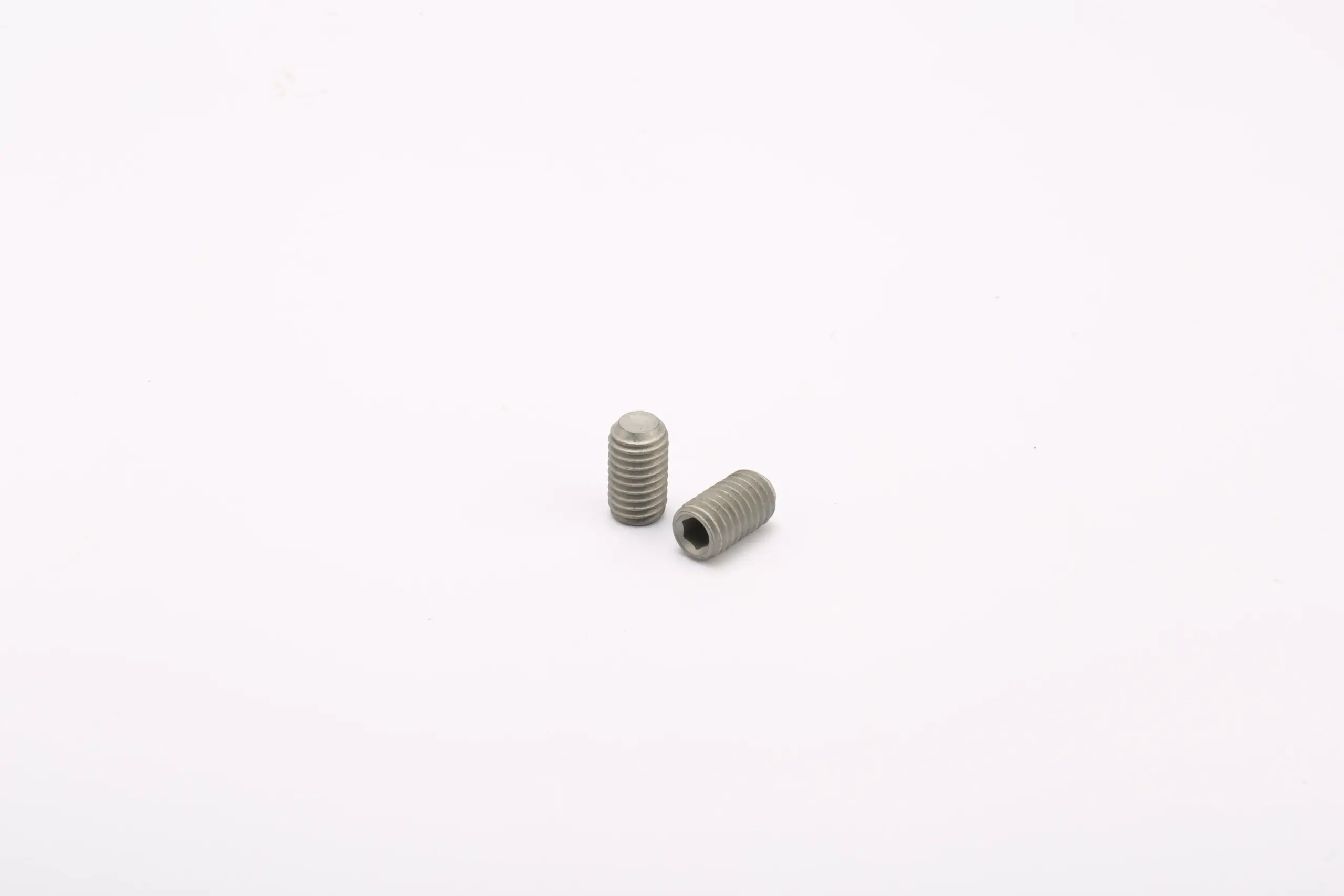

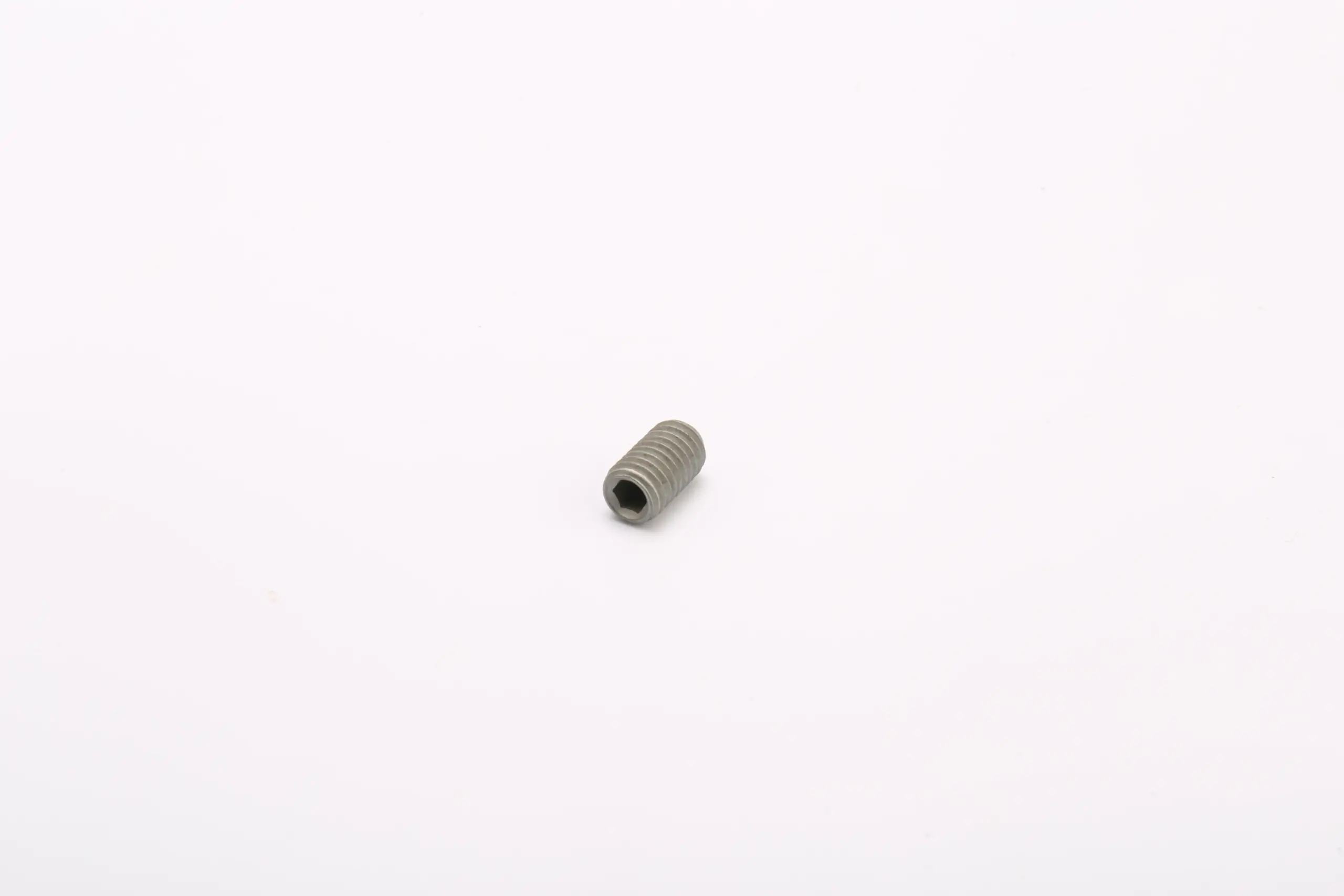

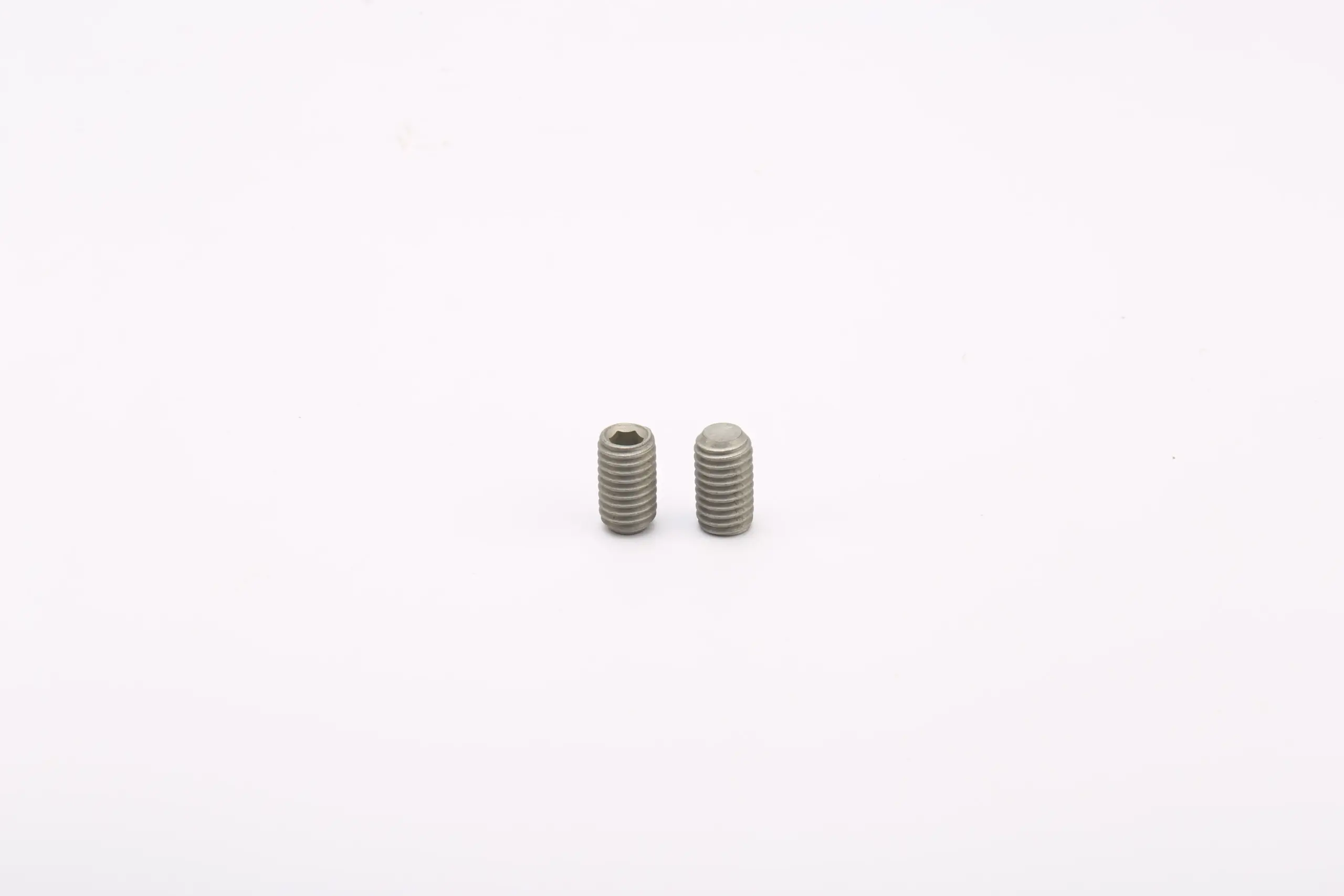

This light-finish set screw has a compact threaded body for a shallow clamping point. The bright appearance makes handling and visual inspection easier, but it does not establish the alloy, hardness or coating.

For light-finish set screws, use the photograph only to identify the family. Mark the features that must be measured, the ones that may be visually compared and the surfaces that must remain free of damage in the approved drawing.

End contact and thread

The contact end is the working surface. State whether it is flat, cup, cone or another form, and identify the shaft or component it bears on. A small change in end geometry can change the contact area and the risk of indentation.

At every change of section on light-finish set screws, decide whether the transition is a clearance, a locating fit, a spring point or a stress-sensitive area. The radius, chamfer and undercut should then be specified to match that function.

Tool access

The drive must be accessible before the screw is turned. Check the key engagement, the approach angle and the clearance around the head or socket. A short body can be difficult to retrieve if the tool disengages inside a deep bore.

For a part that will be serviced, check that light-finish set screws can be released without damaging the mating component. A recessed drive, adhesive patch or locking feature can make removal harder than installation and should be reviewed at the same time.

Material and finish

Specify the base material, finish and any hardness or thread treatment separately. A light finish may be decorative, a cleaning aid or a coating; the drawing must say which. If the screw bears on a softer shaft, review the contact surface.

Compare finish changes for light-finish set screws against the approved sample under the agreed viewing condition. Record the surfaces where coating build-up, color variation, marks or edge coverage are acceptable, and keep that reference with the drawing revision.

Trial assembly

Trial the screw in the actual component. Check that it reaches the contact point without bottoming, that the component remains in position and that the key can be removed without disturbing the setting. Inspect the end for flattening or damage.

After the trial, protect the approved sample of light-finish set screws from handling damage and keep it with the current drawing. Any process, material or finish change should be compared with that reference before the lot is released.

FAQ

Does a light finish mean stainless steel?

No. The finish and base material are separate. State the alloy and surface treatment on the drawing.

Can a compact set screw use a long key?

Only if the surrounding assembly provides enough clearance. Check the tool path before selecting the key.

What should be checked after tightening?

Check contact, component position, thread engagement and whether the end has deformed the mating surface.
