Specifications

MaterialPer drawing / sample
Size RangePer drawing / sample
Head TypePer drawing / sample
Thread or ShankThreaded set-screw body
FinishPer drawing / sample
TolerancePer drawing / sample
Made to DrawingYes

Frequently asked questions

Can this part be produced to a drawing or sample?

Yes. A dimensioned drawing or stable sample provides the head, shank or thread, material and finish details reviewed before quotation.

What drawing information should be provided?

Show the functional dimensions, material, surface finish, quantity and any assembly or inspection requirement. Photos can support the review, but a dimensioned drawing or stable sample is preferred.

How are sample requirements handled?

Any prototype or sample requirement is confirmed during quotation after the drawing or sample has been reviewed.

How is the surface finish selected?

The finish is reviewed against the material, application, appearance and corrosion requirement shown on the drawing or sample.

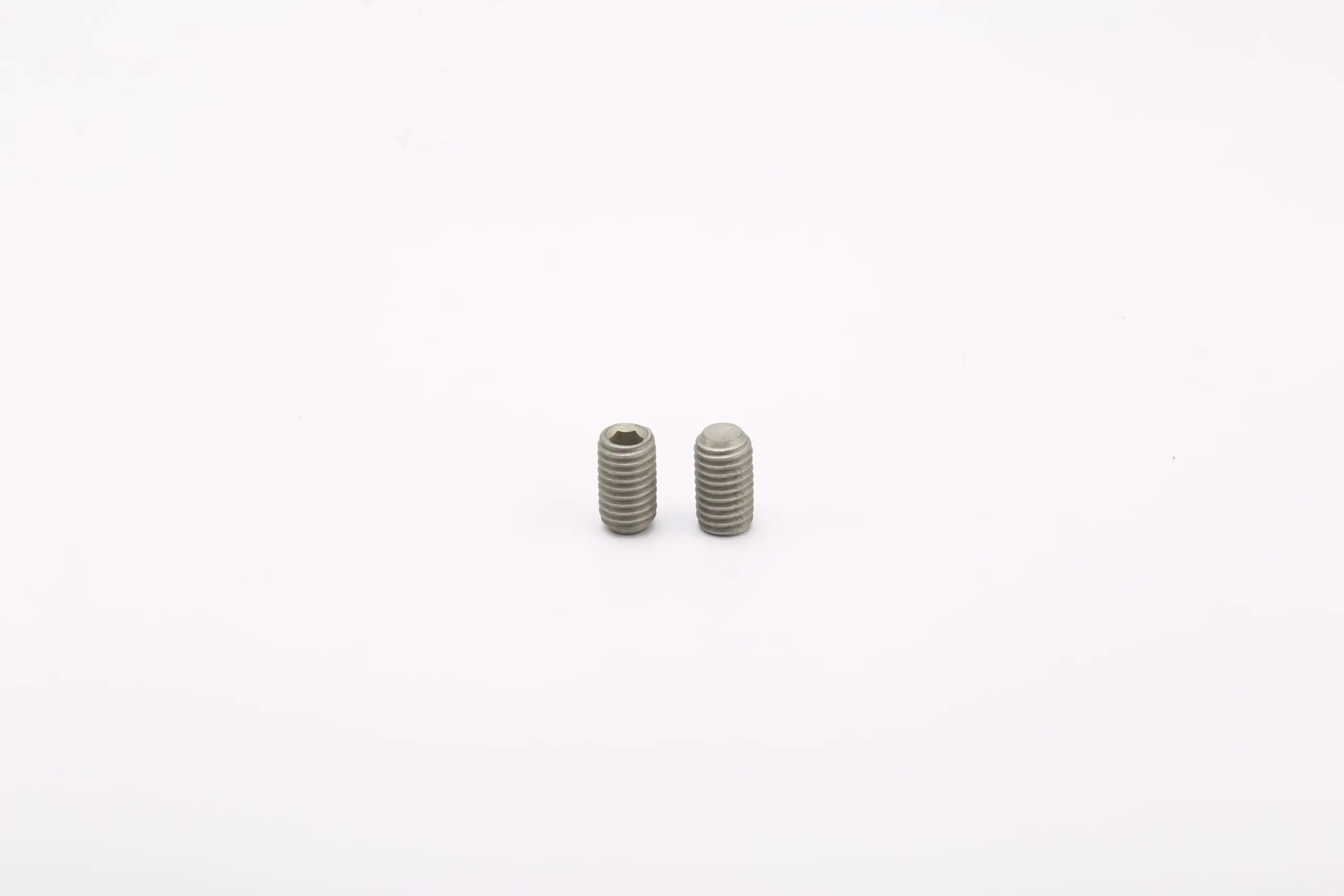

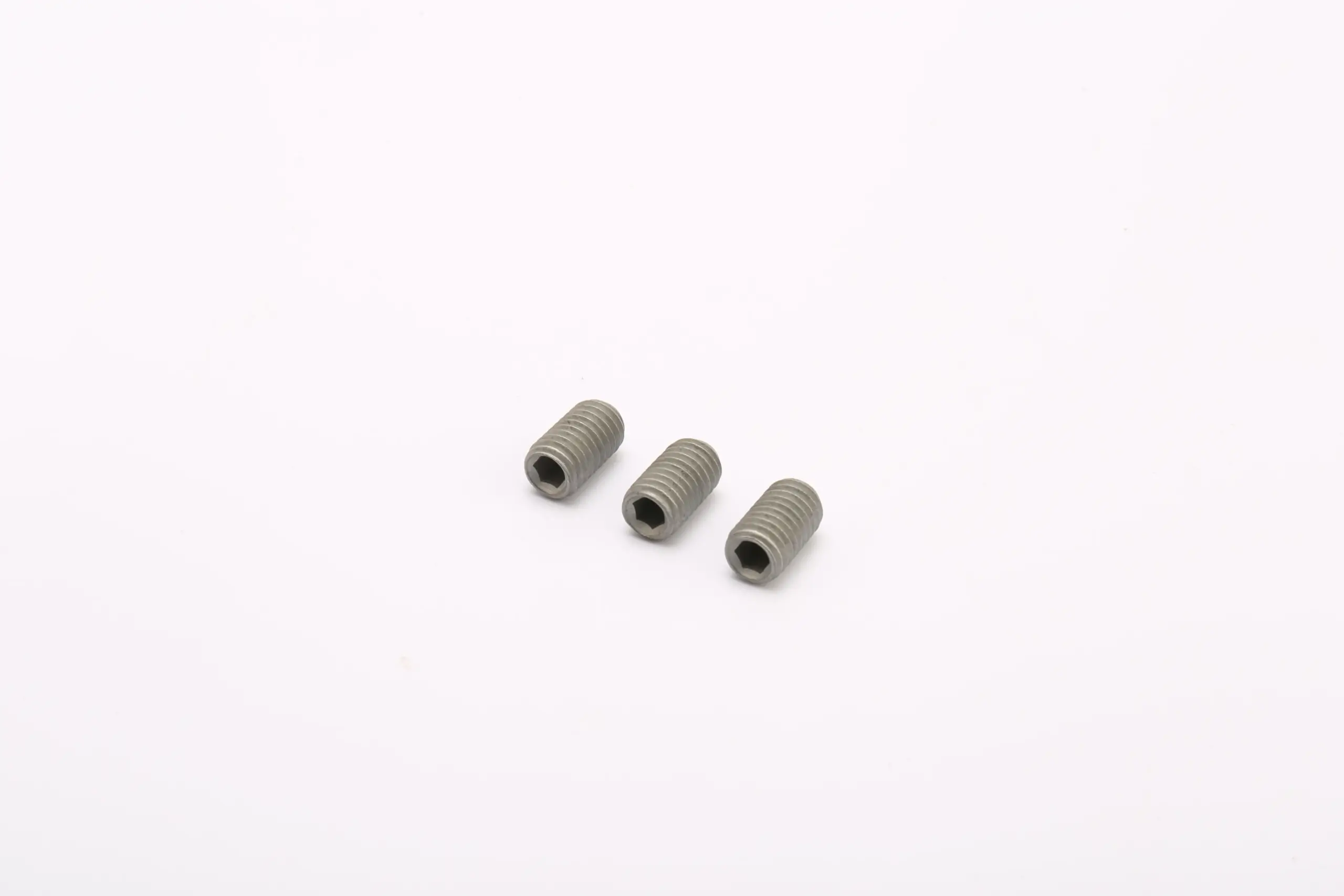

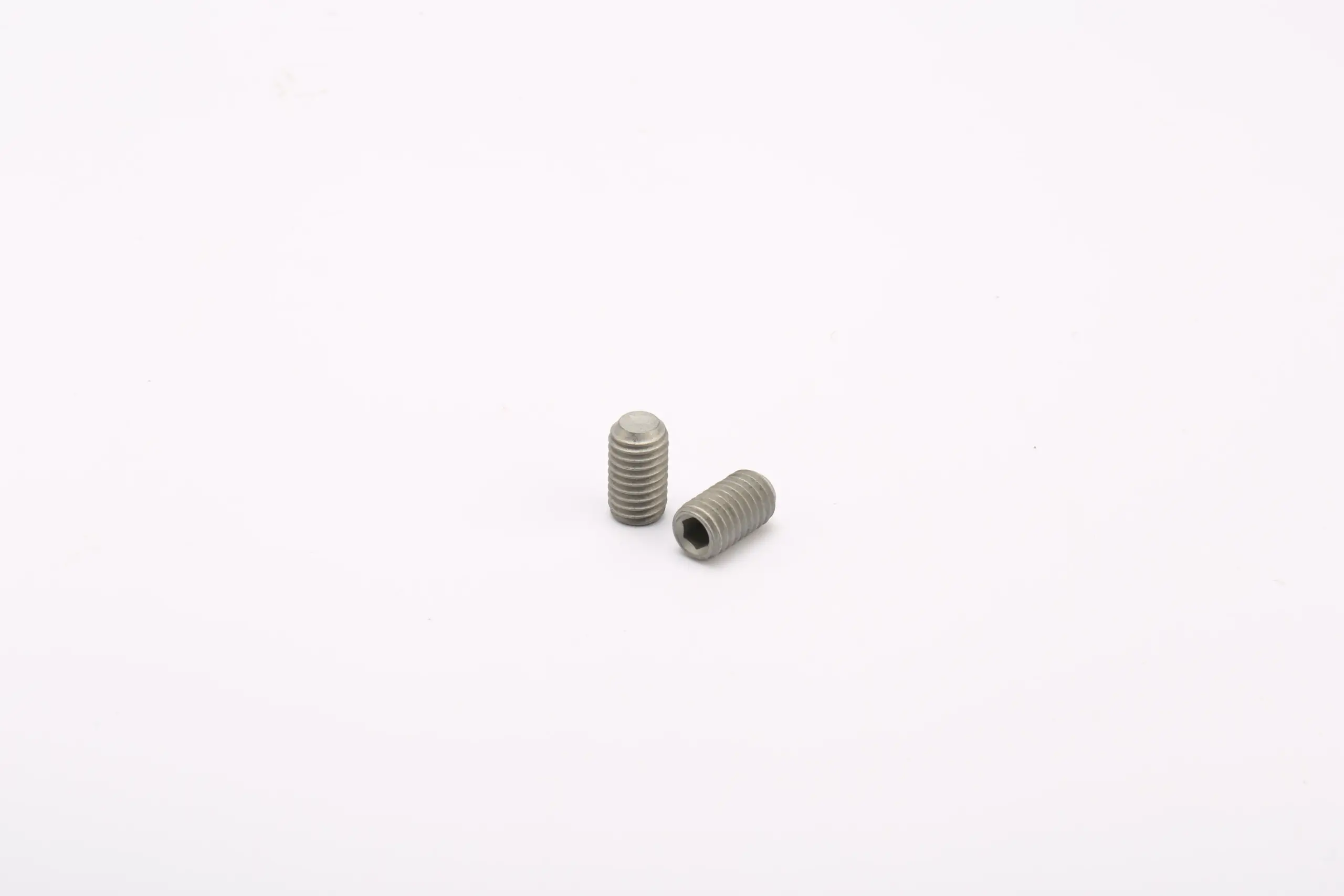

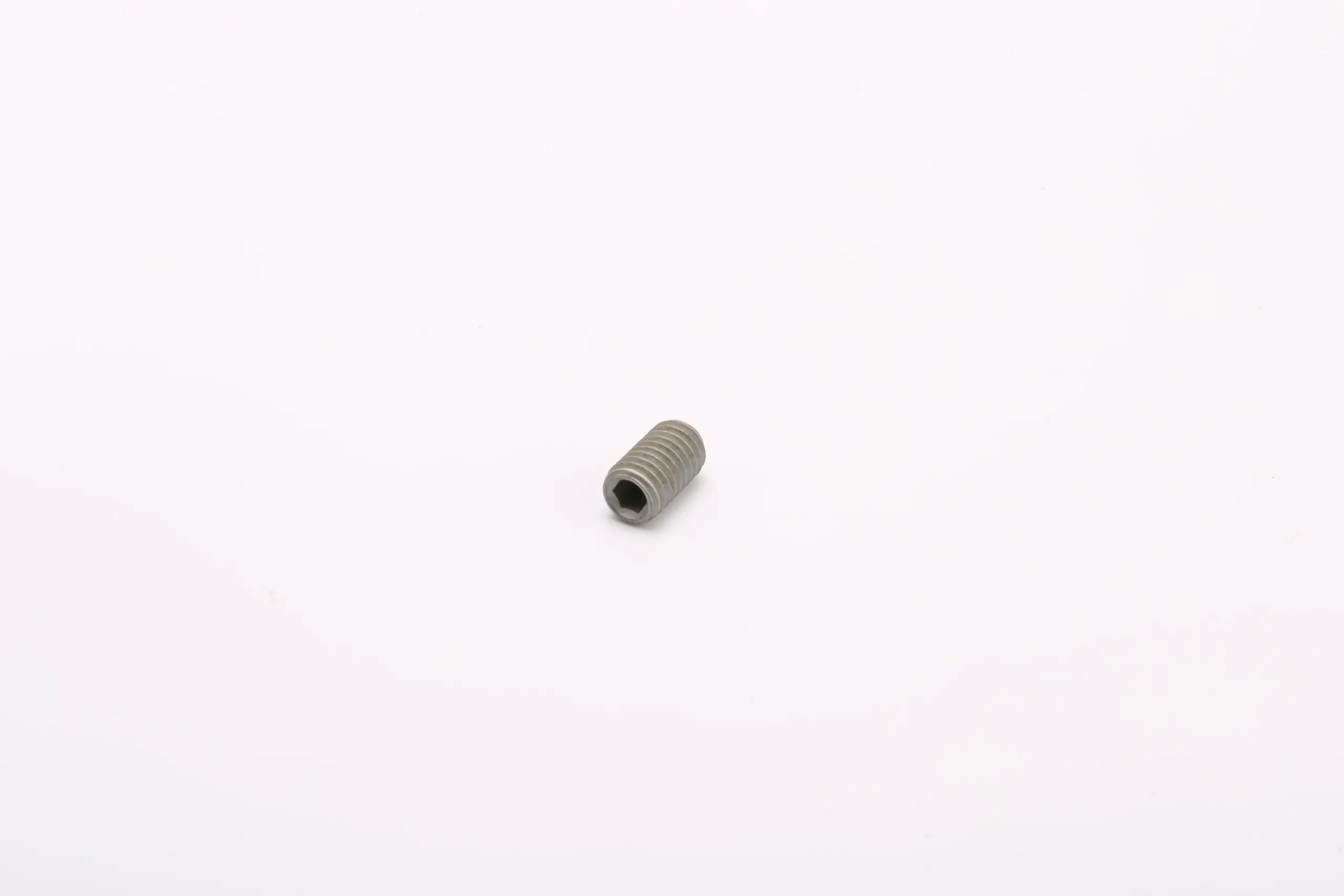

Hex socket set screws

Hex socket set screws with an internal hex drive for securing components against shafts or mating parts.

Product Description

Hex socket set screws with an internal hex drive for securing components against shafts or mating parts. The notes below focus on the features that need to be confirmed before a drawing is approved.

Socket and contact end

This hex socket set screw uses an internal hex drive to clamp a component against a shaft or mating part. The socket is a drive feature, not a locking mechanism, and the contact end should be defined independently.

For hex socket set screws, use the photograph only to identify the family. Mark the features that must be measured, the ones that may be visually compared and the surfaces that must remain free of damage in the approved drawing.

Thread engagement

Confirm the thread size, pitch and engaged length, then identify the end form that touches the mating surface. A cup, cone, flat or other end can create a different contact mark and holding behavior. The drawing should show the end geometry and any allowable deformation.

At every change of section on hex socket set screws, decide whether the transition is a clearance, a locating fit, a spring point or a stress-sensitive area. The radius, chamfer and undercut should then be specified to match that function.

Clamping point

The key must be fully engaged before turning. Check the approach angle, the socket depth and the clearance for the key body. A short key or a worn socket can damage the drive and make later adjustment difficult.

For a part that will be serviced, check that hex socket set screws can be released without damaging the mating component. A recessed drive, adhesive patch or locking feature can make removal harder than installation and should be reviewed at the same time.

Material and finish

State the base material, finish and any hardness or thread treatment. A bright or dark surface is not a material grade. If the screw contacts a shaft, review the two materials and the contact pressure at the end.

Compare finish changes for hex socket set screws against the approved sample under the agreed viewing condition. Record the surfaces where coating build-up, color variation, marks or edge coverage are acceptable, and keep that reference with the drawing revision.

Trial assembly

Trial the screw in the actual assembly. Check that it reaches the contact point without bottoming, holds the component and leaves the socket usable for adjustment. Inspect the shaft and screw end for unintended marks.

After the trial, protect the approved sample of hex socket set screws from handling damage and keep it with the current drawing. Any process, material or finish change should be compared with that reference before the lot is released.

FAQ

Does the socket lock the screw?

No. The socket only provides a drive. A separate locking method may be required for the joint.

Can the contact end be changed?

Yes, only when the new end geometry is reviewed against the mating surface and shown on the drawing.

What should be checked after installation?

Check contact, shaft position, socket condition and whether the screw can be adjusted or removed.
