Specifications

MaterialPer drawing / sample
Size RangePer drawing / sample
Head TypePer drawing / sample
Thread or ShankThreaded set-screw body
FinishDark finish
TolerancePer drawing / sample
Made to DrawingYes

Frequently asked questions

Can this part be produced to a drawing or sample?

Yes. A dimensioned drawing or stable sample provides the head, shank or thread, material and finish details reviewed before quotation.

What drawing information should be provided?

Show the functional dimensions, material, surface finish, quantity and any assembly or inspection requirement. Photos can support the review, but a dimensioned drawing or stable sample is preferred.

How are sample requirements handled?

Any prototype or sample requirement is confirmed during quotation after the drawing or sample has been reviewed.

How is the surface finish selected?

The finish is reviewed against the material, application, appearance and corrosion requirement shown on the drawing or sample.

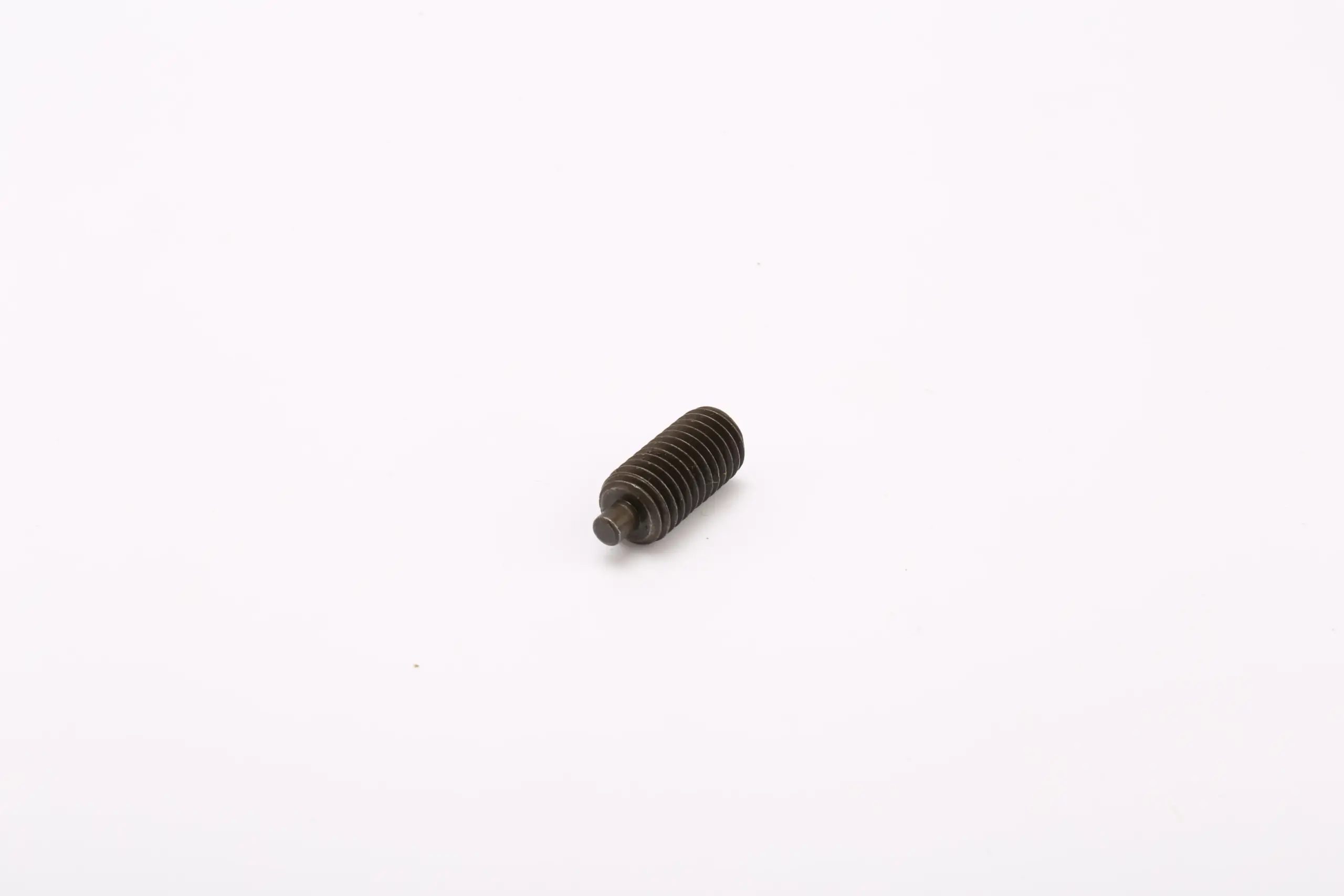

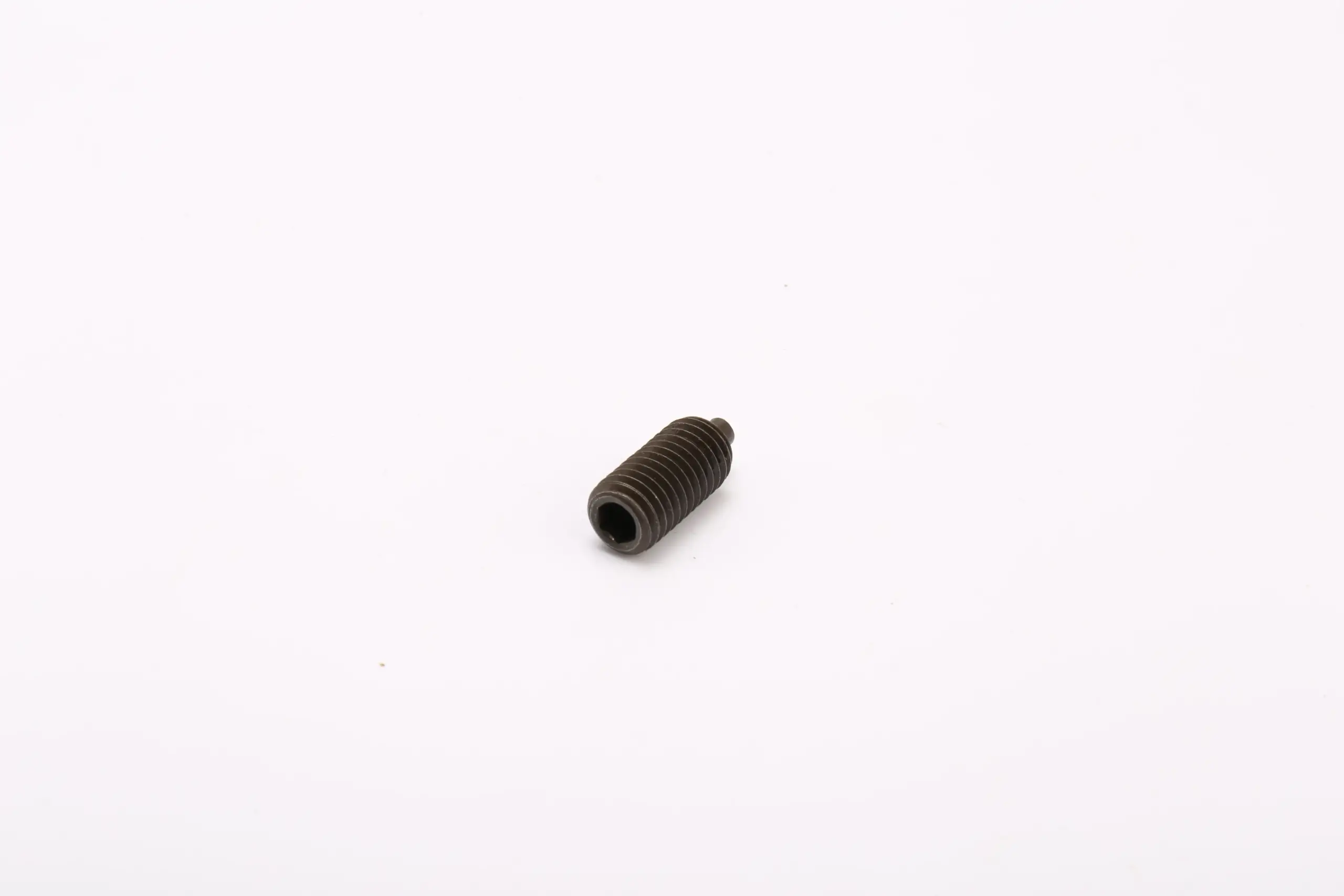

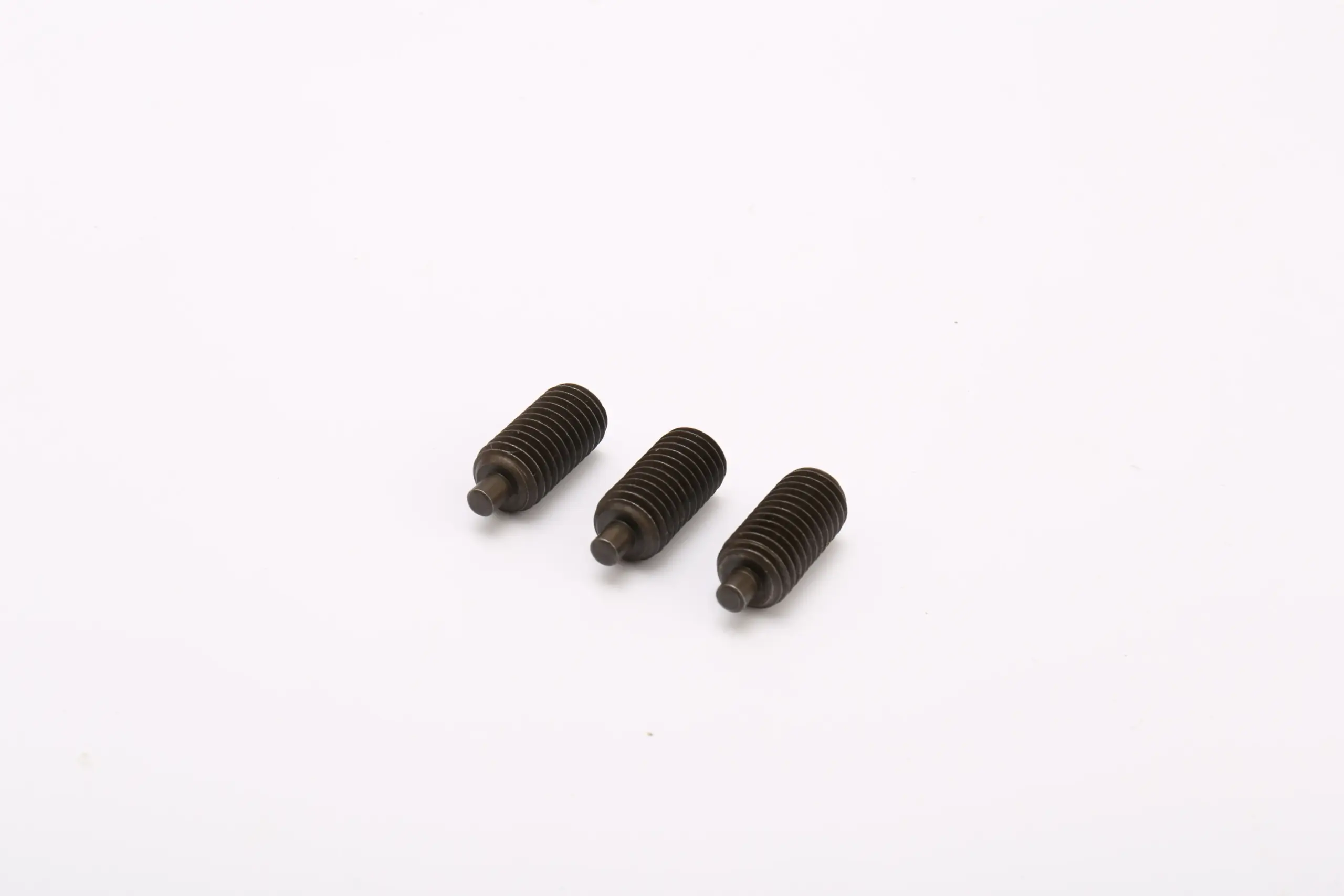

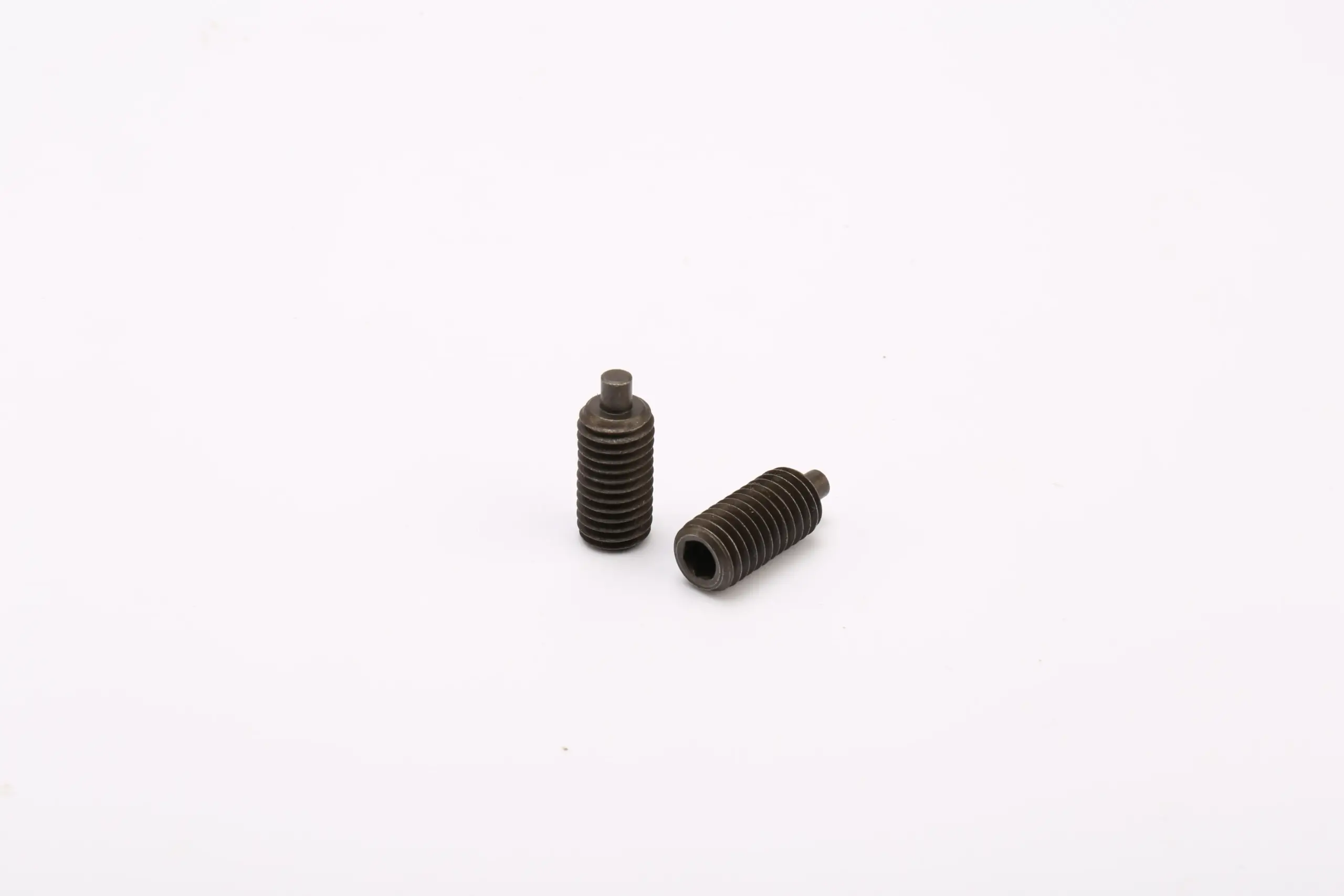

Dark-Finish Long Set Screws

Dark-finish long set screws with a fully threaded body for deeper reach and secure shaft locking.

Product Description

Dark-finish long set screws with a fully threaded body for deeper reach and secure shaft locking. The notes below focus on the features that need to be confirmed before a drawing is approved.

Long body and full thread

This dark-finish long set screw uses a fully threaded body to reach a deeper clamping point. The extra length can be useful, but it also makes straightness, thread engagement and the position of the contact end more important.

Begin with the interface that receives dark-finish long set screws. The mating bore, panel or bracket establishes which surfaces locate and which clear. A dimension that is correct on the screw can still fail at that interface.

Reach and end contact

Define the functional thread length and the depth of the mating thread. A long screw can bottom before the component is secured, or it can leave too few engaged threads if it is run only partway in. The end form and its contact surface should be shown separately.

Use functional lengths for dark-finish long set screws rather than overall length wherever possible. The distance from the seating face to the first thread, the length of a locating step and the depth of a bore all describe how the part behaves in the assembly.

Tool access

The driver needs a clear path to the socket. In a deep or recessed hole, check the key length, the available rotation and whether the key can be withdrawn after tightening. A long body may also increase the effect of any bend on tool engagement.

Define the assembly orientation for dark-finish long set screws and the surfaces that must remain accessible. If the part can be installed in more than one direction, say how the correct orientation is recognized and whether the thread or a keyed feature prevents reversal.

Material and finish

State the base material, finish and any hardness or thread treatment. A dark color may come from an oxide, coating or base material and is not a grade. If the screw contacts a shaft, review wear and galling at the contact point.

When dark-finish long set screws will see moisture, cleaning agents or a different metal, state the exposure rather than selecting a finish from color alone. Functional surfaces such as threads, bores and locating diameters may need different protection from cosmetic surfaces.

Trial assembly

Trial the screw through the full adjustment or clamping range. Confirm that it reaches the contact point without bottoming, holds the component and can be released. Inspect the thread and end for damage after repeated adjustment.

Production inspection of dark-finish long set screws should follow the functions that control assembly. Check the locating features, the thread or bore and the seating face, then add the visible edge and surface checks that matter for the finished part.

FAQ

Does a fully threaded body mean full load capacity?

No. The joint, engaged length and material determine the applicable load. The thread length alone is not a rating.

Can the screw be cut to length?

Only with an approved process that preserves the thread, end form and finish. Cutting can create burrs or expose the substrate.

What should be checked in a deep hole?

Check straightness, key access, thread engagement, bottom clearance and the contact end.
