Short brass screws with a drilled hole for wire, pin or security applications. Custom dimensions and finishes are available. The notes below focus on the features that need to be confirmed before a drawing is approved.

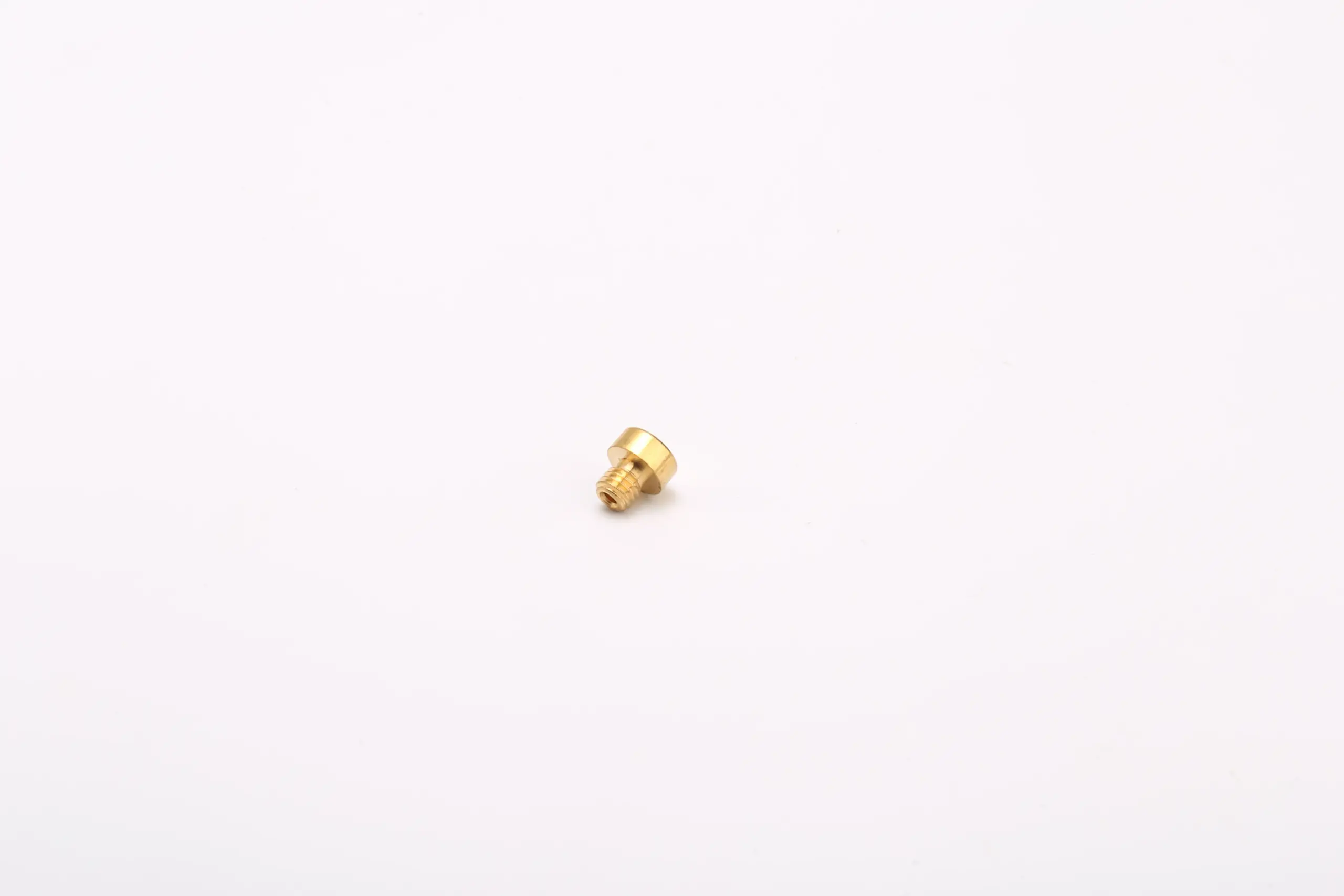

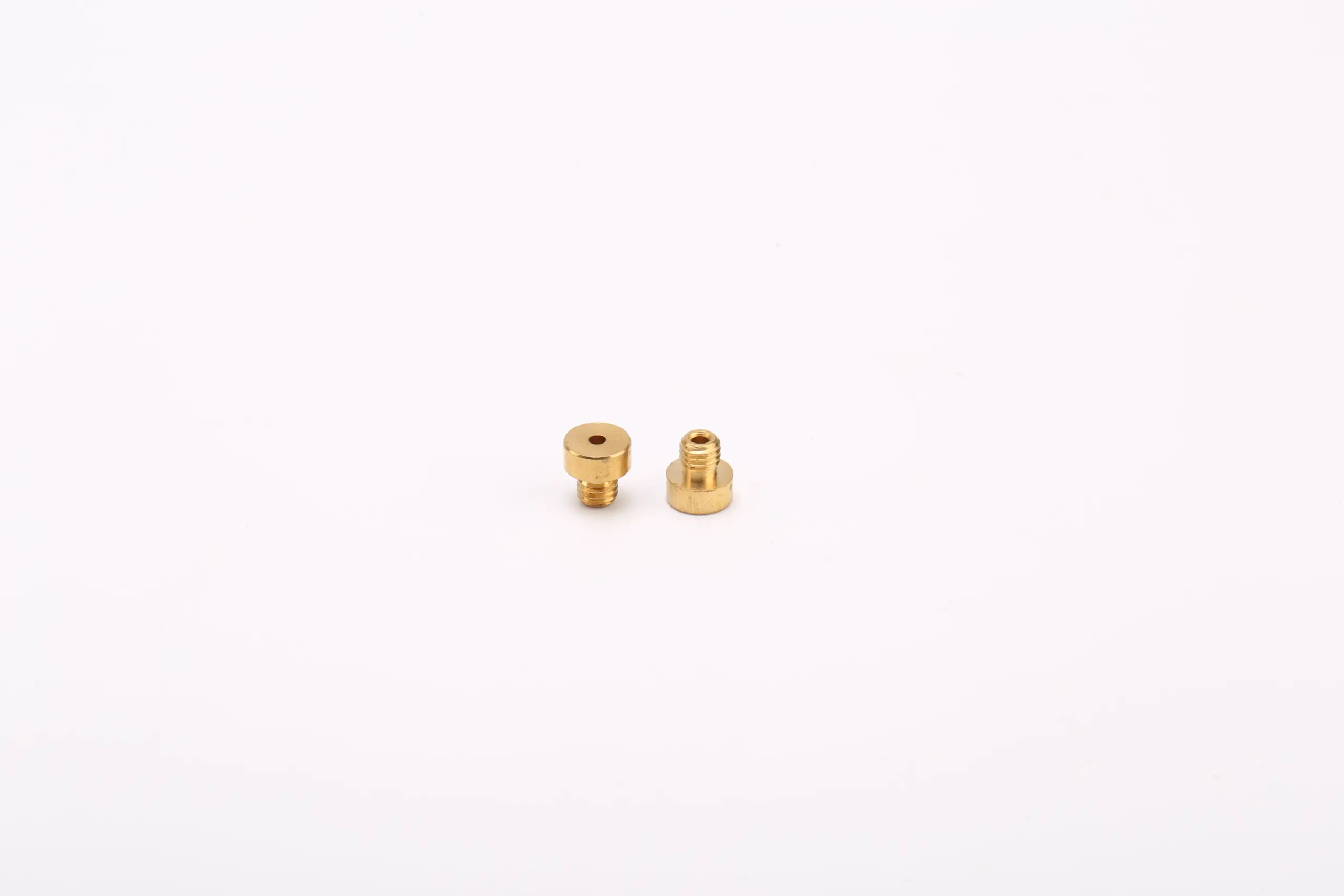

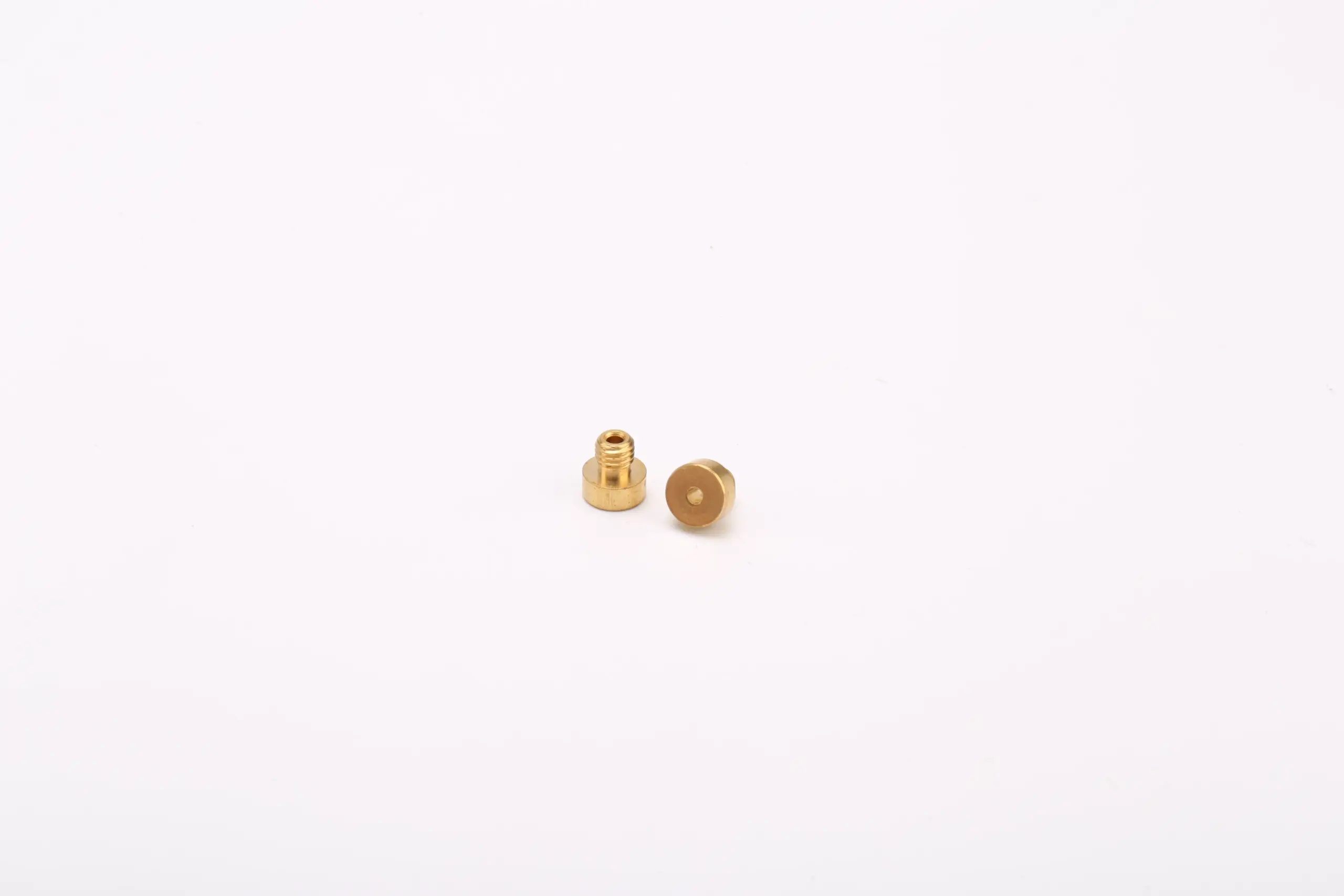

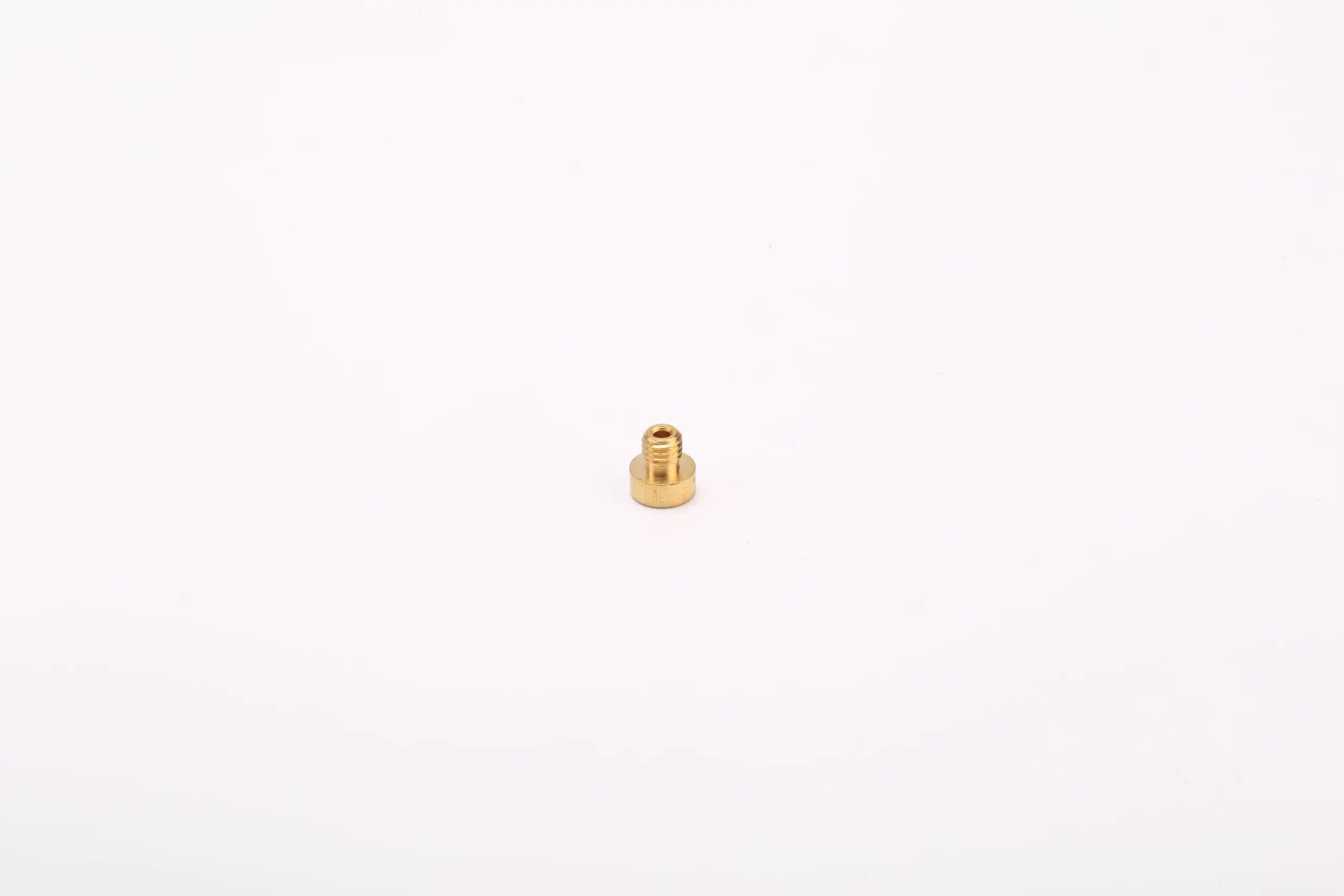

Short brass body and drilled head
This brass screw with a hole has a short body and a drilled passage through the head. The hole is not a decorative detail: its position, diameter and edge condition determine whether a wire, pin or other attachment can pass through without being cut or trapped.
For brass screws with hole, use the photograph only to identify the family. Mark the features that must be measured, the ones that may be visually compared and the surfaces that must remain free of damage in the approved drawing.
Wire or pin function
Decide the attachment method before selecting the hole. A wire may need a smooth radius at the exit, while a pin may need a controlled clearance and a flat bearing area. If the hole is intended for security wiring, show the wire path and the direction of tightening.
At every change of section on brass screws with hole, decide whether the transition is a clearance, a locating fit, a spring point or a stress-sensitive area. The radius, chamfer and undercut should then be specified to match that function.
Thread and bearing face
The thread and head seating face are separate from the hole. Confirm the thread size, pitch and usable length, then identify the face that contacts the mating part. A hole through the head can remove material from the bearing area, so the remaining face should be reviewed.
For a part that will be serviced, check that brass screws with hole can be released without damaging the mating component. A recessed drive, adhesive patch or locking feature can make removal harder than installation and should be reviewed at the same time.
Material and finish
Brass is a family of alloys, not a single specification. State the alloy or drawing requirement, temper, finish and any contact with dissimilar metals. A bright or yellow appearance does not establish conductivity, corrosion resistance or a thread class.
Compare finish changes for brass screws with hole against the approved sample under the agreed viewing condition. Record the surfaces where coating build-up, color variation, marks or edge coverage are acceptable, and keep that reference with the drawing revision.
Assembly checks
Trial the screw with the actual wire or pin fitted. Check that the part starts freely, the head reaches its seat and the hole remains open. Inspect the hole edges for burrs that could damage the inserted item or the operator.
After the trial, protect the approved sample of brass screws with hole from handling damage and keep it with the current drawing. Any process, material or finish change should be compared with that reference before the lot is released.
FAQ
Is the hole intended for a locking wire?
Not necessarily. The drawing must state whether it is for wiring, a pin, a passage or another function.
Can a brass screw be used as an electrical contact?
Only when the alloy, surface condition and electrical requirement are specified. Brass color alone does not establish conductivity.
What should be checked before tightening?
Check that the wire or pin moves freely, the hole is aligned and the head can seat without trapping the inserted item.
