Specifications

MaterialPer drawing / sample
Size RangePer drawing / sample
Head TypeCylindrical head
Thread or ShankThreaded set-screw body
FinishPer drawing / sample
TolerancePer drawing / sample
Made to DrawingYes

Frequently asked questions

Can this part be produced to a drawing or sample?

Yes. A dimensioned drawing or stable sample provides the head, shank or thread, material and finish details reviewed before quotation.

What drawing information should be provided?

Show the functional dimensions, material, surface finish, quantity and any assembly or inspection requirement. Photos can support the review, but a dimensioned drawing or stable sample is preferred.

How are sample requirements handled?

Any prototype or sample requirement is confirmed during quotation after the drawing or sample has been reviewed.

How is the surface finish selected?

The finish is reviewed against the material, application, appearance and corrosion requirement shown on the drawing or sample.

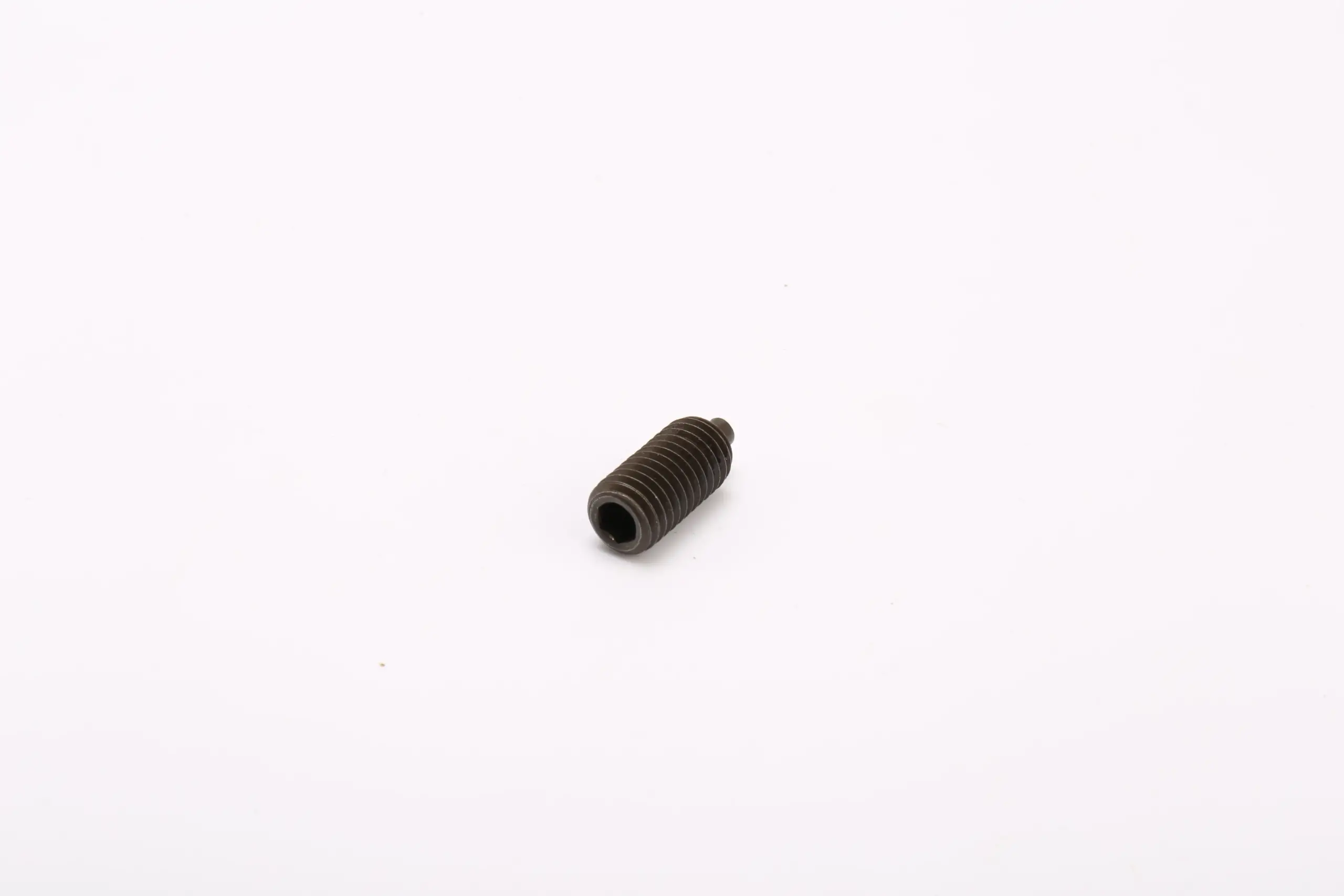

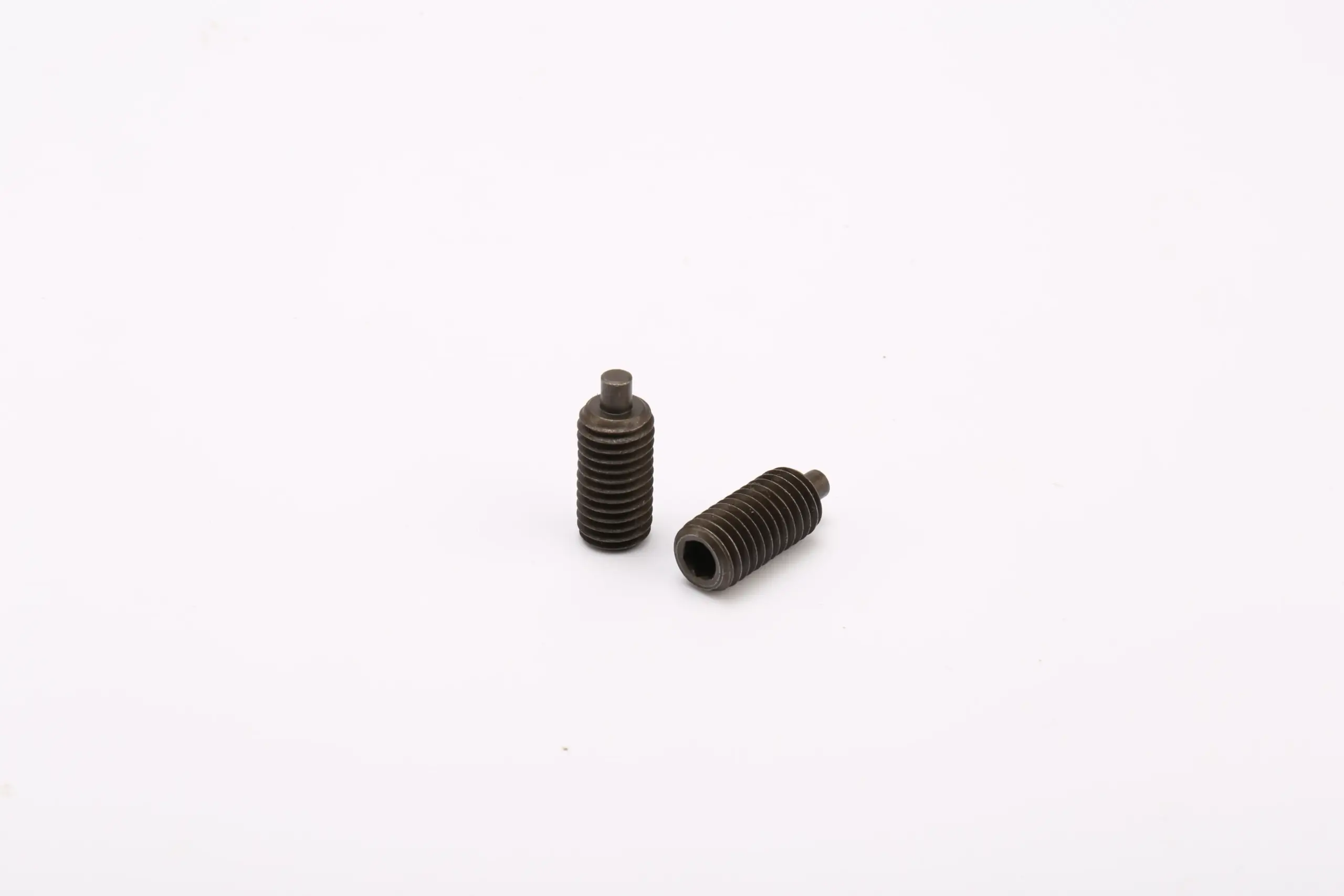

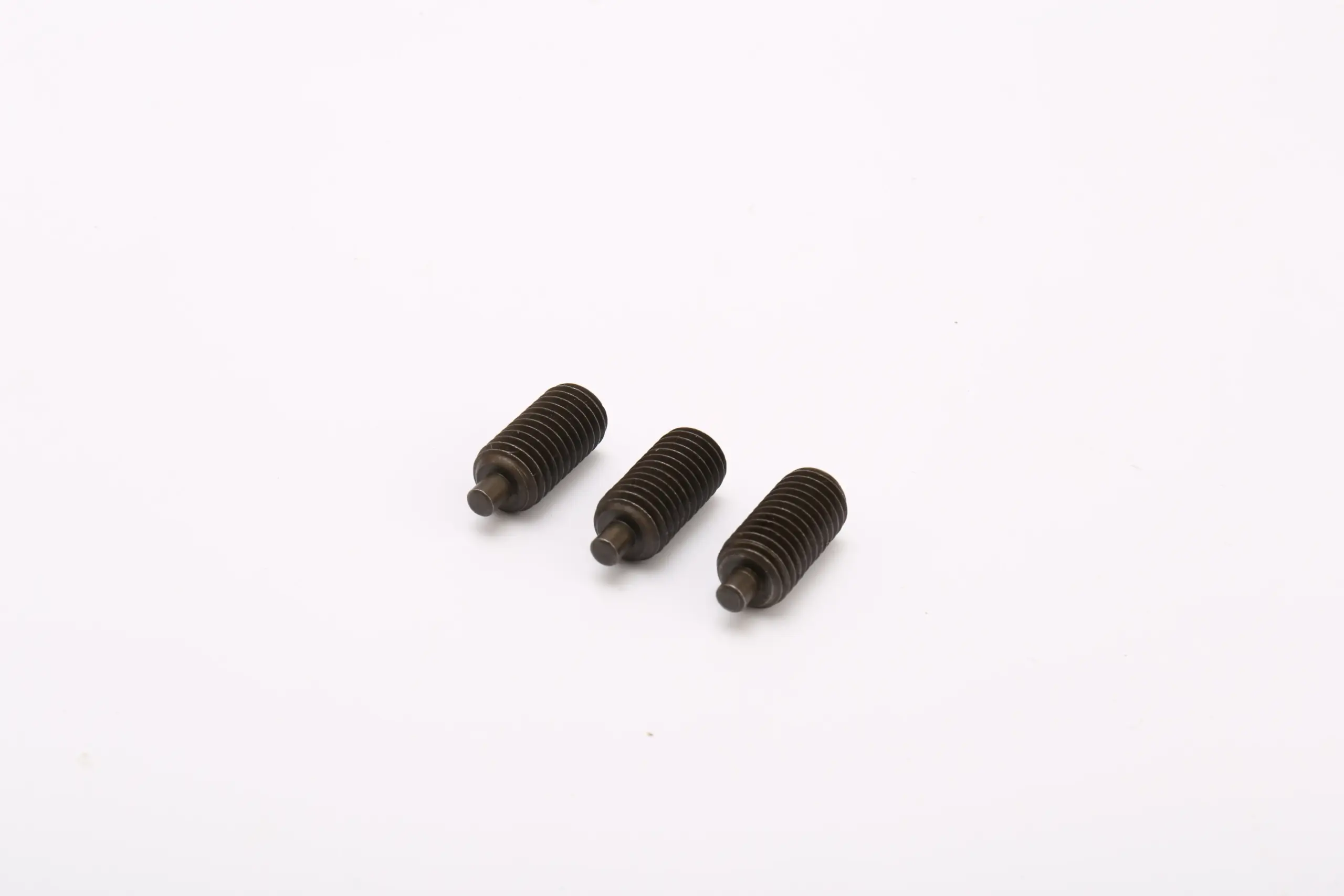

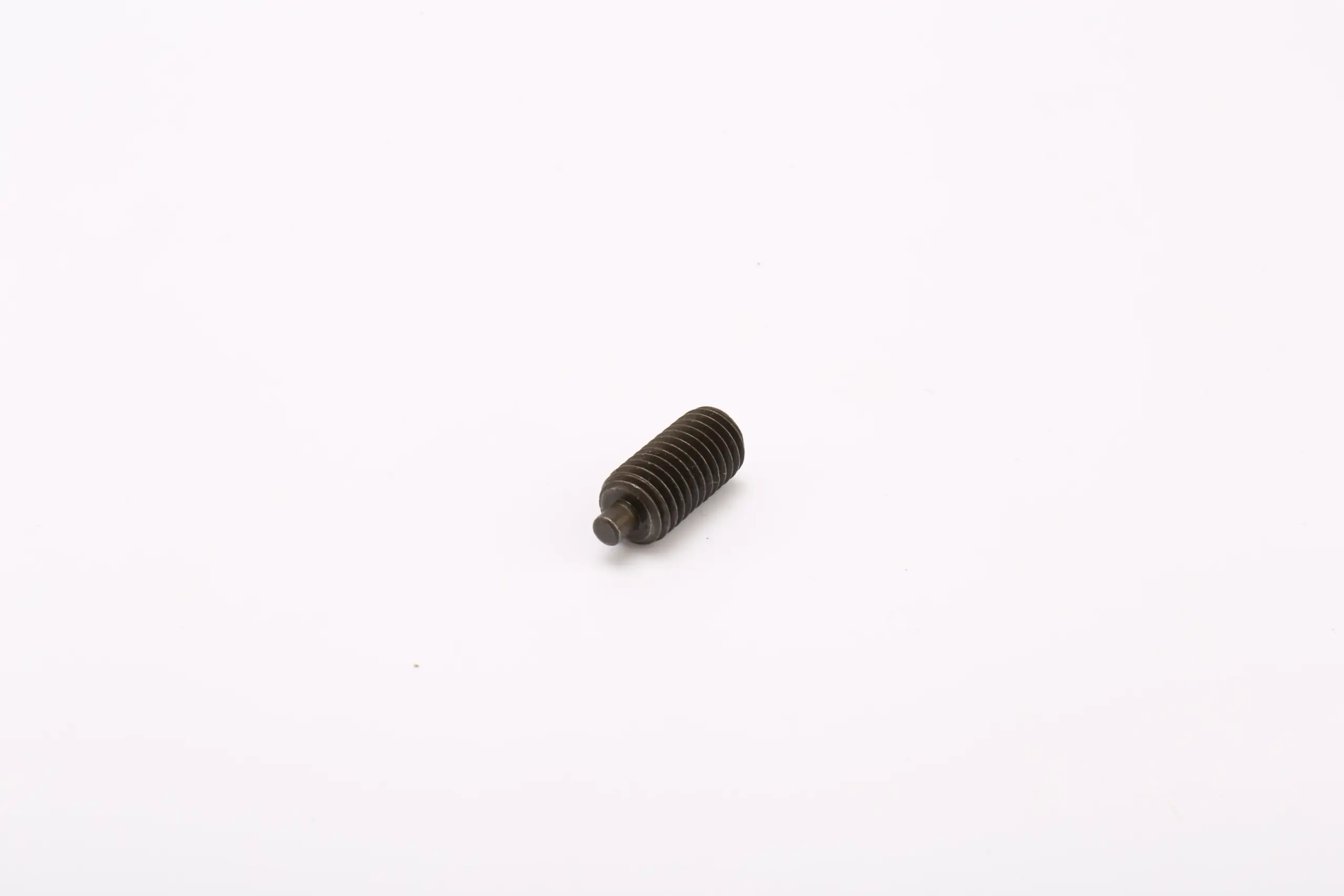

Hexagon socket set screw with cylindrical head

Hexagon socket set screws with a cylindrical head and internal hex drive for controlled clamping and adjustment.

Product Description

Hexagon socket set screws with a cylindrical head and internal hex drive for controlled clamping and adjustment. The notes below focus on the features that need to be confirmed before a drawing is approved.

Cylindrical head and socket

This hexagon socket set screw with a cylindrical head combines an internal hex drive with a distinct head that may provide a bearing or cover surface. The head and the thread contact end perform different jobs and should be dimensioned separately.

Begin with the interface that receives hexagon socket set screw with cylindrical head. The mating bore, panel or bracket establishes which surfaces locate and which clear. A dimension that is correct on the screw can still fail at that interface.

Head bearing surface

Confirm the head diameter and height, then check how the head sits relative to the surrounding part. A cylindrical head can cover a bore or provide a stop, but that function must be stated. Do not assume that the head is a sealing surface.

Use functional lengths for hexagon socket set screw with cylindrical head rather than overall length wherever possible. The distance from the seating face to the first thread, the length of a locating step and the depth of a bore all describe how the part behaves in the assembly.

Thread and contact end

The thread and contact end should be matched to the mating component. Confirm the thread size, pitch and engaged length, then define the end form and the surface it bears on. The head may limit how far the screw can enter.

Define the assembly orientation for hexagon socket set screw with cylindrical head and the surfaces that must remain accessible. If the part can be installed in more than one direction, say how the correct orientation is recognized and whether the thread or a keyed feature prevents reversal.

Material and finish

State the base material, finish and any hardness or thread treatment. The head may be visible, so agree on the appearance and edge condition. If the head bears on a soft surface, review the contact area and the risk of marking.

When hexagon socket set screw with cylindrical head will see moisture, cleaning agents or a different metal, state the exposure rather than selecting a finish from color alone. Functional surfaces such as threads, bores and locating diameters may need different protection from cosmetic surfaces.

Trial assembly

Trial the screw in the actual assembly. Check that the head seats or covers as intended, the socket remains accessible and the contact end holds the component. Inspect the head and thread after adjustment.

Production inspection of hexagon socket set screw with cylindrical head should follow the functions that control assembly. Check the locating features, the thread or bore and the seating face, then add the visible edge and surface checks that matter for the finished part.

FAQ

Is a cylindrical-head set screw a cap screw?

No. The intended function and contact geometry differ. Confirm the drawing and the joint.

Can the head act as a seal?

Only if a separate sealing feature is specified. A metal head alone should not be assumed to seal.

What should be checked for tool access?

Check the socket size, key engagement, approach angle and clearance around the cylindrical head.
