Specifications

MaterialPer drawing / sample
Size RangePer drawing / sample
Head TypePer drawing / sample
Thread or ShankThreaded shank
FinishPer drawing / sample
TolerancePer drawing / sample
Made to DrawingYes

Frequently asked questions

Can this part be produced to a drawing or sample?

Yes. A dimensioned drawing or stable sample provides the head, shank or thread, material and finish details reviewed before quotation.

What drawing information should be provided?

Show the functional dimensions, material, surface finish, quantity and any assembly or inspection requirement. Photos can support the review, but a dimensioned drawing or stable sample is preferred.

How are sample requirements handled?

Any prototype or sample requirement is confirmed during quotation after the drawing or sample has been reviewed.

How is the surface finish selected?

The finish is reviewed against the material, application, appearance and corrosion requirement shown on the drawing or sample.

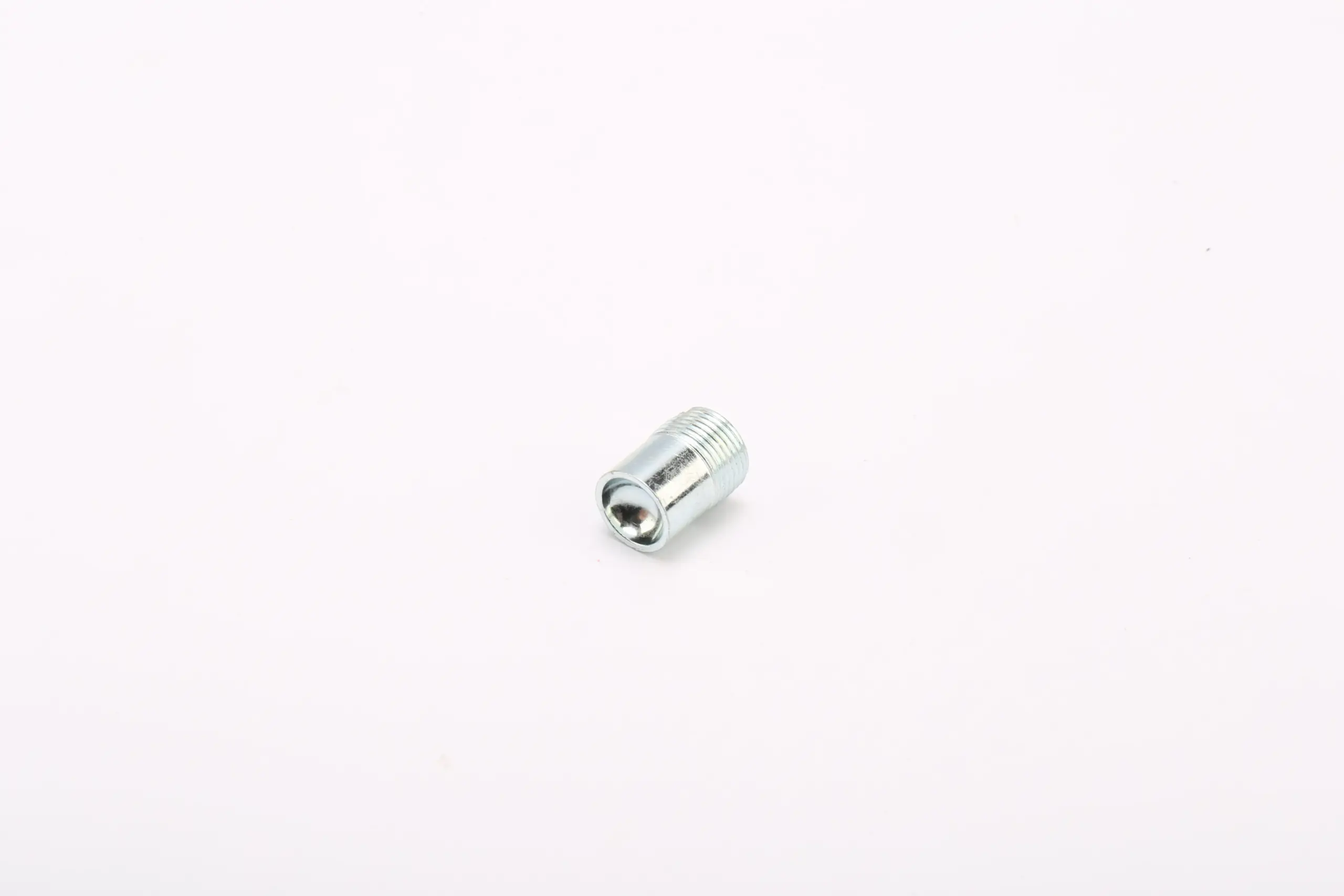

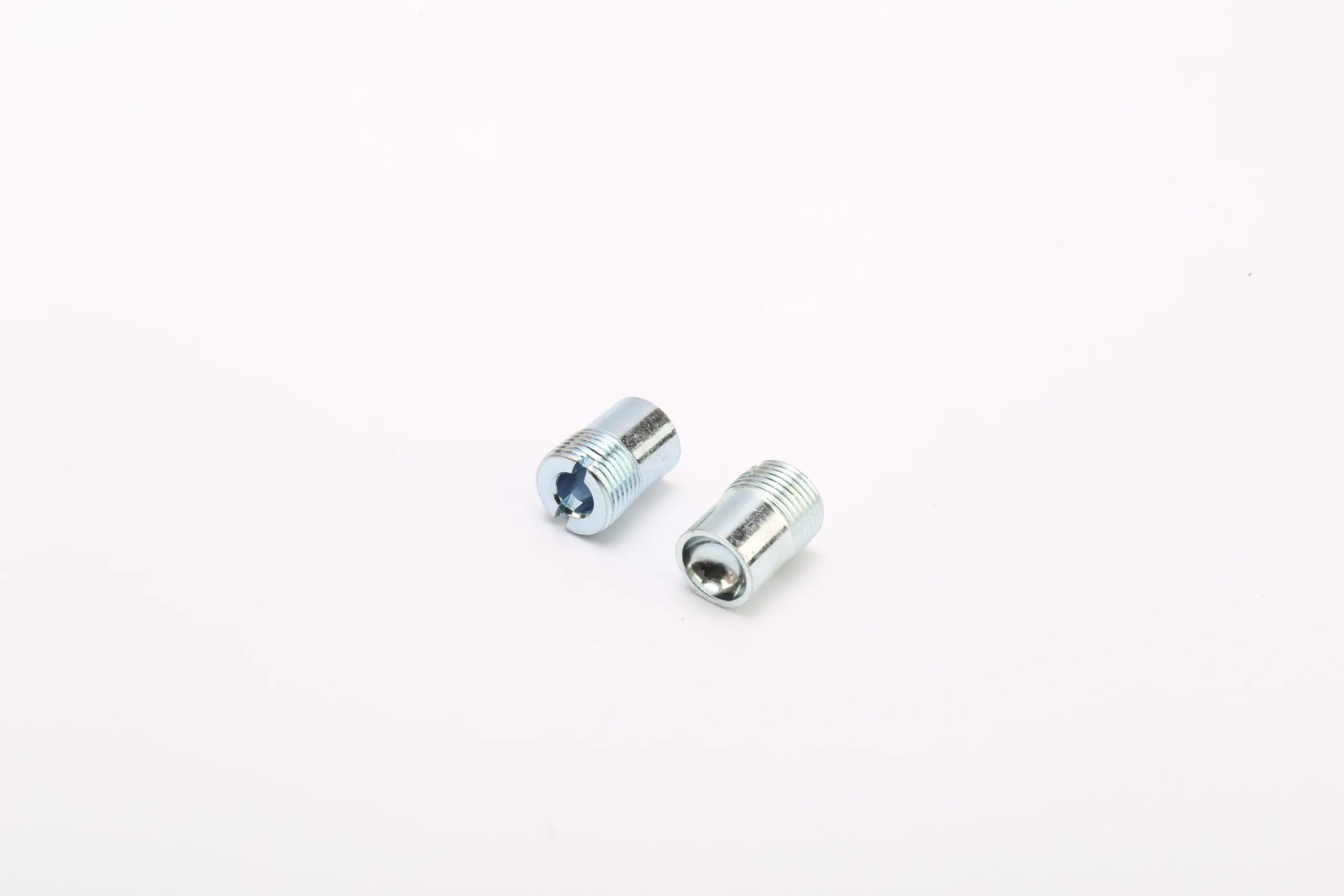

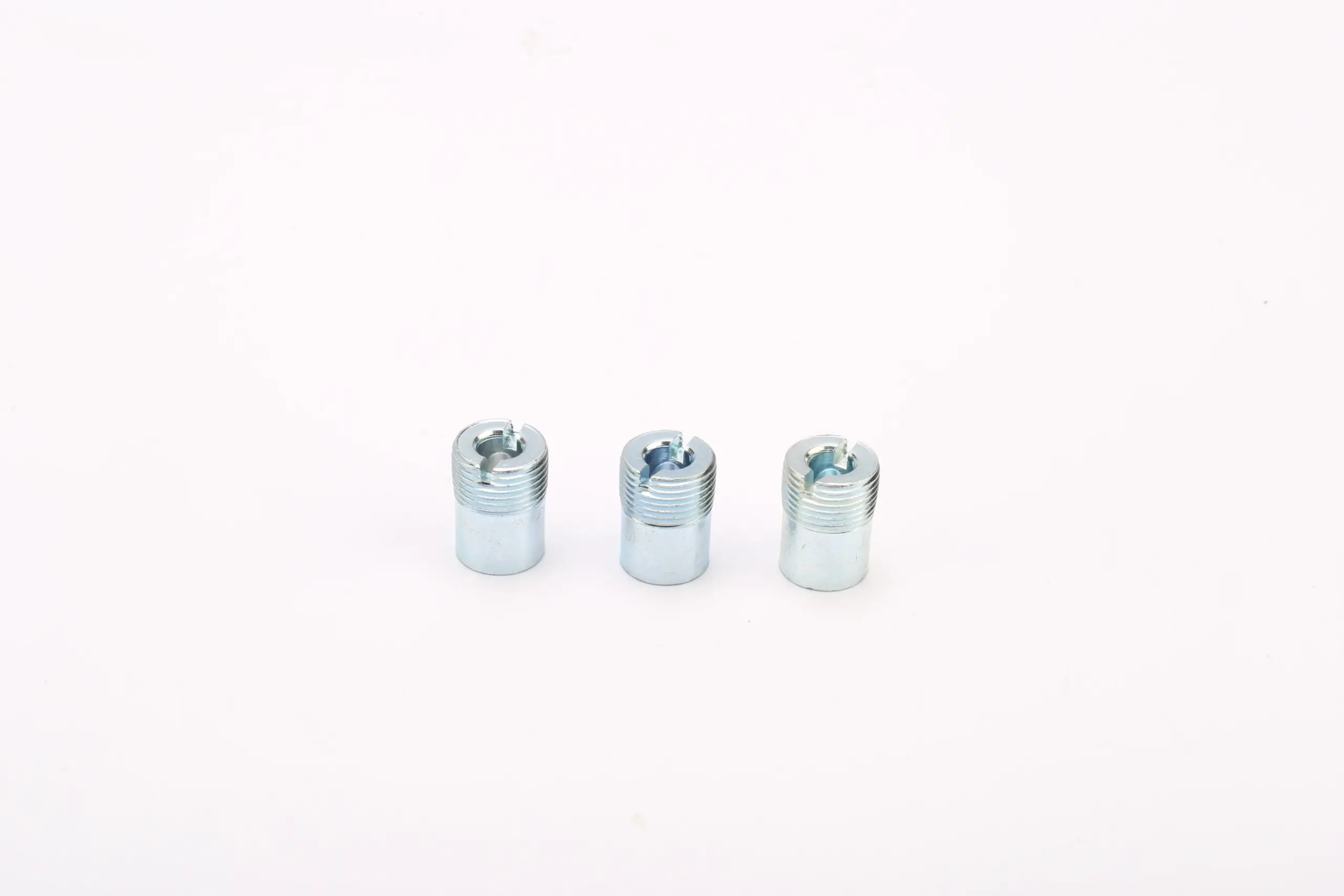

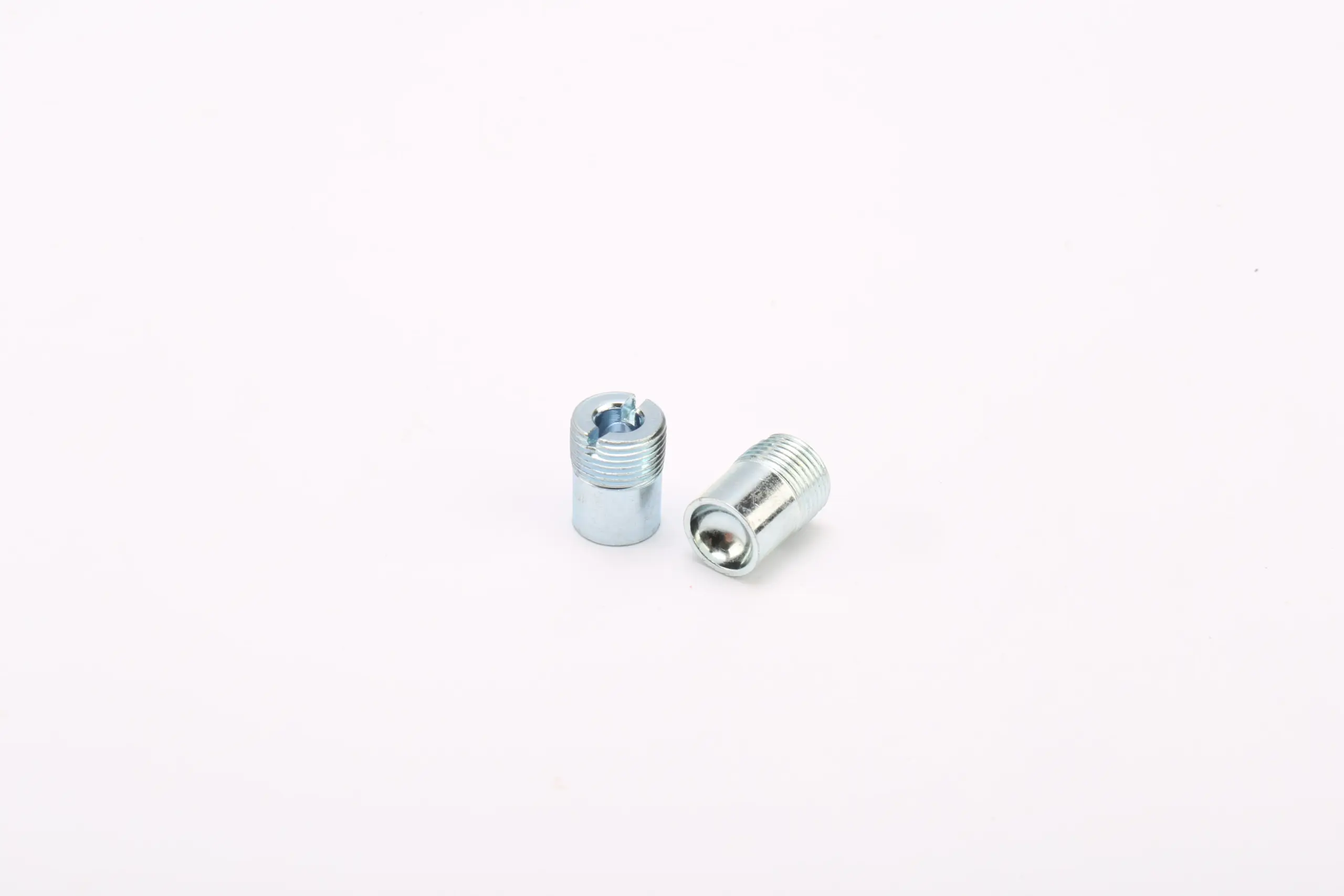

Door Lock Screws

Door lock screws for lock and door hardware assemblies, manufactured to the required dimensions, head style and finish.

Product Description

Door lock screws for lock and door hardware assemblies, manufactured to the required dimensions, head style and finish. The notes below focus on the features that need to be confirmed before a drawing is approved.

Lock or door hardware interface

This door lock screw is defined by the lock mechanism, cover or trim it joins. The head may remain visible, so its shape and finish matter alongside the thread and the surface that seats.

Begin with the interface that receives door lock screws. The mating bore, panel or bracket establishes which surfaces locate and which clear. A dimension that is correct on the screw can still fail at that interface.

Visible head and drive

Check the head diameter and height against the lock or door hardware recess. A projecting head can interfere with a moving part, while an undercut or small head may not cover the opening. The drive must remain usable after the trim is installed.

Use functional lengths for door lock screws rather than overall length wherever possible. The distance from the seating face to the first thread, the length of a locating step and the depth of a bore all describe how the part behaves in the assembly.

Thread and seating

Confirm the thread, pitch and usable length, then identify the bearing face and any shoulder or washer. Door hardware can involve thin sections and concealed cavities, so bottoming and thread engagement should be checked in the actual assembly.

Define the assembly orientation for door lock screws and the surfaces that must remain accessible. If the part can be installed in more than one direction, say how the correct orientation is recognized and whether the thread or a keyed feature prevents reversal.

Material and finish

State the base material, finish and any corrosion or appearance requirement. A color match is not a material grade. If the screw is visible, define the acceptable surface and edge condition for the viewing distance.

When door lock screws will see moisture, cleaning agents or a different metal, state the exposure rather than selecting a finish from color alone. Functional surfaces such as threads, bores and locating diameters may need different protection from cosmetic surfaces.

Trial assembly

Trial the screw with the lock, cover or trim fitted. Check that the head seats without rocking, the thread engages correctly and the screw does not interfere with the mechanism. Inspect the visible surfaces after tightening.

Production inspection of door lock screws should follow the functions that control assembly. Check the locating features, the thread or bore and the seating face, then add the visible edge and surface checks that matter for the finished part.

FAQ

Does a door lock screw have to match the lock brand?

The thread and geometry must match the actual assembly. A brand name alone is not a dimensional specification.

Can the head be refinished after installation?

Only with a process that protects the mechanism and does not change the fit. Specify the finish before production.

What should be checked on the door?

Check head clearance, thread engagement, seating, mechanism movement and the visible finish.
