Switch Screws

Switch screws for electrical switch assemblies, produced to the required head, thread and material specification. Custom sizes and finishes available.

Product Description

Switch screws for electrical switch assemblies, produced to the required head, thread and material specification. Custom sizes and finishes available. The notes below focus on the features that need to be confirmed before a drawing is approved.

Switch housing interface

This switch screw is defined by the switch housing and the parts around it. The head must fit the available opening, the thread must engage the housing or insert and the drive must remain accessible without touching live or moving parts.

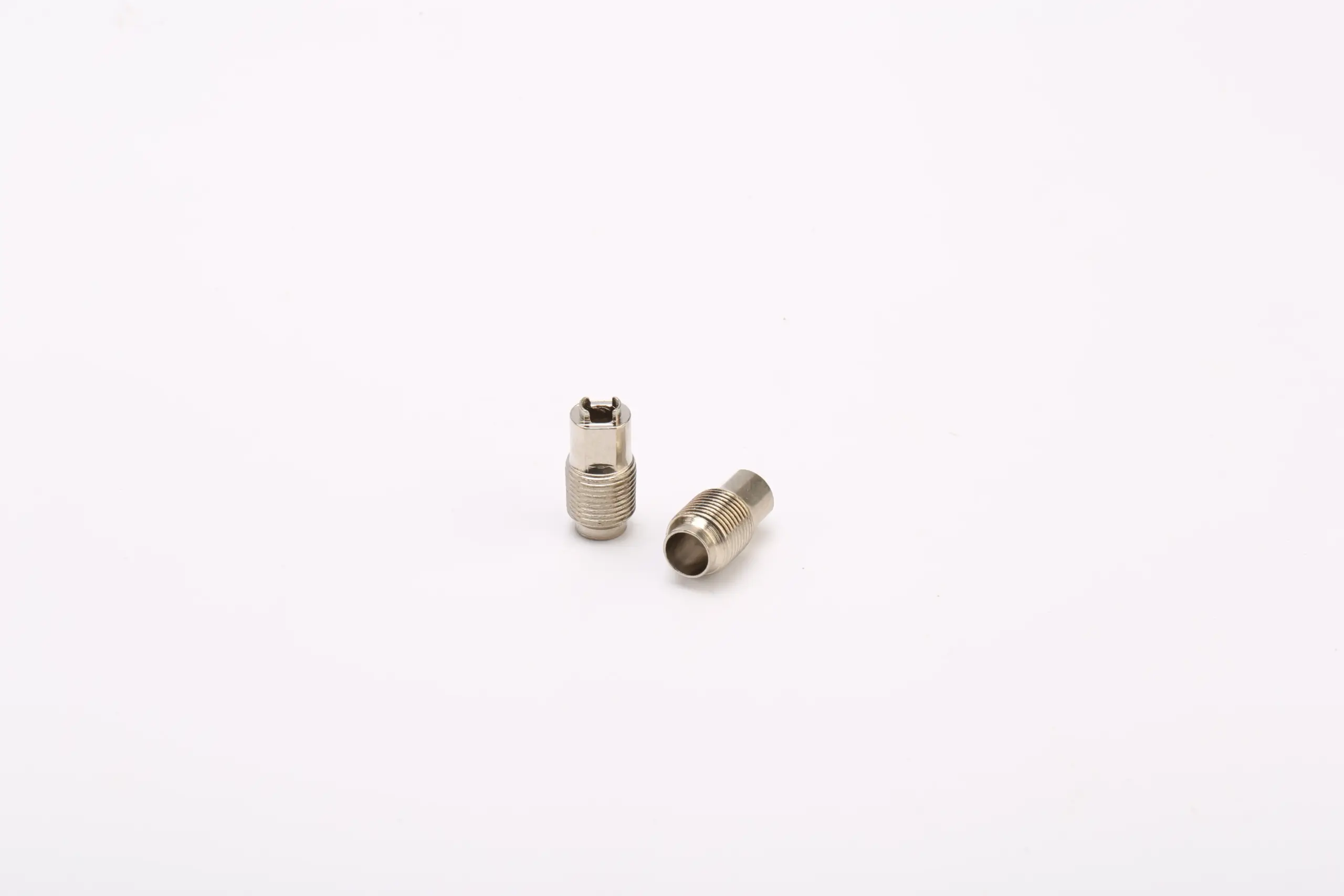

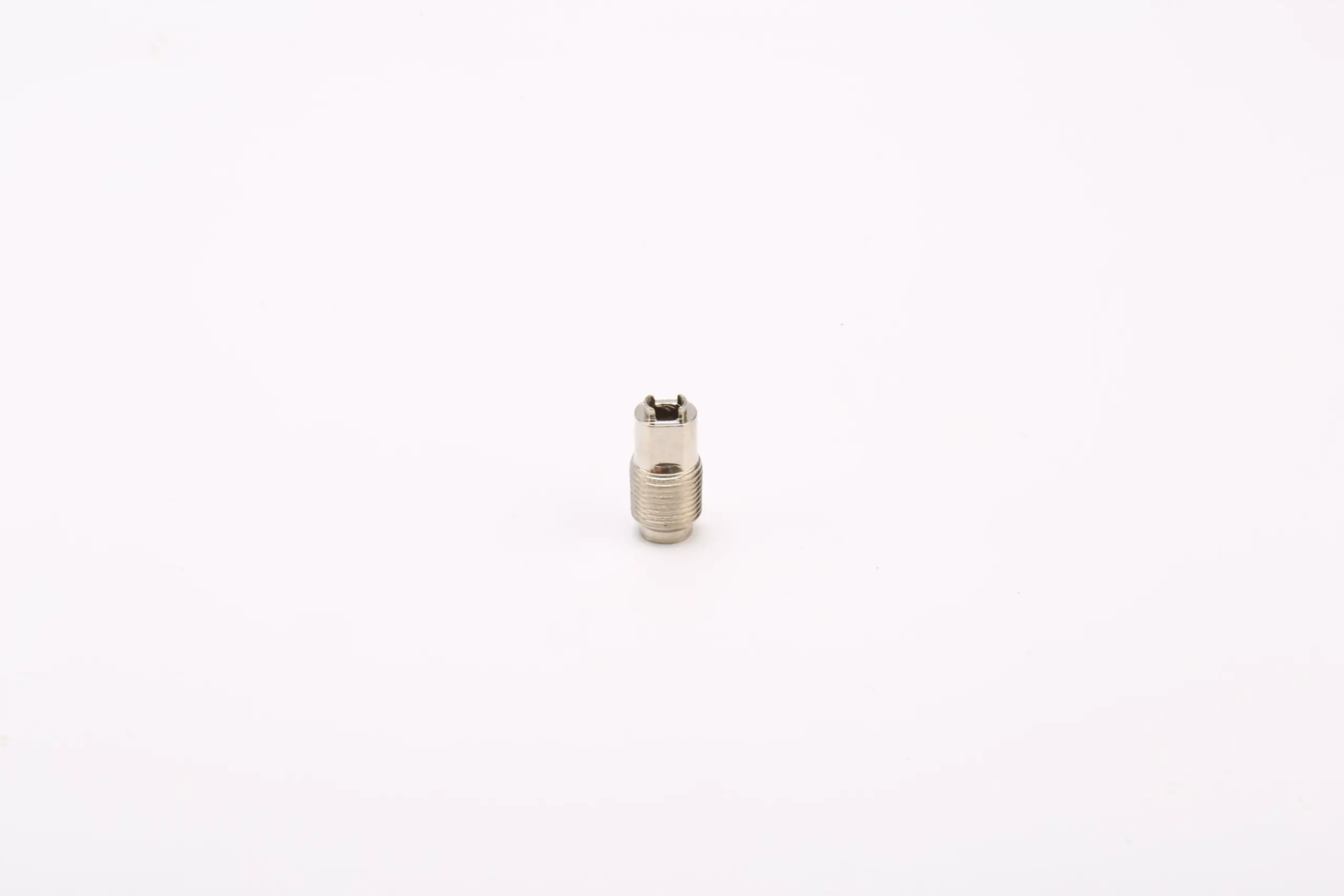

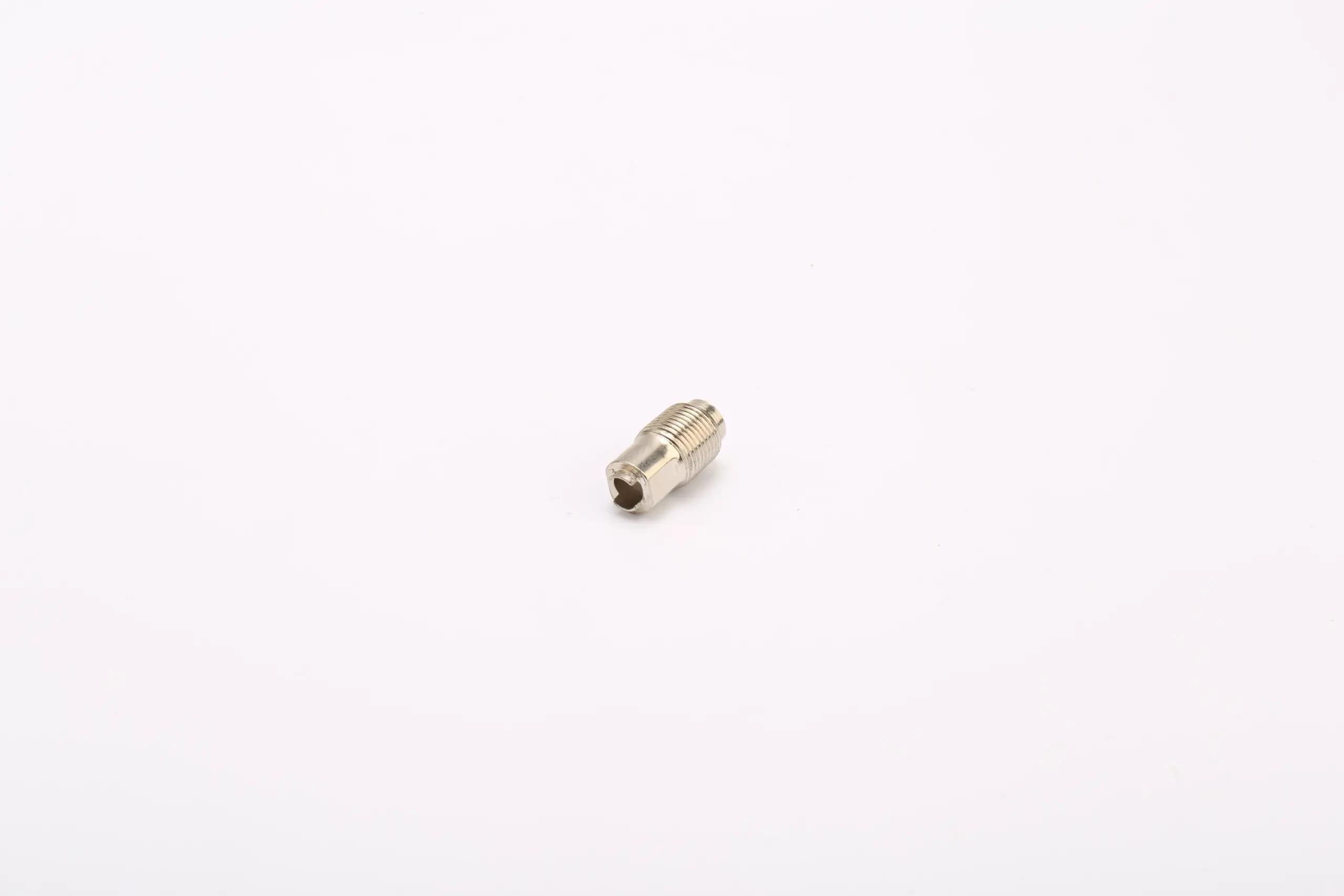

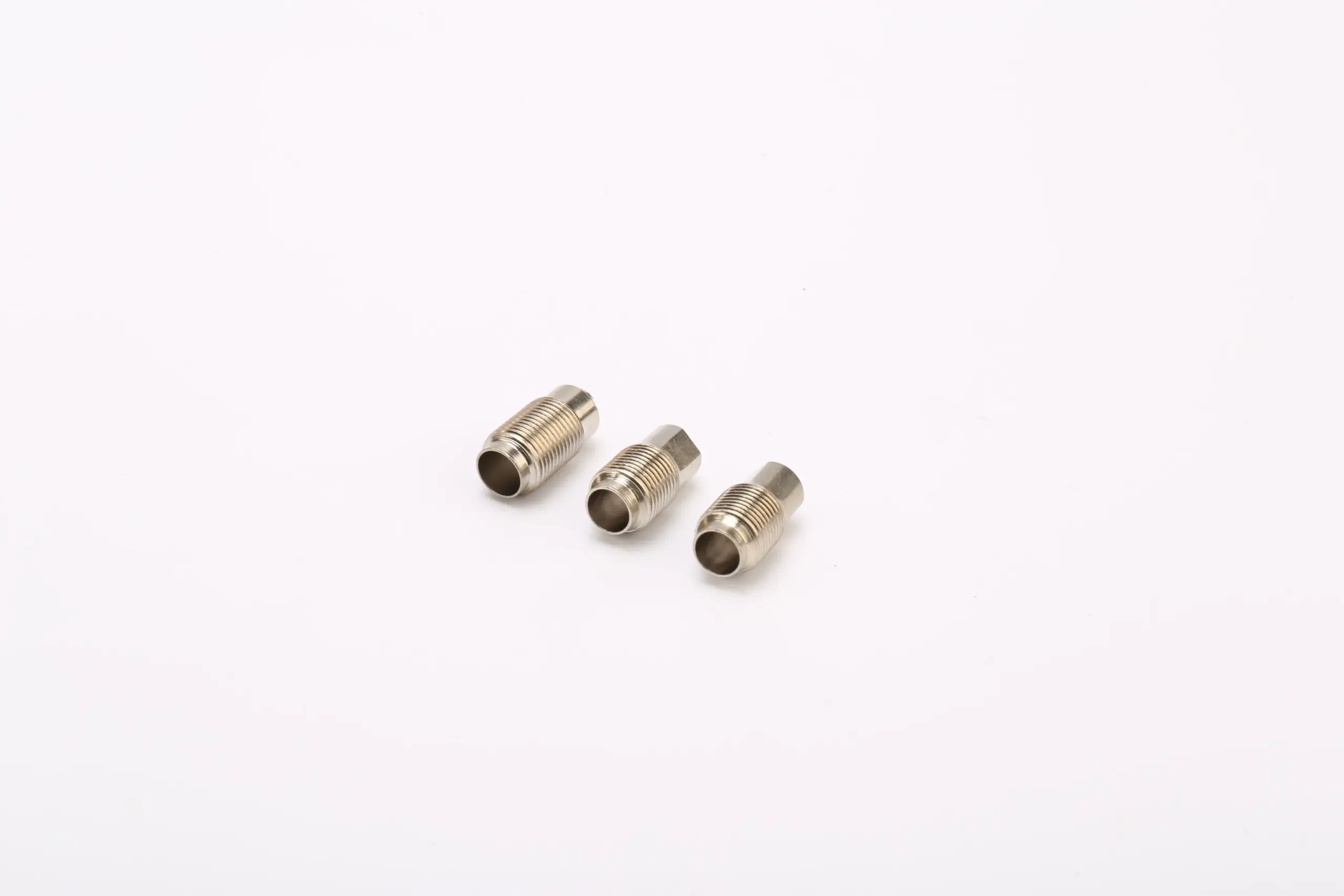

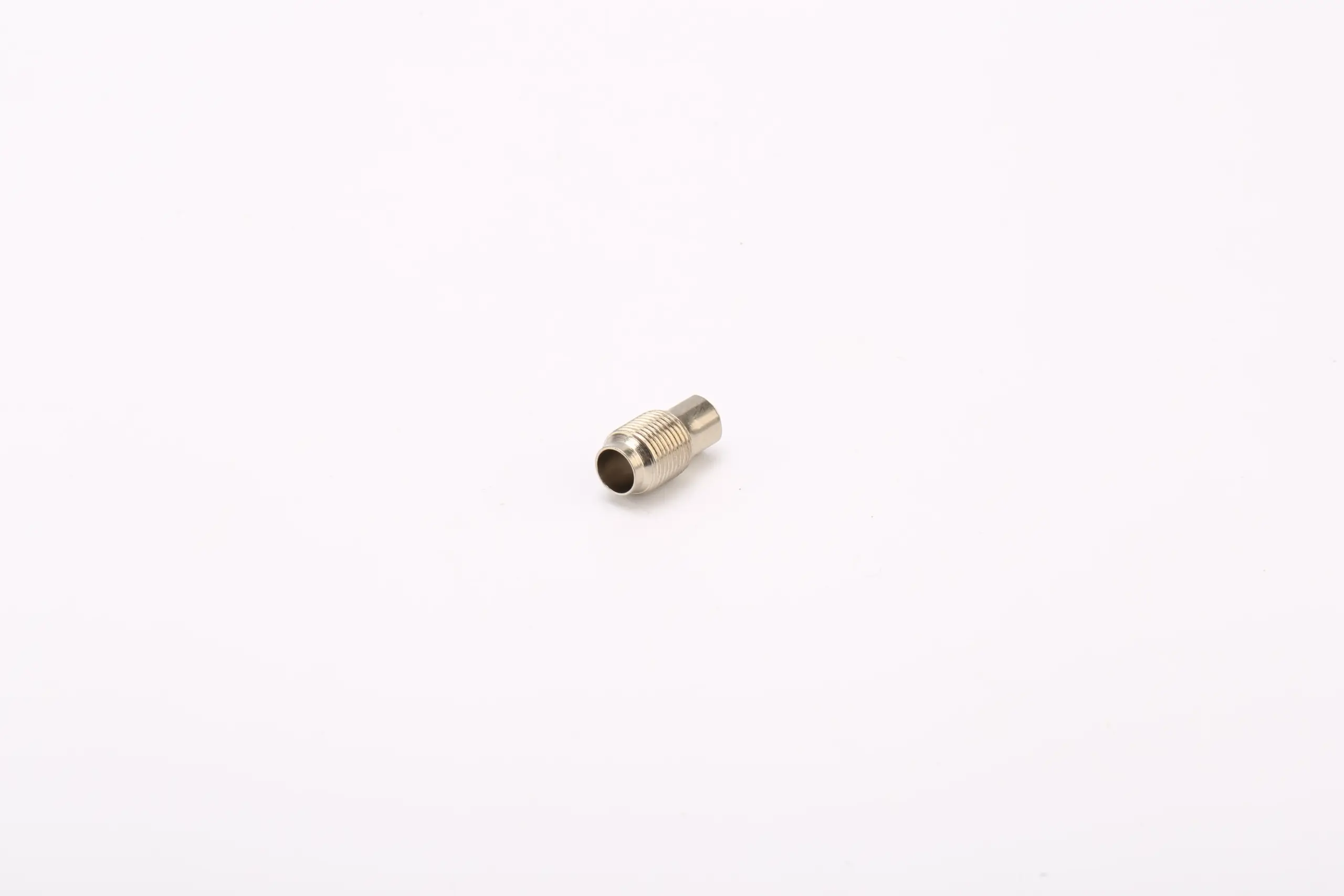

For switch screws, use the photograph only to identify the family. Mark the features that must be measured, the ones that may be visually compared and the surfaces that must remain free of damage in the approved drawing.

Head and electrical clearance

Check the head diameter, height and drive against the actual switch opening. A low head may be needed under a cover, while a wider head can spread the bearing load. The driver must approach the screw squarely without contacting nearby electrical components.

At every change of section on switch screws, decide whether the transition is a clearance, a locating fit, a spring point or a stress-sensitive area. The radius, chamfer and undercut should then be specified to match that function.

Thread and seating

Confirm the thread size, pitch and usable length, then identify the surface that seats and any washer or retaining feature. A screw that fits the thread can still bottom in a shallow housing or leave too little engagement after the cover is installed.

For a part that will be serviced, check that switch screws can be released without damaging the mating component. A recessed drive, adhesive patch or locking feature can make removal harder than installation and should be reviewed at the same time.

Material and finish

State the substrate, finish and any electrical or appearance requirement. A bright finish is not proof of a particular metal or contact property. If the screw is part of a current path, define that function separately from its mechanical role.

Compare finish changes for switch screws against the approved sample under the agreed viewing condition. Record the surfaces where coating build-up, color variation, marks or edge coverage are acceptable, and keep that reference with the drawing revision.

Trial assembly

Trial the screw in the switch housing with the cover and operating parts in place. Check thread engagement, seating, tool access and clearance to electrical or moving parts. Inspect the head and drive after installation.

After the trial, protect the approved sample of switch screws from handling damage and keep it with the current drawing. Any process, material or finish change should be compared with that reference before the lot is released.

FAQ

Can a switch screw be used in another appliance?

Only after checking the thread, head, clearance and electrical or mechanical requirements of the new assembly.

Does the finish affect electrical performance?

It can affect contact and corrosion behavior. State the electrical requirement separately from the appearance.

What should be included in a sample request?

Provide the mating housing, required head and drive, thread, material, finish and installation constraints.
