Compact ball head screws with a short threaded shank for miniature linkages, clamps and precision assemblies. The notes below focus on the features that need to be confirmed before a drawing is approved.
Compact ball and short shank

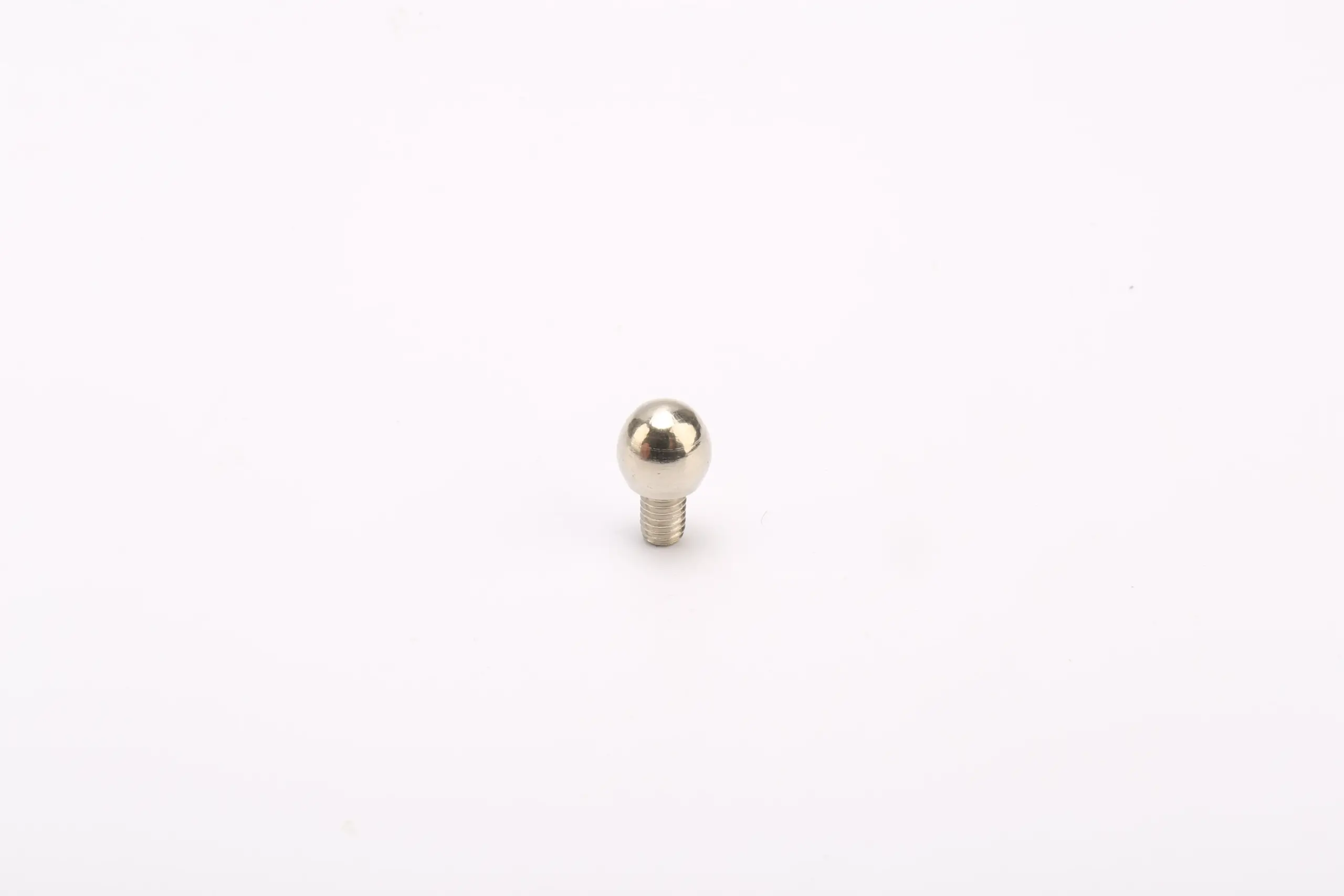

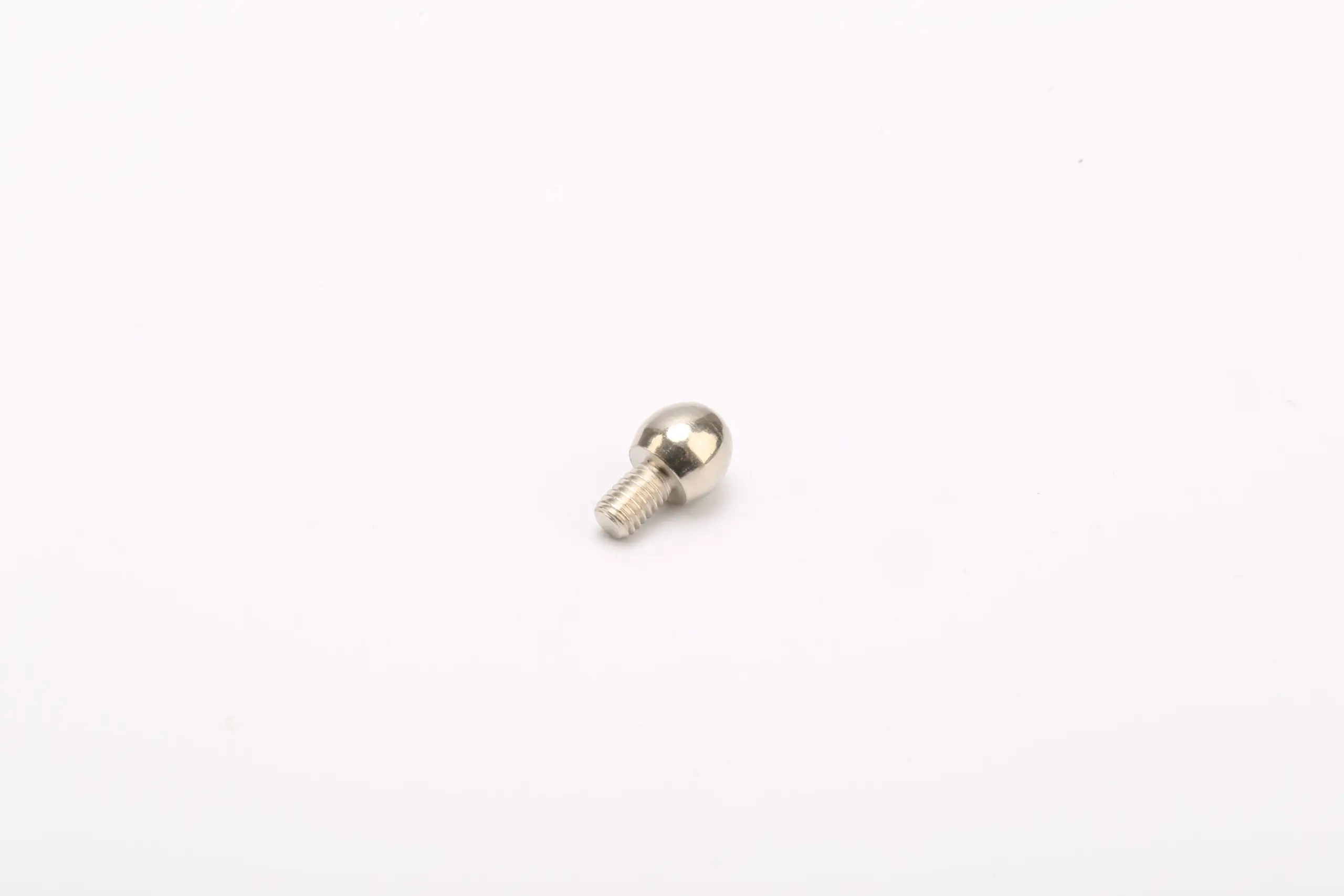

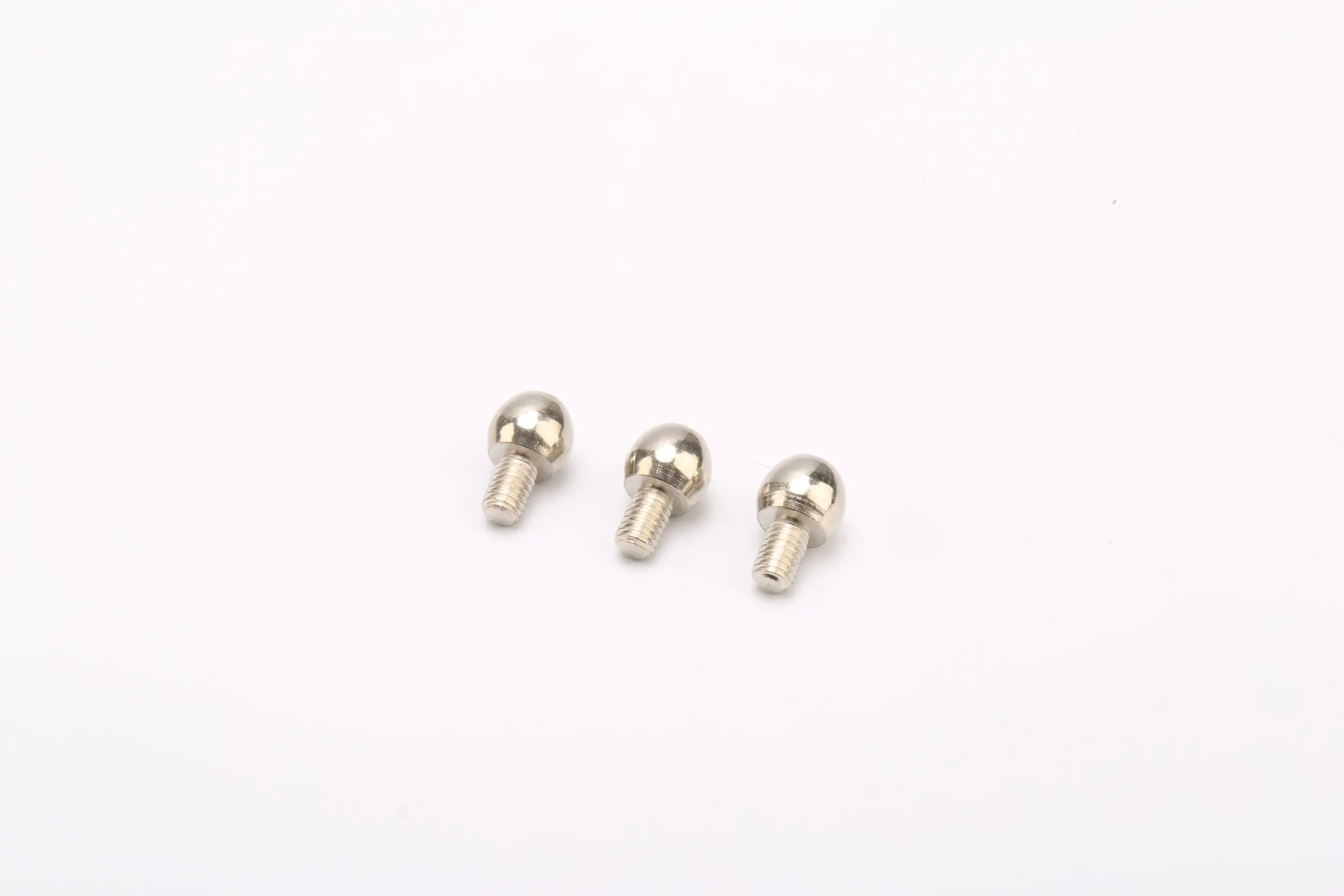

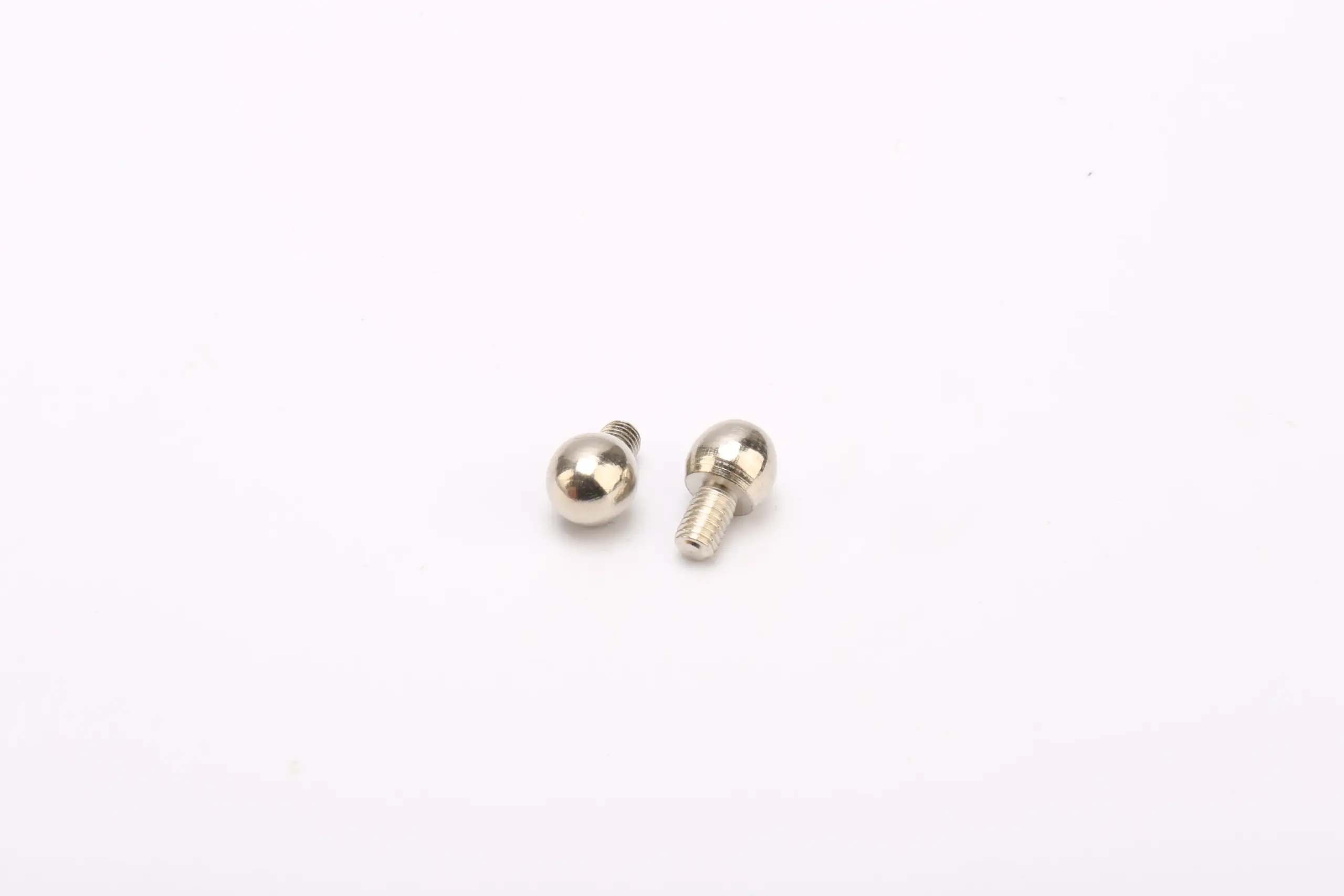

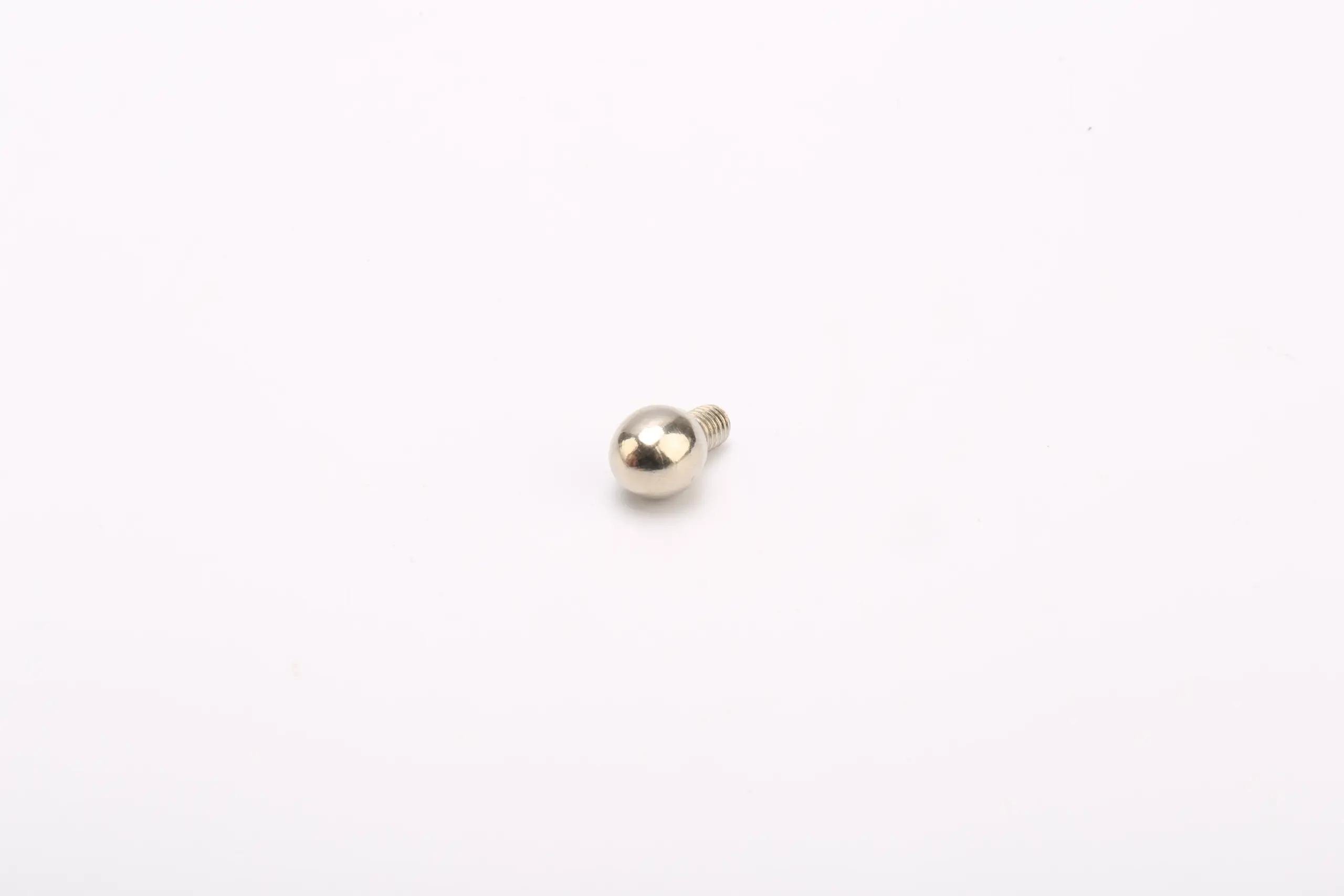

This compact ball head screw pairs a spherical head with a short threaded shank. The short body is intended for miniature linkages, clamps or precision assemblies where axial space is limited.
Begin with the interface that receives compact ball head screws. The mating bore, panel or bracket establishes which surfaces locate and which clear. A dimension that is correct on the screw can still fail at that interface.
Miniature linkage use
Check the ball diameter, head height and shank length. In a compact assembly, a small change in ball size can affect clearance and tool access. The drawing should define whether the ball contacts a socket, lever or cover.
Use functional lengths for compact ball head screws rather than overall length wherever possible. The distance from the seating face to the first thread, the length of a locating step and the depth of a bore all describe how the part behaves in the assembly.
Thread and seating
Confirm the thread, pitch and usable length, then identify the surface that seats and whether the joint should move or remain fixed. A short shank leaves little room for adjustment, so the engaged length and bottom clearance should be checked carefully.
Define the assembly orientation for compact ball head screws and the surfaces that must remain accessible. If the part can be installed in more than one direction, say how the correct orientation is recognized and whether the thread or a keyed feature prevents reversal.
Finish and appearance
State the material, finish and surface condition of the ball. If the ball runs in a socket or against another component, define the contact pair and the allowable wear or marks. A polished appearance does not establish the material or hardness.
When compact ball head screws will see moisture, cleaning agents or a different metal, state the exposure rather than selecting a finish from color alone. Functional surfaces such as threads, bores and locating diameters may need different protection from cosmetic surfaces.
Trial movement check
Assemble the screw with the mating linkage and check the intended movement through its full range. Confirm that the ball does not bind, the thread does not bottom and the head remains accessible for adjustment or removal.
Production inspection of compact ball head screws should follow the functions that control assembly. Check the locating features, the thread or bore and the seating face, then add the visible edge and surface checks that matter for the finished part.
FAQ
Is a compact ball head automatically a pivot?
No. The mating socket, clearance and retention method determine whether it can act as a pivot.
Can the short shank be used in a deep hole?
Only if the engaged thread and tool access are sufficient. Check the actual depth and clearance.
What should be checked for a moving joint?
Check clearance, contact, retention and the full range of movement in the actual assembly.
