Specifications

MaterialStainless steel / Brass / Aluminum
Size RangePer drawing / sample
Head TypePer drawing / sample
Thread or ShankStepped rivet shank
FinishSilver finish
TolerancePer drawing / sample
Made to DrawingYes

Frequently asked questions

Can this part be produced to a drawing or sample?

Yes. A dimensioned drawing or stable sample provides the head, shank or thread, material and finish details reviewed before quotation.

What drawing information should be provided?

Show the functional dimensions, material, surface finish, quantity and any assembly or inspection requirement. Photos can support the review, but a dimensioned drawing or stable sample is preferred.

How are sample requirements handled?

Any prototype or sample requirement is confirmed during quotation after the drawing or sample has been reviewed.

How is the surface finish selected?

The finish is reviewed against the material, application, appearance and corrosion requirement shown on the drawing or sample.

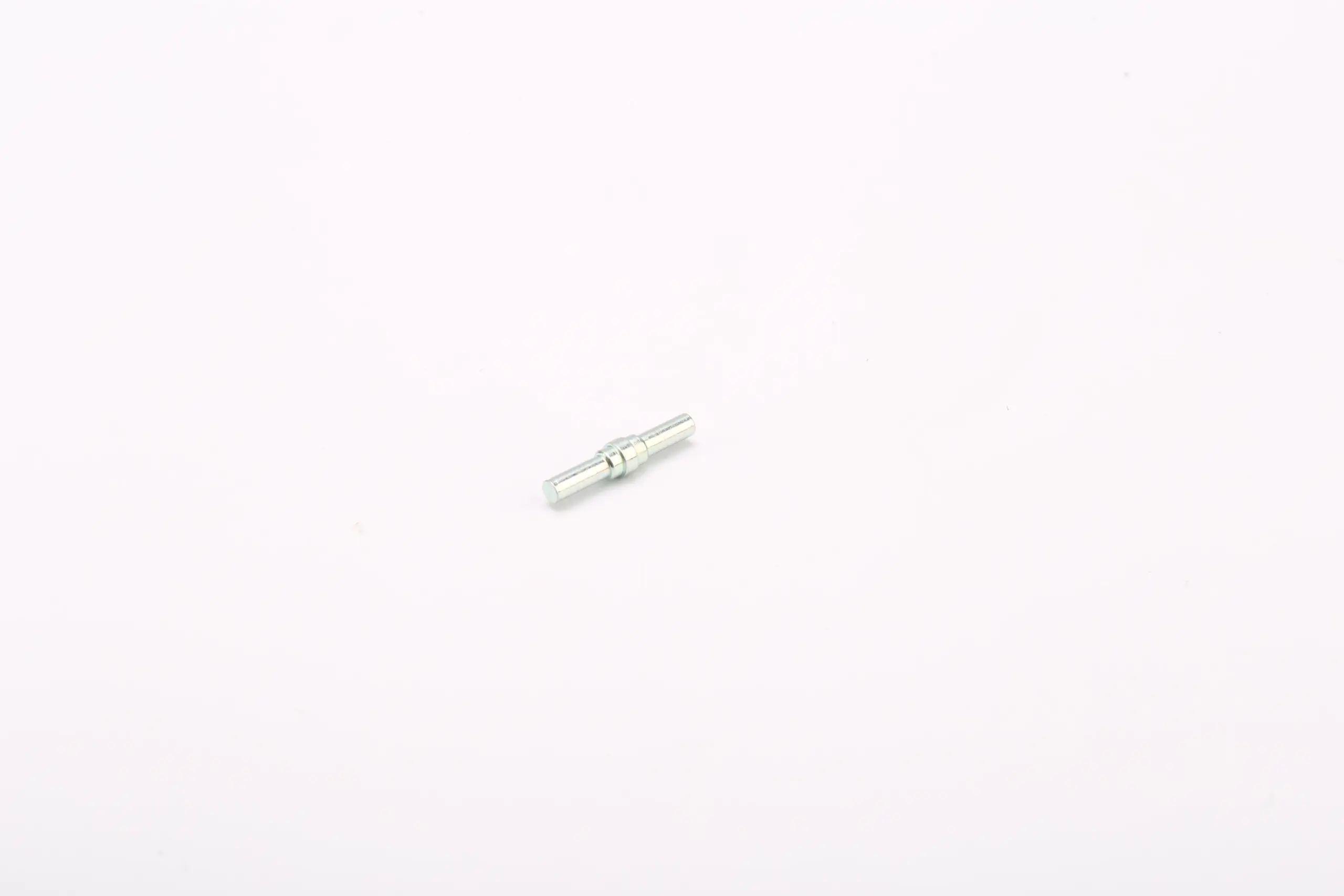

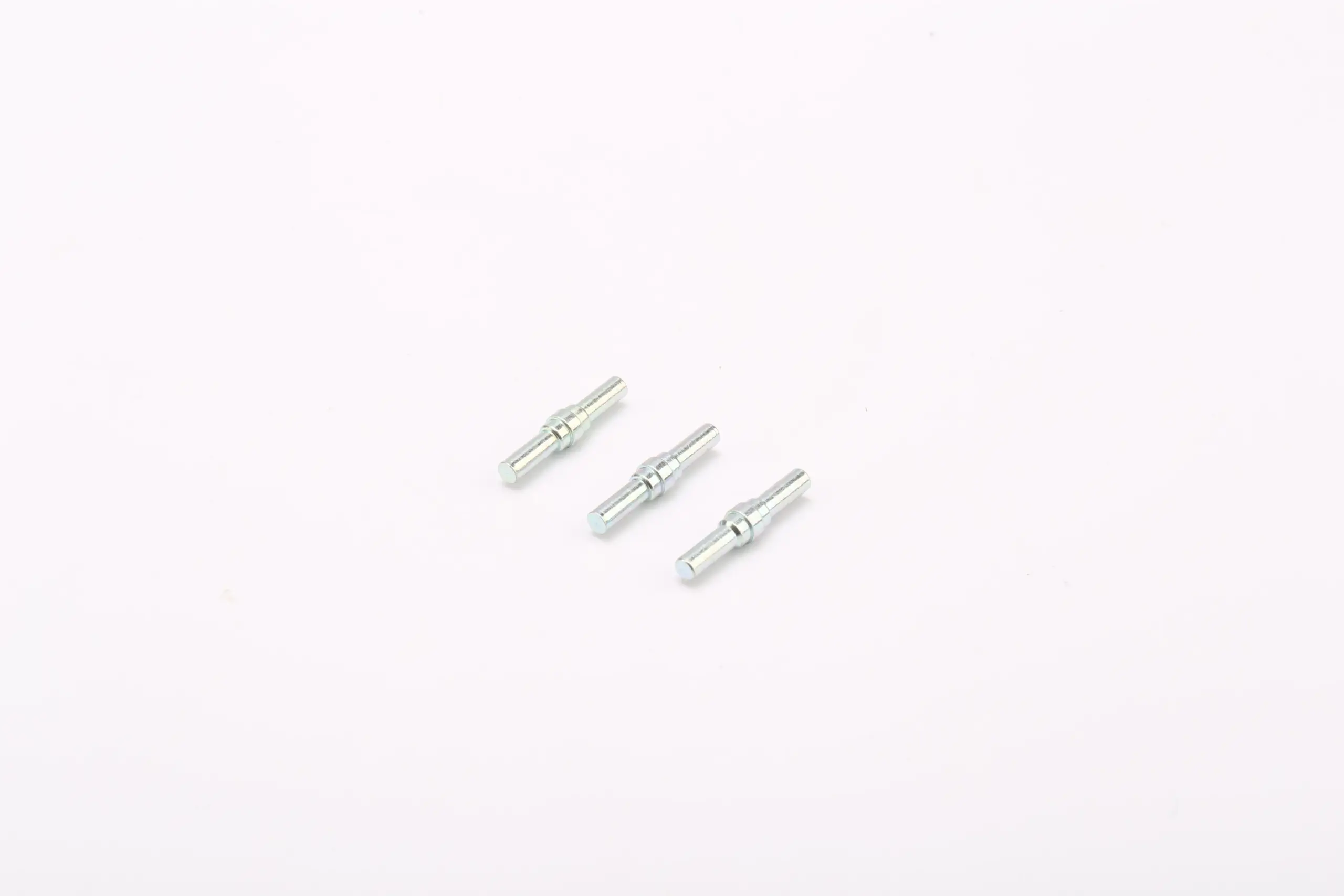

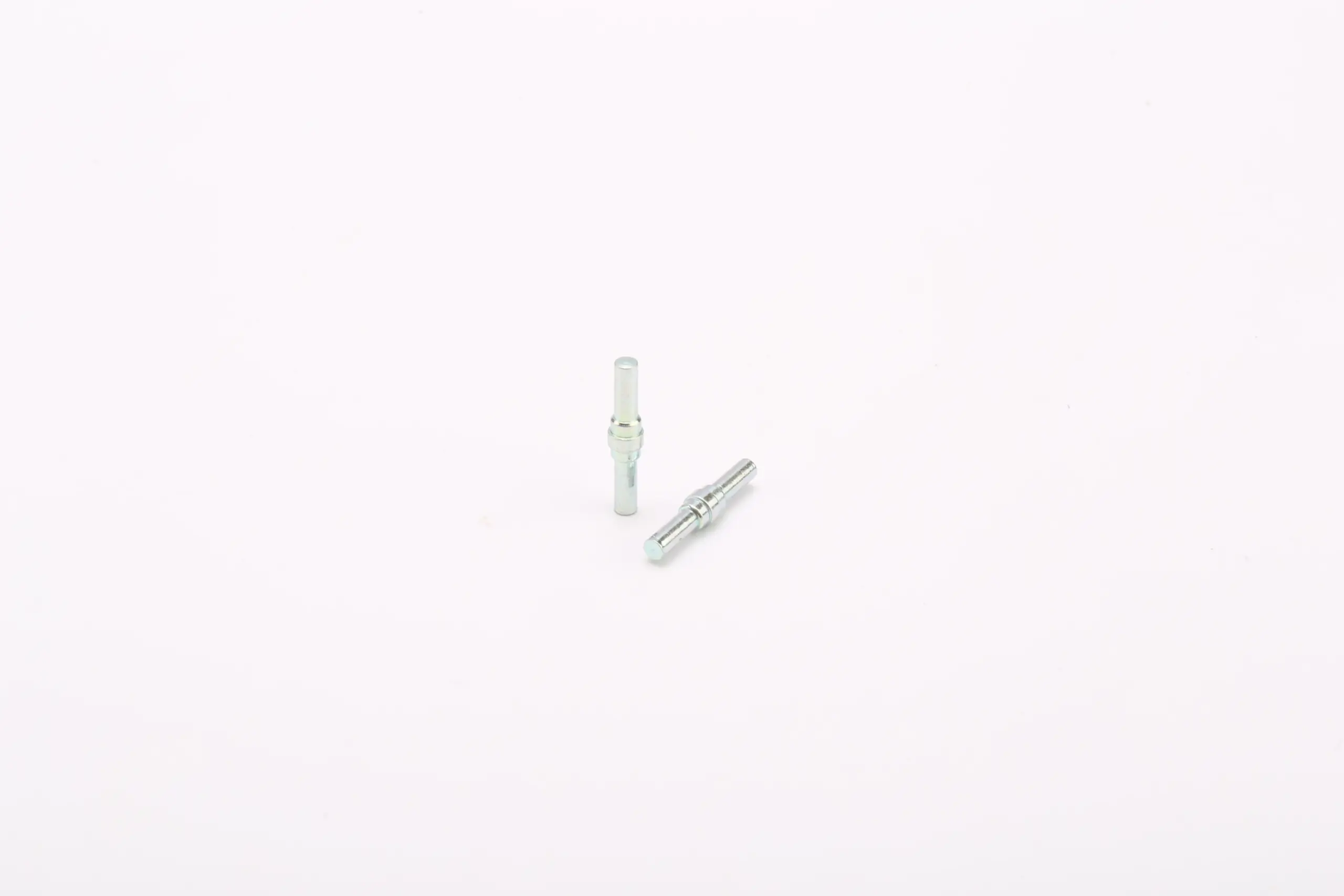

Silver Step Rivets

Silver-finished step rivets with a stepped shank for locating, spacing and pivot applications. Made to order in stainless steel, brass or aluminum.

Product Description

Silver step rivets use a stepped shank to create a defined shoulder between two sections of the fastener. That shoulder can locate a plate, hold a spacer, establish a repeatable spacing or provide a bearing surface for a small pivoting part. The stepped geometry is the functional difference; the silver appearance should not be used as a substitute for a material or coating specification.

Construction and working principle

A step rivet normally combines a head, a locating section and a second shank section. The position and length of the step determine how the mating parts sit relative to one another. The rivet should be designed from the assembled stack, not from the overall length alone: the hole fit, step diameter, step length and the formed or retained end all affect the finished joint.

Step geometry can reduce the chance that a component is clamped in the wrong position, but it does not remove the need to control hole clearance and stack tolerance. For a moving joint, the intended clearance and bearing area must be stated explicitly.

Typical applications

Silver step rivets are commonly considered for compact hardware, electrical components, appliance assemblies, small mechanisms, decorative fasteners and locating joints where a shoulder must sit against a mating part. They can also be used where a straight rivet would allow a plate or spacer to shift during assembly.

Customization options

Useful drawing inputs include head profile, first and second shank diameters, step position, step length, overall length, material, finish and the installed end form. A sample of the mating hole and assembled stack is often more useful than a standalone rivet sample because it shows how the shoulder is expected to seat.

Material and finish selection

The base material should be chosen for strength, corrosion exposure and compatibility with the mating parts. The silver finish is an appearance and surface requirement that must be defined separately, including the substrate and any required corrosion performance. If the part is used in an electrical or moving assembly, confirm that the selected finish and joint geometry are appropriate for that function.

How to specify a step rivet

  • Show the head, both shank diameters and the exact step location on the drawing.
  • Provide the mating hole sizes, stack height and required installed clearance.
  • State whether the joint is fixed, locating or intended to pivot.
  • Confirm material, silver finish requirement, quantity and inspection points.

FAQ

Is a step rivet the same as a shoulder screw?

No. A step rivet is a permanent or formed fastener, while a shoulder screw is normally threaded and removable. The choice depends on whether the assembly needs service access.

What is the most important dimension on a step rivet?

The step position and length are usually critical, together with the mating hole fit and overall grip. A correct overall length alone does not guarantee that the shoulder will seat correctly.

Can the silver finish be changed?

The finish can be reviewed against the drawing and application, but the base material and required corrosion or appearance performance should be confirmed first. Do not specify color alone without defining the substrate and finish process.
