Square-head screws with a square drive profile for controlled torque and period-style or industrial assemblies. Available in custom dimensions. The notes below focus on the features that need to be confirmed before a drawing is approved.
Square head and wrenching

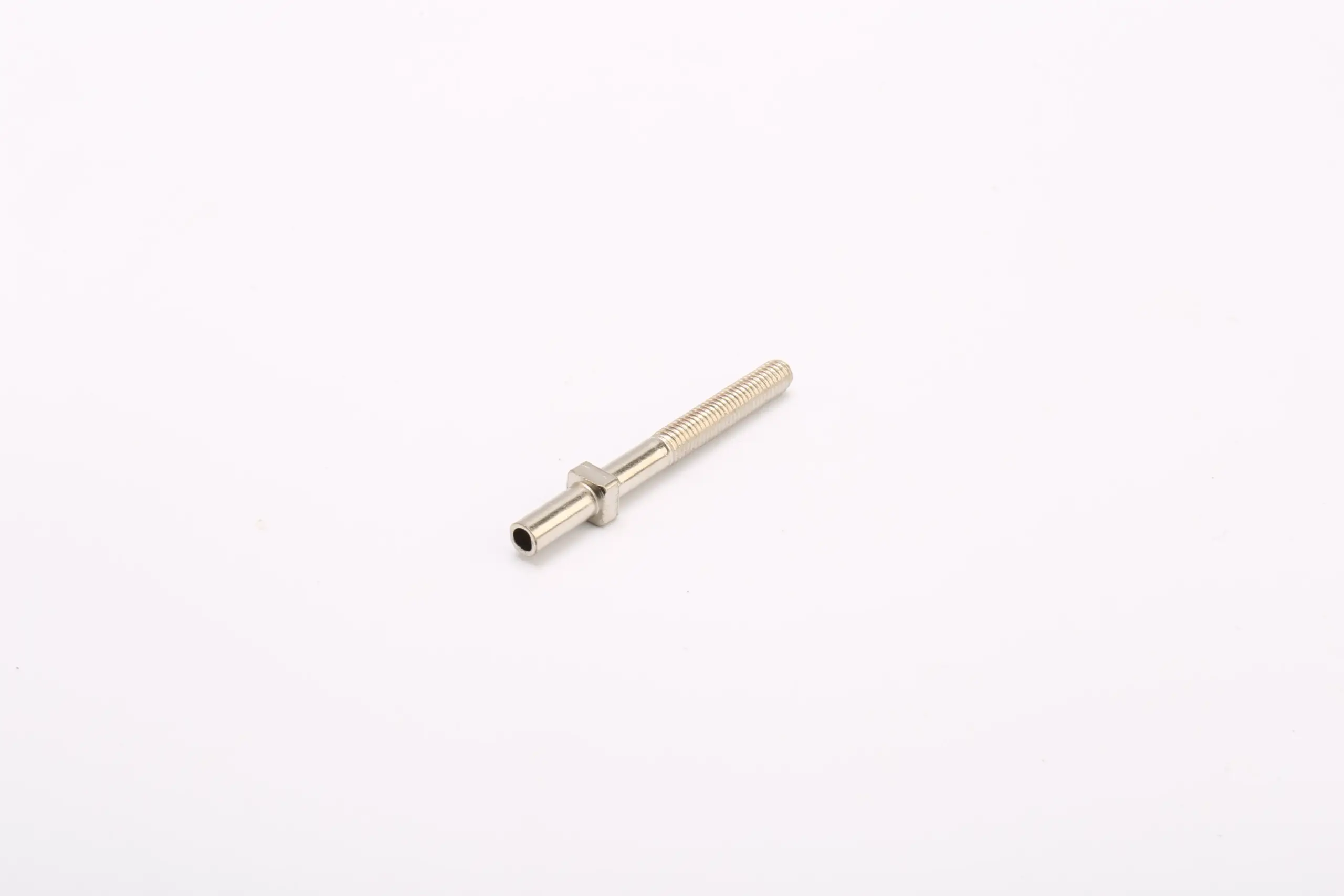

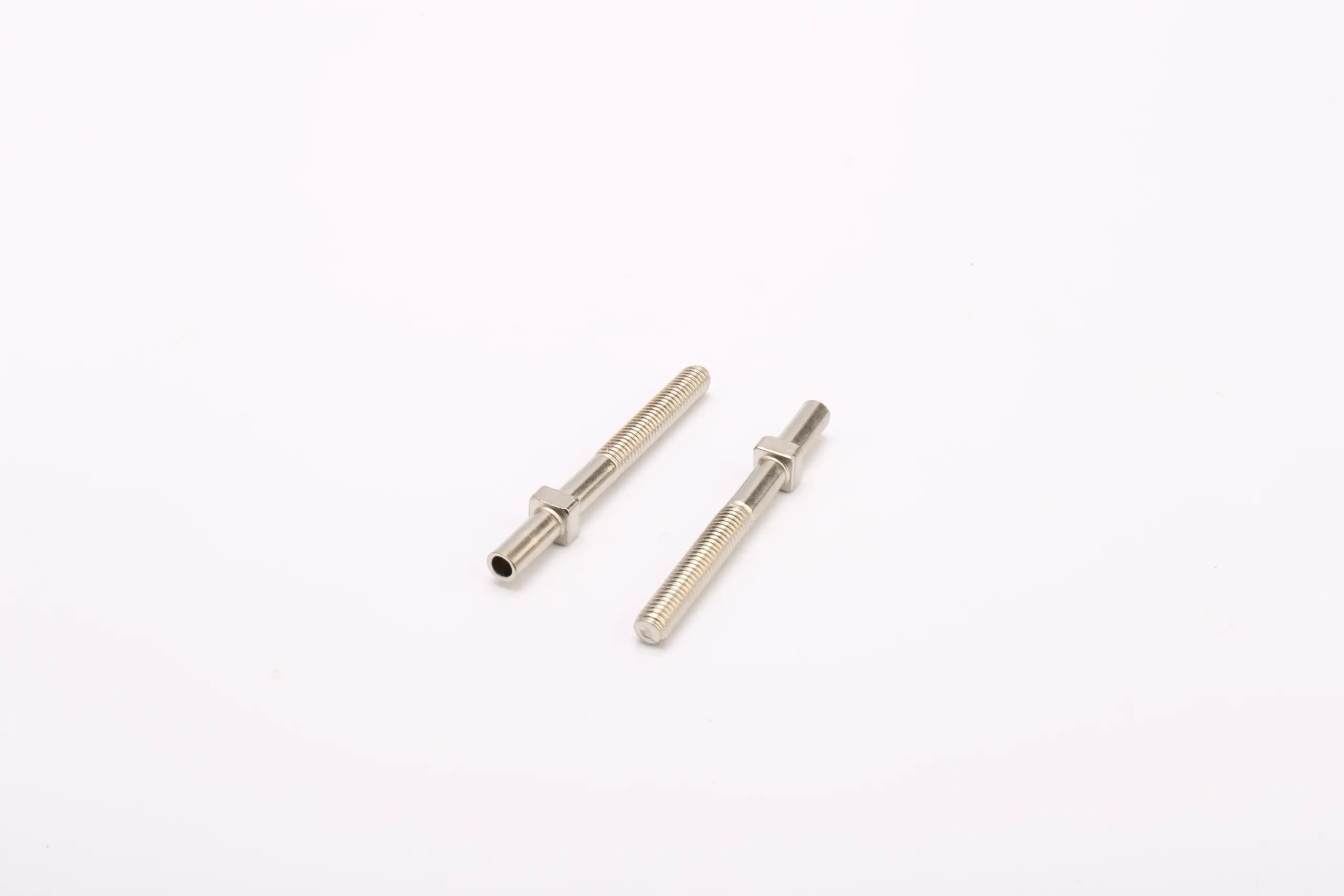

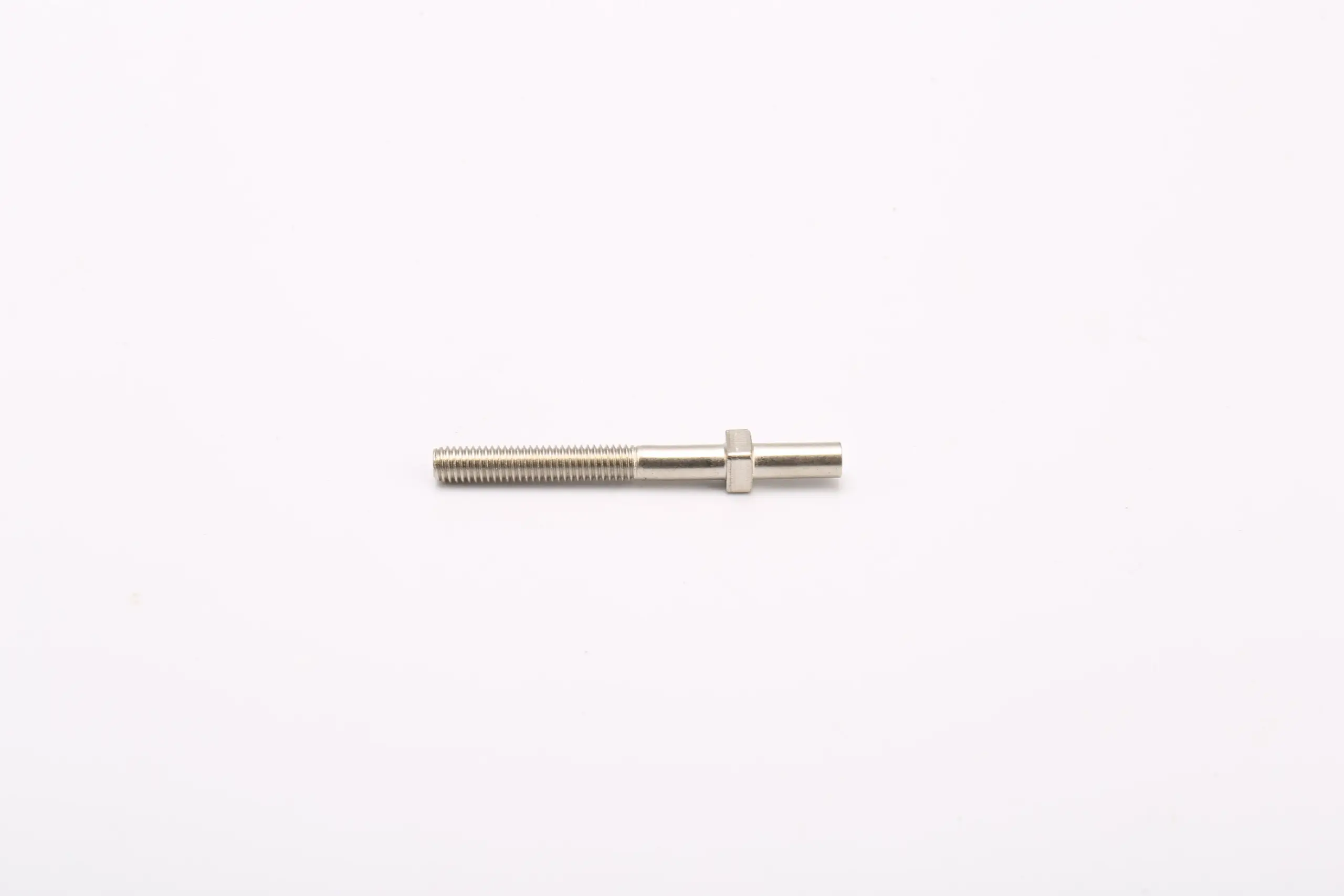

This square-head screw uses a four-sided head. The flat sides give a wrench a positive purchase and can make the head orientation visible, which is useful in industrial or period-style assemblies.
Begin with the interface that receives square head screws. The mating bore, panel or bracket establishes which surfaces locate and which clear. A dimension that is correct on the screw can still fail at that interface.
Thread and seating
Confirm the across-flats size, head height and corner radius, then check that the wrench can approach the head without touching adjacent parts. Specify the thread size, pitch and usable length, and identify the bearing face.
Use functional lengths for square head screws rather than overall length wherever possible. The distance from the seating face to the first thread, the length of a locating step and the depth of a bore all describe how the part behaves in the assembly.
Orientation and clearance
A square head may provide a larger bearing area than a compact drive, but the mating surface must be flat enough to avoid rocking. Confirm that nearby parts do not restrict the wrench or the final head position.
Define the assembly orientation for square head screws and the surfaces that must remain accessible. If the part can be installed in more than one direction, say how the correct orientation is recognized and whether the thread or a keyed feature prevents reversal.
Material and finish
State the material and finish separately. A dark or bright surface does not establish the grade. If the head remains visible, define the acceptable corner and surface condition.
When square head screws will see moisture, cleaning agents or a different metal, state the exposure rather than selecting a finish from color alone. Functional surfaces such as threads, bores and locating diameters may need different protection from cosmetic surfaces.
Inspection
Trial the screw in the actual assembly and confirm that the wrench has full engagement. Check that the head seats evenly and that the thread does not bottom before the bearing face contacts.
Production inspection of square head screws should follow the functions that control assembly. Check the locating features, the thread or bore and the seating face, then add the visible edge and surface checks that matter for the finished part.
FAQ
Is a square head the same as a square drive?
No. A square head is turned from the outside; a square drive is a recess or socket feature.
Can the head be oriented after tightening?
Only within the thread and seating arrangement. Do not assume that the final orientation can be set without a separate adjustment.
What is the main tool check?
Confirm the wrench size, full engagement and clearance to turn the head.
