Specifications

MaterialCopper
Size RangePer drawing / sample
Head TypePer drawing / sample
Thread or ShankThreaded shank
FinishCopper-toned finish
TolerancePer drawing / sample
Made to DrawingYes

Frequently asked questions

Can this part be produced to a drawing or sample?

Yes. A dimensioned drawing or stable sample provides the head, shank or thread, material and finish details reviewed before quotation.

What drawing information should be provided?

Show the functional dimensions, material, surface finish, quantity and any assembly or inspection requirement. Photos can support the review, but a dimensioned drawing or stable sample is preferred.

How are sample requirements handled?

Any prototype or sample requirement is confirmed during quotation after the drawing or sample has been reviewed.

How is the surface finish selected?

The finish is reviewed against the material, application, appearance and corrosion requirement shown on the drawing or sample.

Copper Screws

Copper screws with a copper-toned finish for electrical, decorative and general hardware applications. Produced to custom head, thread and length requirements.

Product Description

Copper screws with a copper-toned finish for electrical, decorative and general hardware applications. Produced to custom head, thread and length requirements. The notes below focus on the features that need to be confirmed before a drawing is approved.

Copper appearance and material

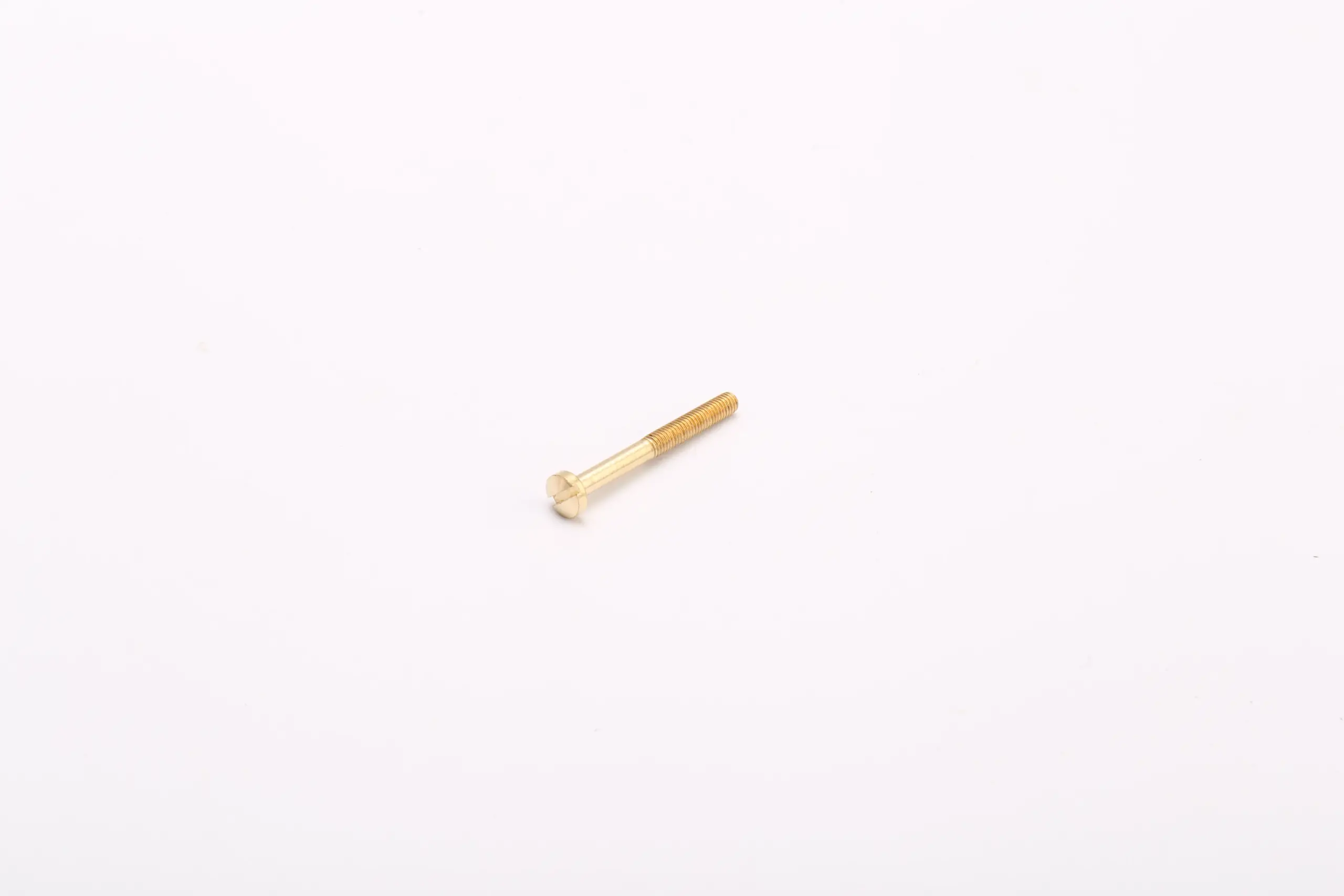

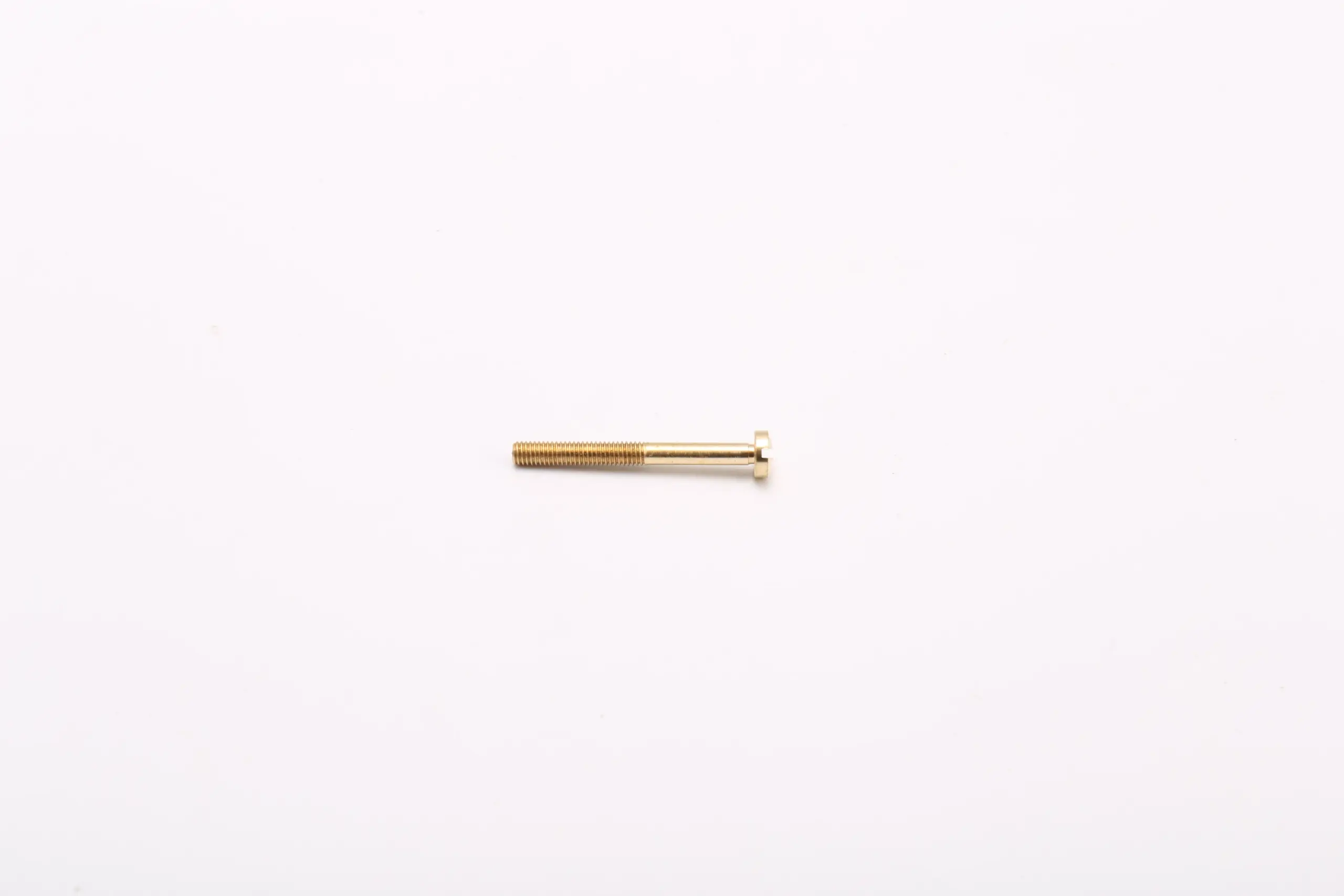

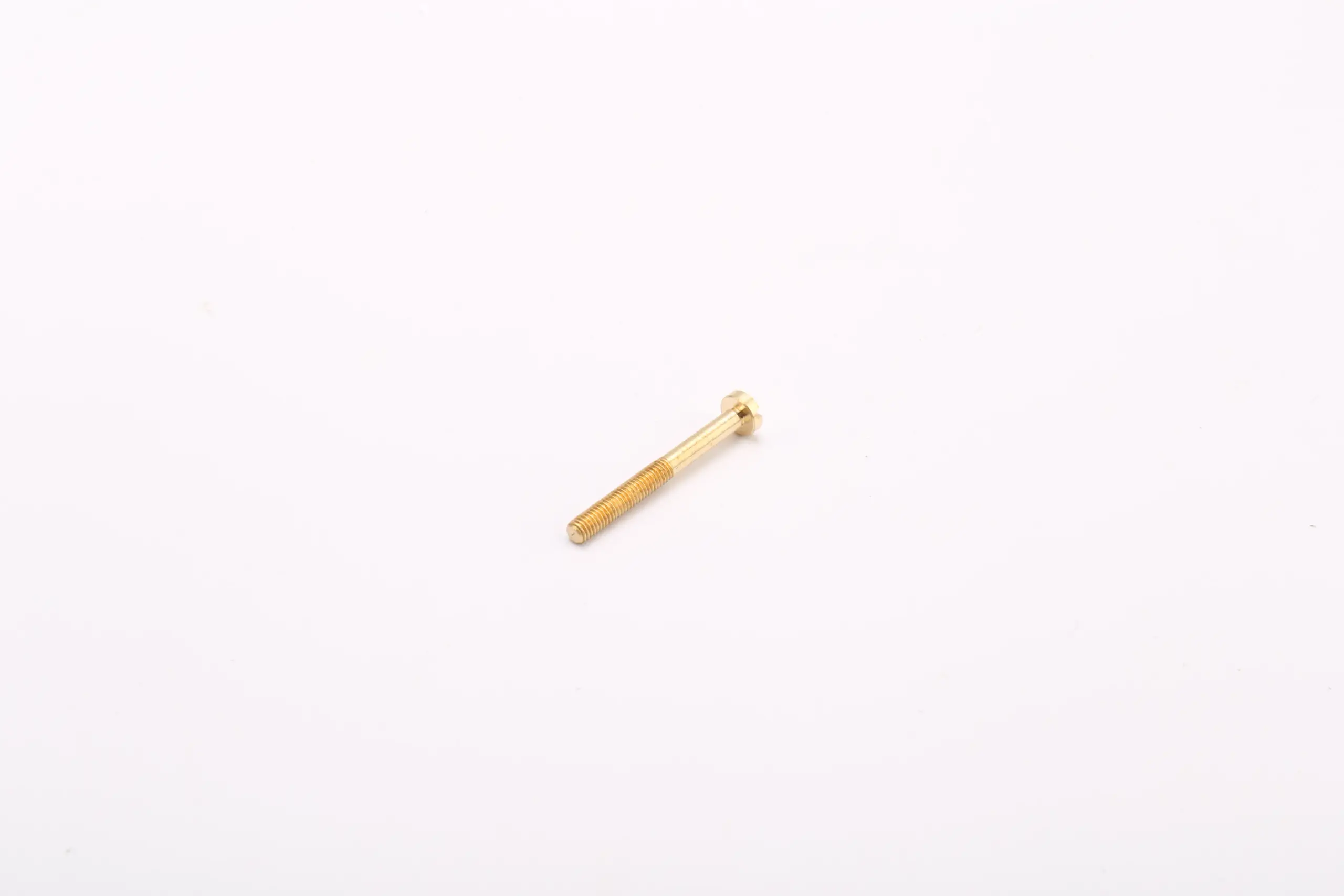

This copper screw has a copper-toned body with a drawing-defined head and thread. The warm color may come from the base material or a finish, so the actual copper alloy and surface treatment must be specified before the part is selected.

For copper screws, use the photograph only to identify the family. Mark the features that must be measured, the ones that may be visually compared and the surfaces that must remain free of damage in the approved drawing.

Head and thread

Show the head diameter and height, the thread size and length, and any shoulder or plain section. Identify the bearing face and the tool engagement. Do not assume a particular drive or head style from the word copper.

At every change of section on copper screws, decide whether the transition is a clearance, a locating fit, a spring point or a stress-sensitive area. The radius, chamfer and undercut should then be specified to match that function.

Electrical or decorative use

Copper or copper-colored parts may be used in electrical, decorative or general hardware assemblies. State whether the part is intended to carry current, provide a contact surface or simply match the appearance of nearby components.

For a part that will be serviced, check that copper screws can be released without damaging the mating component. A recessed drive, adhesive patch or locking feature can make removal harder than installation and should be reviewed at the same time.

Finish and handling

Confirm the alloy, temper and finish, plus any cleaning or handling requirement. A bare copper surface can change appearance with handling. If plated, check that the coating does not alter the thread or create a sharp edge.

Compare finish changes for copper screws against the approved sample under the agreed viewing condition. Record the surfaces where coating build-up, color variation, marks or edge coverage are acceptable, and keep that reference with the drawing revision.

Trial assembly

Trial the screw in the actual assembly. Check that the head seats, the thread engages and the finish remains intact at the bearing face. If the part is intended for electrical use, review the contact and corrosion requirements separately.

After the trial, protect the approved sample of copper screws from handling damage and keep it with the current drawing. Any process, material or finish change should be compared with that reference before the lot is released.

FAQ

Does copper color prove electrical conductivity?

No. The alloy, temper and surface condition must be specified for an electrical requirement.

Is a copper screw always pure copper?

No. It may be an alloy or a coated part. The drawing must state the material and finish.

What should be checked after plating?

Check the thread, bearing face and any visible surface for coating build-up or damage.
