Point and irregular outline
A pointed irregular screw is not a standard fastener with one extra tip. The point, head, shank and thread can each have a separate job, so the drawing should show which surface locates the part and which surface carries the seated load.

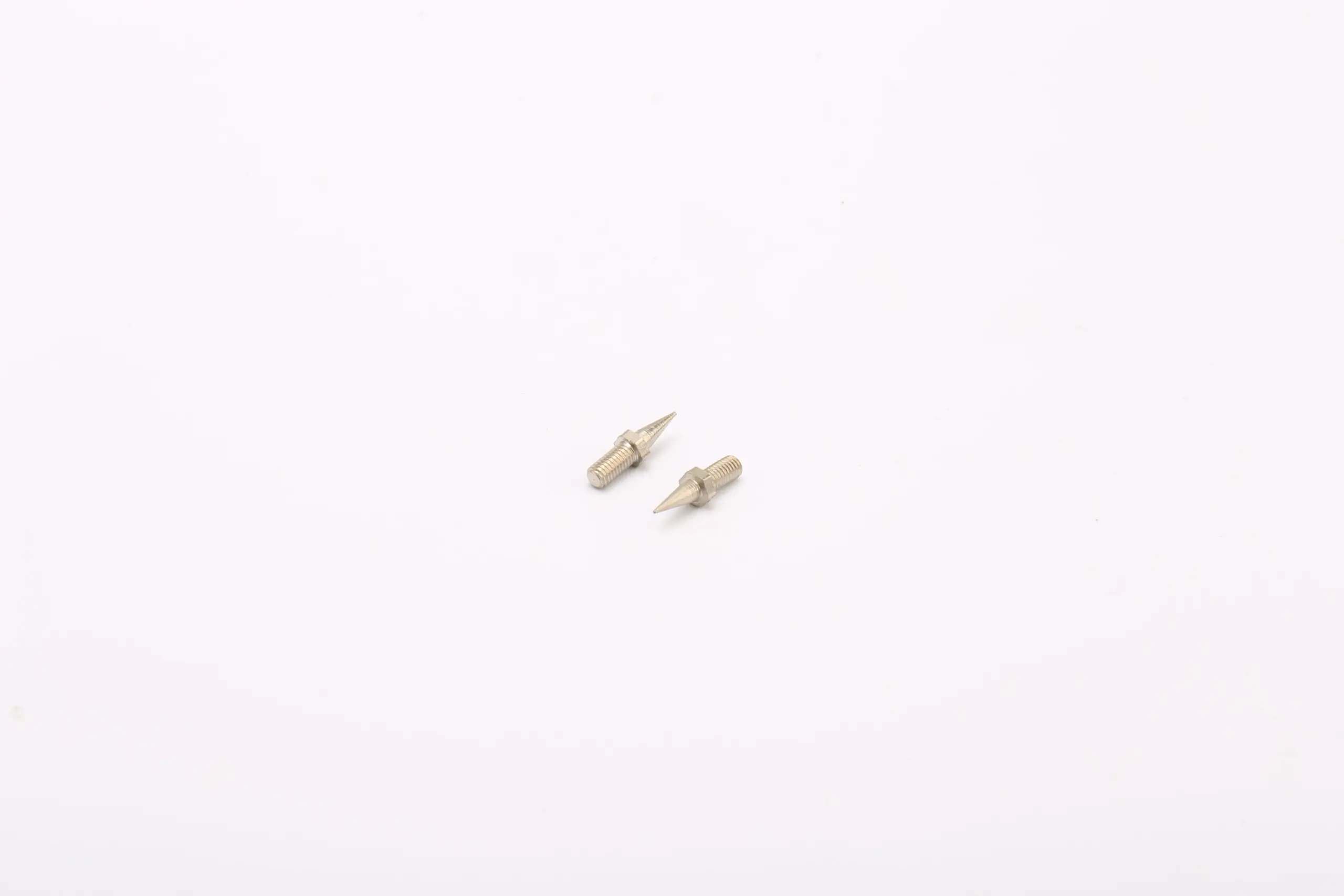

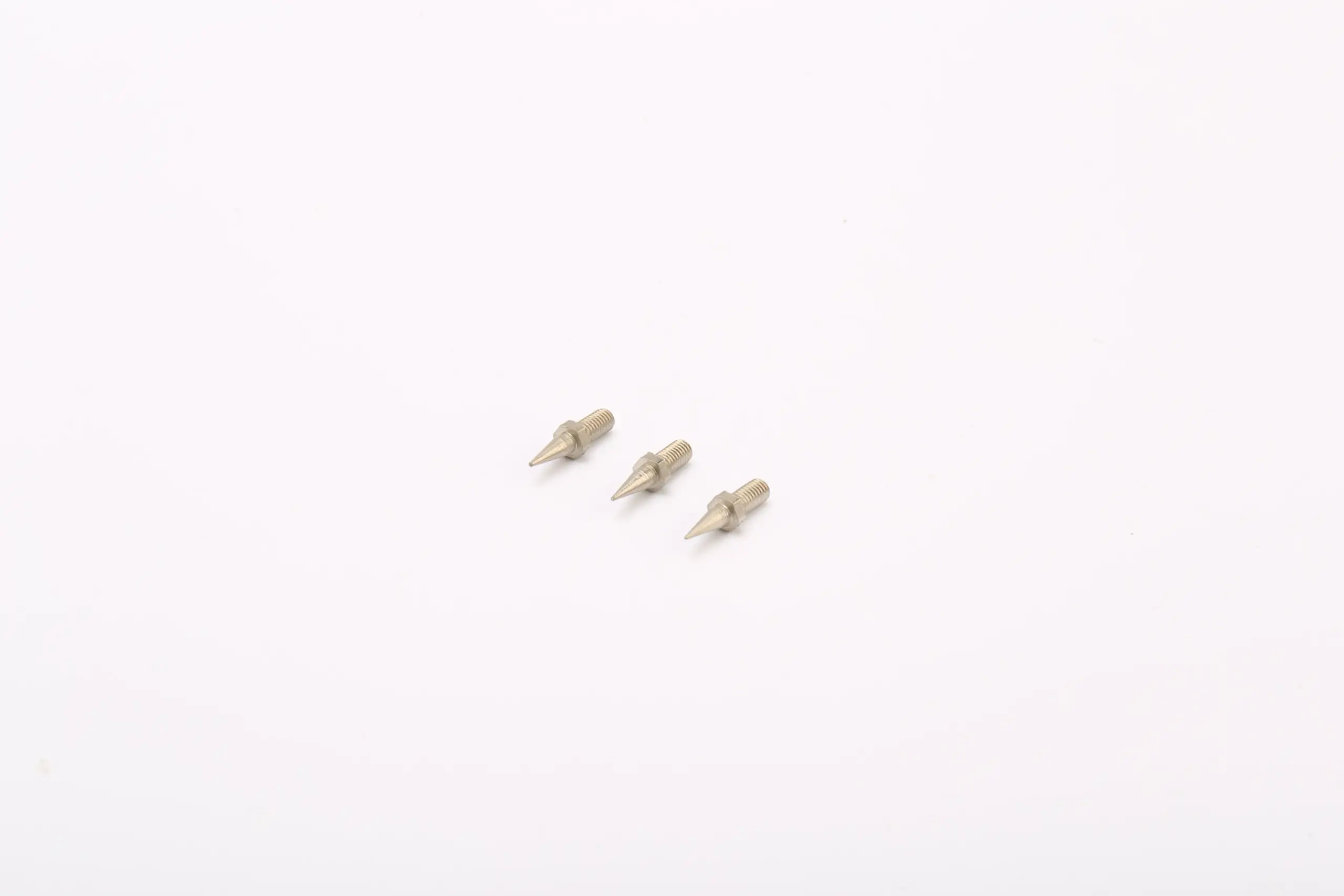

For pointed irregular screws, use the photograph only to identify the family. Mark the features that must be measured, the ones that may be visually compared and the surfaces that must remain free of damage in the approved drawing.
Thread and lead-in
Start with the mating hole and the first point of contact. The taper may guide the screw into position, but the drawing must still define the thread start, engaged length and any plain shank. A point that enters easily can still leave too little thread engagement if the lead-in is too long.
At every change of section on pointed irregular screws, decide whether the transition is a clearance, a locating fit, a spring point or a stress-sensitive area. The radius, chamfer and undercut should then be specified to match that function.
Tool approach
The tool must reach the drive after the point has started in the hole. Check the approach direction, the available rotation and whether the head is recessed or exposed. A narrow or deep pocket may prevent a straight approach even when the fastener fits the thread.
For a part that will be serviced, check that pointed irregular screws can be released without damaging the mating component. A recessed drive, adhesive patch or locking feature can make removal harder than installation and should be reviewed at the same time.
Material and finish
The color of a sample does not establish the alloy, coating or hardness. State the base material and finish, then identify whether the point is a wear surface, a locating surface or simply a lead-in. A finish that builds on the point can change how it enters.
Compare finish changes for pointed irregular screws against the approved sample under the agreed viewing condition. Record the surfaces where coating build-up, color variation, marks or edge coverage are acceptable, and keep that reference with the drawing revision.
Trial fit
Trial the part in the actual stack. Check that the point enters without forcing, the intended shoulder or head seats and the thread engages over the required length. Inspect the point and drive for burrs or deformation.
After the trial, protect the approved sample of pointed irregular screws from handling damage and keep it with the current drawing. Any process, material or finish change should be compared with that reference before the lot is released.
FAQ
Is a pointed irregular screw self-drilling?
No. The point is a lead-in or locating feature unless the drawing and application specifically establish a drilling function.
Can the point be shortened?
Only against a drawing that preserves the locating function, thread engagement and seating face. A shorter point changes the assembly.
What should be measured first?
Measure the point, the locating surface, the thread and the face that seats. Overall length alone does not define the fit.
