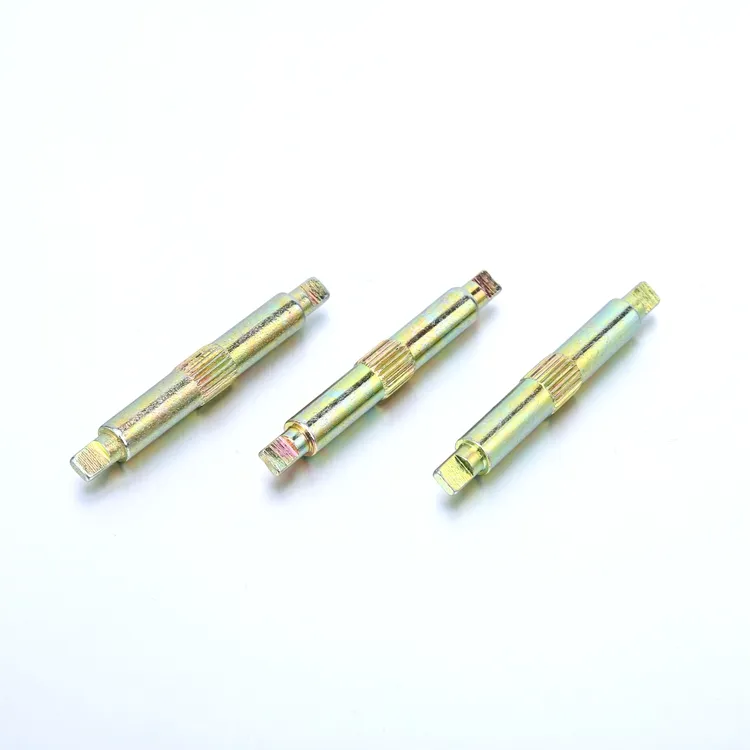

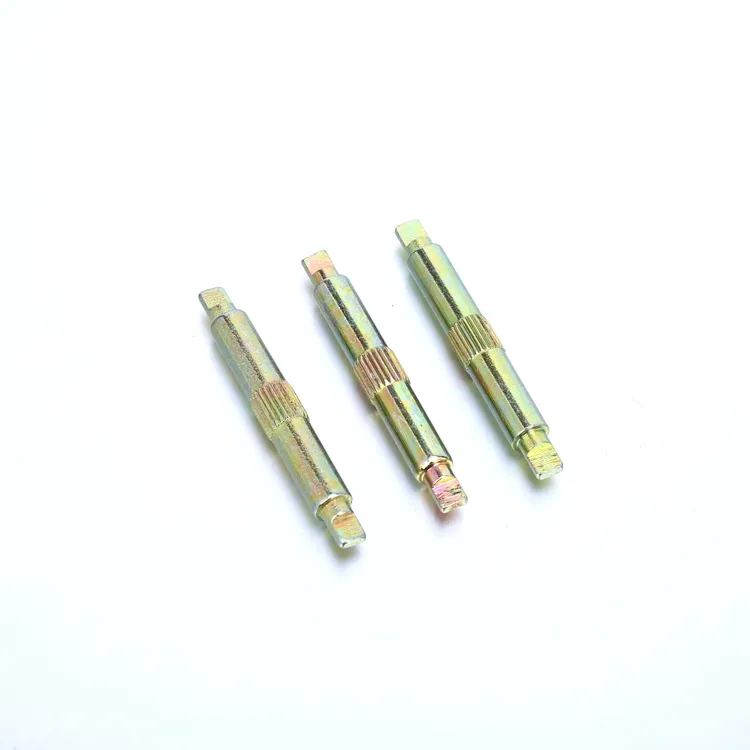

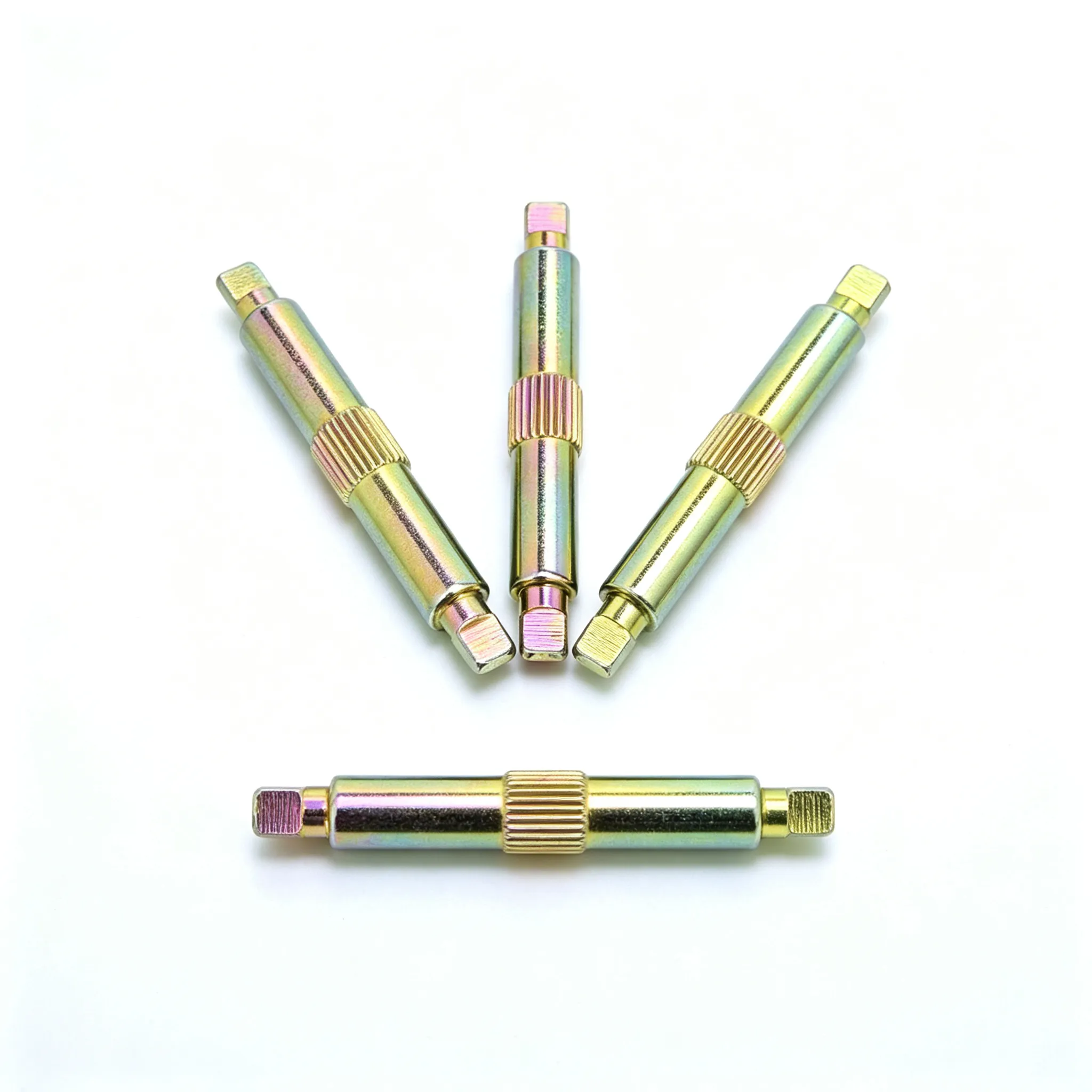

A customized knurled-head shaft combines a shaft with a knurled section that acts as a grip or head. The gallery shows a long body with a localized textured band, so the band position and the shaft ends should be defined together rather than treating the knurl as decoration.
Knurled head and shaft
The knurled section gives the fingers a place to grip or turn the shaft. It may be at one end or partway along the body. The drawing should identify the band width, pattern and distance from the reference end. The shaft may be plain, stepped or threaded, but those features must be shown separately.
Manual grip and equipment use
Knurled-head shafts can be considered for adjustment controls, small mechanisms, equipment handles and assemblies that need a hand-operated shaft. Check the access to the knurl after installation and the clearance around the shaft. If the part is turned, the mating bore and any end support should be reviewed.
Knurl placement and end conditions
A knurl that stops abruptly can leave a sharp edge or a burr. A small relief or chamfer at the band end may be needed. Specify whether the shaft ends are chamfered, threaded or plain. Do not assume that the knurled head is a structural head or that it can transmit a particular turning force.
Specification inputs
- Provide the shaft diameter, length and end forms.
- Show the knurl pattern, width and axial position.
- Identify the mating bore, grip access and retention method.
- State material, finish, quantity and inspection points.
Fit and inspection
Check the shaft for straightness and the knurl for torn crests. Trial-fit the part in its mating bore and confirm that the grip area remains accessible. Inspect the ends for burrs and verify the material and finish. The knurled surface should be evaluated as a handling feature unless a drive function is explicitly defined.
Confirm the knurled band is accessible after the shaft is installed. The grip should not be covered by a bracket or trapped against a seal, and the shaft should be supported so that hand pressure does not bend it. Check the band edges for burrs and the shaft ends for damage. If the part is turned, verify that the mating bore provides adequate guidance and that the knurl does not rub an adjacent surface.
FAQ
Is the knurled section a head?
It can act as a grip or head, but the function should be confirmed from the assembly drawing.
Can the knurl be at the end of the shaft?
Yes, if its position and end clearance are specified.
Does the shaft have a thread?
Only if the drawing shows one. The gallery does not establish a thread specification.
